Part #: 12512G-01

Model: H70-10

David Clark

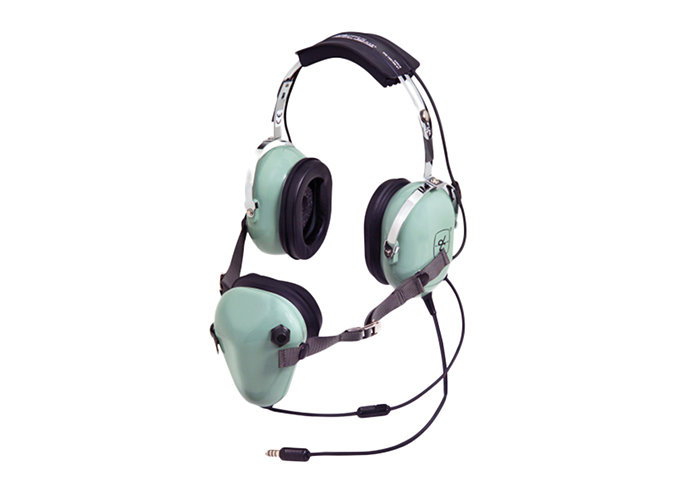

product image
Part Number :

Image result for dave clark logo



H70-10

FEATURES
  • H7010 is a Noise-Attenuating Two-Way Communication headset
  • Corrosion-resistant, chrome plated headpad/stirrup assembly
  • Noise-Cancelling 5-9ohm M-101 dynamic microphone
  • Noise-shielded microphone (muff) with On/Off switch
  • Snap-fastened nylon straps secure microphone muff to mouth
  • Foam-filled ear seals for maximum comfort
  • Straight cord with a U-174/U plug connect
  • Noise Reduction Rating (NRR): 26dB



SPECIFICATIONS

EARPHONE TYPE: Dynamic MICROPHONE: M-101 Dynamic
EARPHONE IMPEDANCE: 19 Ohms each; wired in parallel MIC SWITCH: On/Off
EARPHONE SENSITIVITY: 90 dB SPL on flat plate coupler, re 1mW input @ 1KHz MIC IMPEDANCE: 5 ohms +/- 20%
EARPHONE FREQUENCY RESPONSE: 100 – 5,500 Hz MIC SENSITIVITY: Non-amplified = .07 – 14mV @ 1khz for 103dB SPL input or Amplified = 400mV +/- 6dB into 150 ohm load @ 1kHz for 114dB SPL input
BOOM TYPE: Mic Shield Assembly Mic Freq Response: 300 – 3000Hz
Headpad: Soft comfort foam (ribbed) Comm Cord: 30 inch straight
Hardware: Chrome-platted, corrosion-resitant Plug Type: U-174/U
Ear Seals: Foam filled NRR: 26 dB
Part Number:  Description:
1251G-01 H7010 Ground Support Headset



12512G-01
- Military Headset

NSN: 5965-01-182-5727

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
