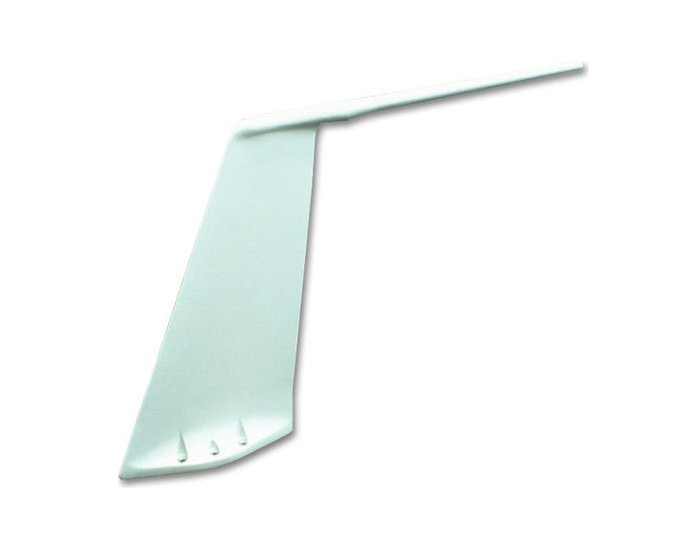

product image

Part #: VF10-347-2

Model: VF103472

OEM:

Dayton-Granger

Desc:

VHF Comm Antenna (TNC)

Part Number :


VF10-347-2
FEATURES
  • VHF/UHF communications antenna operating in 116-150 Mhz frequency ranges
  • Low profile, vertically polarized
  • Cast aluminum construcion
  • Higher MTBF (Mean Time Between Failure) than presently available fiberglass antennas
  • BNC Connector
  • A direct replacement for the Chelton 16-21B fiberglass antenna
  •  Aluminum/fiberglass construction
  • 50 ohms impedance
  • White polyurethane finish
  • Omnidirectional radiation pattern
  • 100 psi side load
  • Vertical polarization
  • 600 knot speed rating
  • 40 watt power



SPECIFICATIONS
Frequency:  116 - 150 MHz  VSWR: 2.5:1 @ 116-150
Impedance: 50 Ohms  Polarization: Vertical
Power: 40 Watts Radiation Pattern:    Omnidirectional
Connector: TNC Weight: 1.5 Lbs
Finish: White Polyurethane Height: 8.3"
Construction: Aluminum/Fiberglass Side Load: 100 psi
Vibration: 3G Shock: N/A
Temperature:   -62°C to +71°C Speed Rating: 600 Knots
Approvals: FAA TSO C37b, C38b     Direct Replacement for: Chelton 16.21T fiberglass

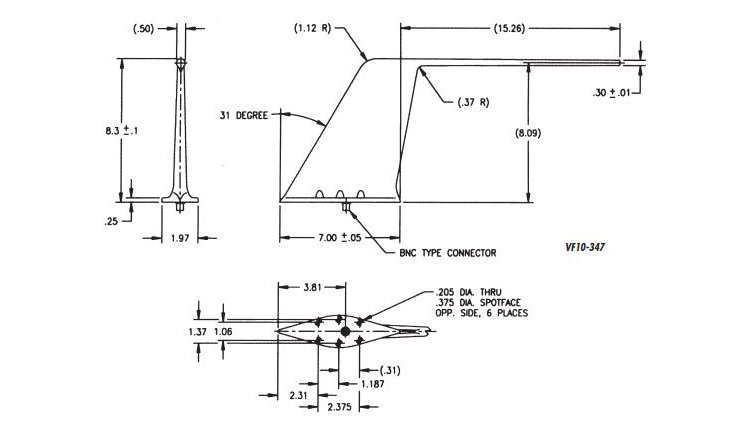

VF10347
VF10-347-2
- VHF Comm Antenna (TNC)
