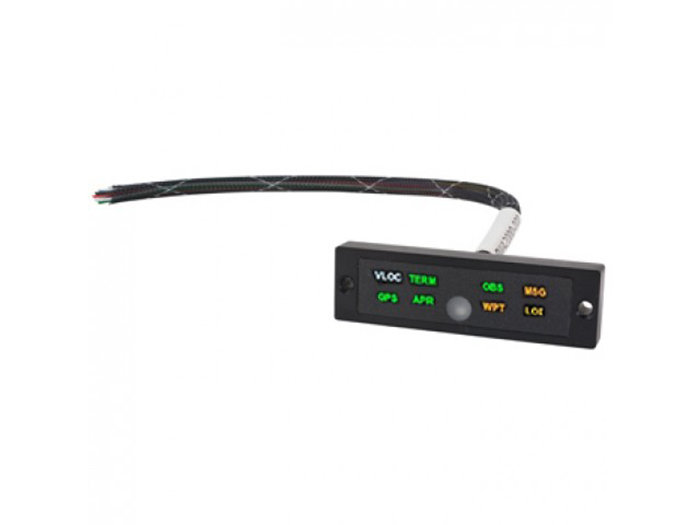

product image

Part #: DWA2000-000

Model: DWA2000

OEM:

Deklin

Desc:

WAAS GPS Annunciator

Part Number :

Home



DWA2000





FEATURES

  • Self-contained WAAS GPS Annunciator Panel for 14V and 28VDC aircraft
  • Displays annunciation status from GPS receivers that output discrete signals for remote annunciation purposes
  • Photocell and discrete dimming
  • Dual LED’s for each annunciator



SPECIFICATIONS

Voltage Rating:  500 VRMS Fuse / Circuit Breaker Rating: 0.5 Amps
Impedance: 50 ohms  Insulation Resistance: 5,000 MegOhms Min.
Operating Temperature: -55C to + 70C Survival Temperature:  -55C to + 85C
Humidity: 95% Current:  0.170 Amps Max (@ 27.5 VDC)
Weight:   2.0 oz Connector: 12 Pin DO-160E
Dimension: 2.50 w x 0.72 h x 0.35 thick Case Material:  Aluminum
Input Voltage: 11-33VDC



Part Number:  Description:
Dwa2000-000 BNC Tray Connector



DWA2000-000
- WAAS GPS Annunciator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
