Part #:

Model: CGR-30P

Electronics Intl.
product image
Part Number :
Image result for ELECTRonics international inc LOGO

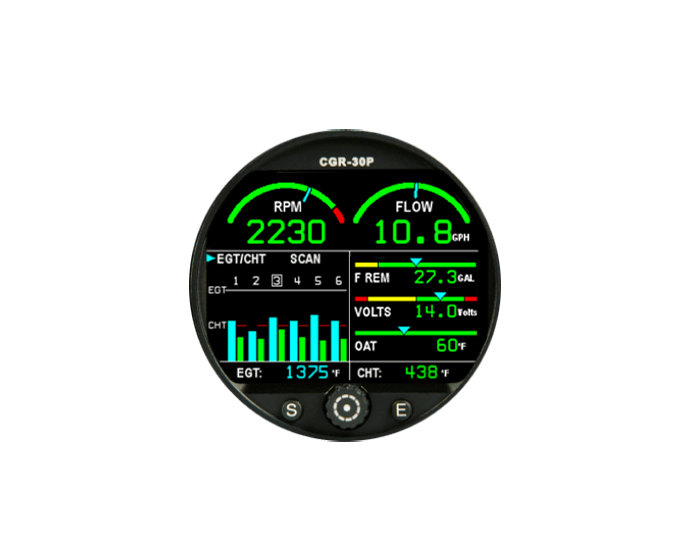

CGR-30P

FEATURES
  • The CGR-30P features a state-of-the-art, full-color bar graph to assist with ROP/LOP leaning
  • CGR-30P fits into your existing 3 1/8″ hole (remove your old tach).
  • Engine Data Converter (EDC) accepts all inputs. Only 2 wires run to the back of the instrument
  • All monitored functions are stored up to three times per second.
  • Up to 1,500 most recent flights stored, downloaded via a USB port
  • Allows you to remove your old engine instruments, including RPM, EGT/CHT, Fuel Flow, Volts, OAT
  • Displays ‘Estimated Fuel Remaining Based on Fuel Flow’
  • Displays ‘Fuel Used for Flight’ and ‘Since Last Fill-Up’
  • May enable you to extend your flight time using a number of fuel management tools
  • Ties into panel or yoke-mounted GPS
  • Displays distance and time to empty
  • The Fuel Data Screens provide six sets of data based on Fuel Flow and GPS information
  • Stores GPS data in its recorded flight log
  • Records all functions, every flight, up to 3 times per second
  • See potential issues before they become major problems
  • Easily chart recorded data using EGView software
  • Quickly download data with a USB flash drive
  • Allows you to download Flight Data to a USB flash drive and set the Data Sample Rate
  • Basic (B) package available and Premium (P) which includes up to 5 additional indicator functions

SPECIFICATIONS
DIMENSION: 3.25” x 3.25” x 4.45” Deep, 3 1/8” Flush Mount pOWER rEQUIREMENTS: 7.5 to 30 Volts, Typical: 0.2 amps @ 12 Volts
dISPLAY: Active Matrix, Sunlight Readable BACKLIGHT: Fully Dimmable for Night Flights
USB PORT: Data Download and Software Updates INTERNAL STORAGE: Up to 1,500 most recent flights stored. All monitored functions are stored up to three times per second. Recorded flight data can be easily downloaded via USB port
cERTIFICATIONS: FAA STC’d as Primary Replacement, FAA TSO’d to DO-160G, FAA DO-178 Level C,  Transport Canada Civil Aviation (TCCA) Validated STC, European Aviation Safety Agency (EASA) Validated STC

Part Number Description
CGR-30P-4-B Basic 4 Cylinder
cgr-30p-4-p Premium 4 Cylinder
Cgr-30p-6-b Basic 6 Cylinder
cgr-30p-6-p Premium 6 Cylinder
cgr-30p-7-b Basic 7 Cylinder
cgr-30p-7-P Premium 7 Cylinder
cgr-30p-9-B Basic 9 Cylinder
cgr-30p-9-P Premium 9 Cylinder
cgr-30-T-4 Twin 4 Cylinder
CGR-30-T-6 Twin 6 Cylinder
cgr-30-TC-4 Twin 4 Cylinder (2 CGR-30P, 1 CGR-30C)
CGR-30-TC-6 Twin 6 Cylinder (2 CGR-30P, 1 CGR-30C)





CGR-30-T-4
- Engine Monitor (4 cyl twin)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
CGR-30-T-6
- Engine Monitor (6 cyl twin)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
CGR-30-TC-4
- Engine Monitor (4 cyl, 2 CGR-30P, 1 CGR-30C)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
CGR-30P-4-B
- Engine Monitor (4 cyl basic)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
CGR-30P-4-P
- Engine Monitor (4 cyl premium)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
CGR-30P-6-B
- Engine Monitor (6 cyl basic)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
CGR-30P-6-P
- Engine Monitor (6 cyl premium)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
CGR-30P-7-B
- Engine Monitor (7 cyl basic)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
CGR-30P-7-P
- Engine Monitor (7 cyl premium)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
CGR-30P-9-B
- Engine Monitor (9 cyl basic)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
CGR-30P-9-P
- Engine Monitor (9 cyl premium)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
