Model: MVP-50T

Electronics Intl.
product image
Part Number :
Image result for ELECTRonics international inc LOGO

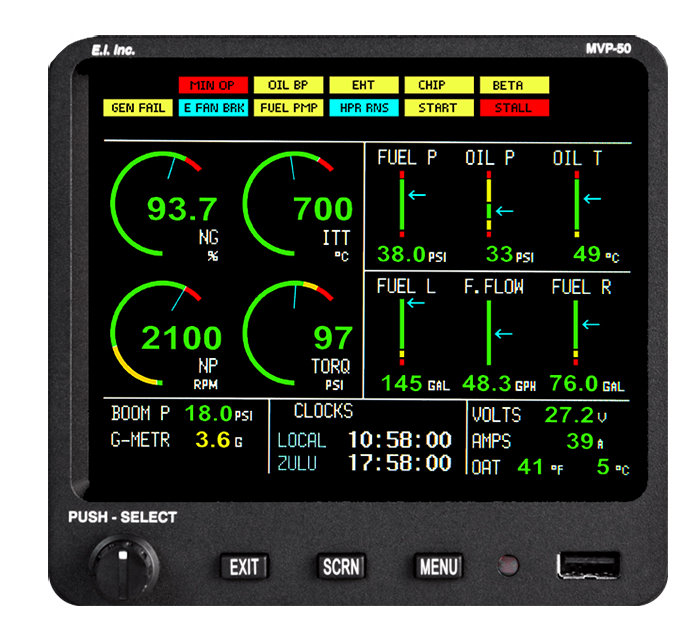

MVP-50T

FEATURES
  • The MVP-50T allows you to remove old engine instruments: NG, NP, ITT, Torque, Fuel Level, Oil Pressure and many more
  • Engine Data Converter (EDC) accepts all inputs from probes & transducers. Only 2 wires run from the EDC to the back of the MVP-50T
  • The MVP-50T mounts flush with the panel creating a clean panel look and feel
  • An Engine Data Converter (EDC) accepts all inputs. Only 2 wires run to the back of the instrument
  • Up to 1,500 most recent flights stored, downloaded via USB
  • All monitored functions are stored up to three times per second
  • Adjust K Factor
  • Fuel Level Data displays fuel level in each of the tanks
  • Fuel Flow Data is calibrated with the K Factor
  • GPS syncing assists with fuel remaining until next waypoint
  • Fuel reserve information assists the pilot with calculating critical fuel levels
  • Features up, down, and flight timers with built-in alarm capability
  • Displays the current date, local time, zulu time, tach time, and engine hours
  • Assists pilots with performing the weight and balance calculation for the aircraft
  • Experimental and Certified (TSO, STC) versions available

SPECIFICATIONS
dIMESIONS: 5.55″ W x 5.15″ H x 2.4″ D, Flush Mount POWER REQUIREMENTS: 7.5 to 30 Volts, Typical: 0.2 amps @ 12 Volts, 0.1 amps @ 24 Volts
WEIGHT: 1.9 Pounds (Instrument Only) DISPLAY: Active Matrix, Sunlight Readable
BACKLIGHT: Fully Dimmable for Night Flights USB PORT: Data Download and Software Updates
iNTERNAL STORAGE: Up to 1,500 most recent flights stored. All monitored functions are stored up to three times per second. Recorded flight data can be easily downloaded via USB port. CERTIFICATIONS:

FAA STC’d as Primary Replacement, FAA TSO’d to DO-160G, FAA DO-178 Level C, Transport Canada Civil Aviation (TCCA) Validated STC, European Aviation Safety Agency (EASA) Validated STC

Part Number Description
mvp-50t-PT6 P&W PT-6 Turboprop Package (Experimental)
MVP-50T-W Walters Turboprop Package (Experimental)
MVP-50T-G Garrett Turboprop Package (Experimental)
MVP-50T-L Lycoming Turboprop Package (Experimental)
MVP-50T-A Allison Turboprop Package (Experimental)
mvp-50t-j85 GE J85 Jet Engine Package (Experimental)
mvp-50t-L39 L39 Aircraft Package (Experimental)
mvp-50t-WJ33 Williams J33 Jet Engine Package (Experimental)
MVP-50T-PT6-C P&W PT-6 Turboprop Package (Certified)
mvp-50t-W-C Walters Turboprop Package (Certified)
MVP-50T-G-C Garrett Turboprop Package (Certified)
MVP-50T-l-C Lycoming Turboprop Package (Certified)
MVP-50T-A-C Allison Turboprop Package (Certified)
MVP-50T-J85-C GE J85 Jet Engine Package (Certified)
MVP-50T-WJ33-C Williams J33 Jet Engine Package (Certified)
MVP-50T-Twin-c Twin Engine Package (Certified)







MVP-50T-A
- Engine Monitor (Exp, Allison Turboprop)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
MVP-50T-A-C
- Engine Monitor (Certified, Allison Turboprop)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
MVP-50T-G
- Engine Monitor (Exp, Garrett Turboprop)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
MVP-50T-G-C
- Engine Monitor (Certified, Garrett Turboprop)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
MVP-50T-J85
- Engine Monitor (Exp, GE J85 Jet)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
MVP-50T-J85-C
- Engine Monitor (Certified, GE J85 Jet)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
MVP-50T-L
- Engine Monitor (Exp, Lycoming Turboprop)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
MVP-50T-L-C
- Engine Monitor (Certified, Lycoming Turboprop)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
MVP-50T-L39
- Engine Monitor (Exp, L39 Aircraft)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
MVP-50T-PT6-C
- Engine Monitor (Certified, PT-6)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
MVP-50T-Twin-C
- Engine Monitor (Certified, Twin-Engine Package)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
MVP-50T-W
- Engine Monitor (Exp, Walters Turboprop)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
MVP-50T-W-C
- Engine Monitor (Certified, Walters Turboprop)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
MVP-50T-WJ33
- Engine Monitor (Exp, Williams J33 Jet)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
MVP-50T-WJ33-C
- Engine Monitor (Certified, Williams J33 Jet)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
