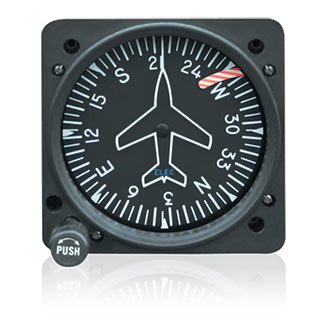

Picture of product 205-7BL

Part #: 505-0031-930

Model: 205-7BL


Extant Aerospace


Directional Gyro

Part Number :

AIM 205

  • Directional Gyro
  • Azimuth motions of the aircraft indicated on the circular vertical dial, graduated in 5° increments
  • 3" bezel mounted from the front or rear in shock-mounted panels
  • Input power options: 14VDC or 28VDC
  • Includes failure warning flag that displays if primary power drops below a preset value
  • Integral lighting optional
  • Optional bootstrap output also available
  • TSO C5c and TSO C5e
Dimensions: 7.60"L x 3.38"H x 3.38"W (Side Rear Mount, unlit 205-1A, -1D, -1B) 8.02"L x 3.38"H x 3.38"W (Side Rear Mount, lit 205-1AL, -1BL, -1BLF, -1BLD, -1BLR) 8.02"L x 3.50"H x 3.50"W (Side Bezel Mount, unlit 205-1BF) Weight: 3.2 lbs. maximum
Part NumberDirectional Gyro Description:
505-0031-9XX Part Number Chart


- Directional Gyro
Price Condition Status

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
