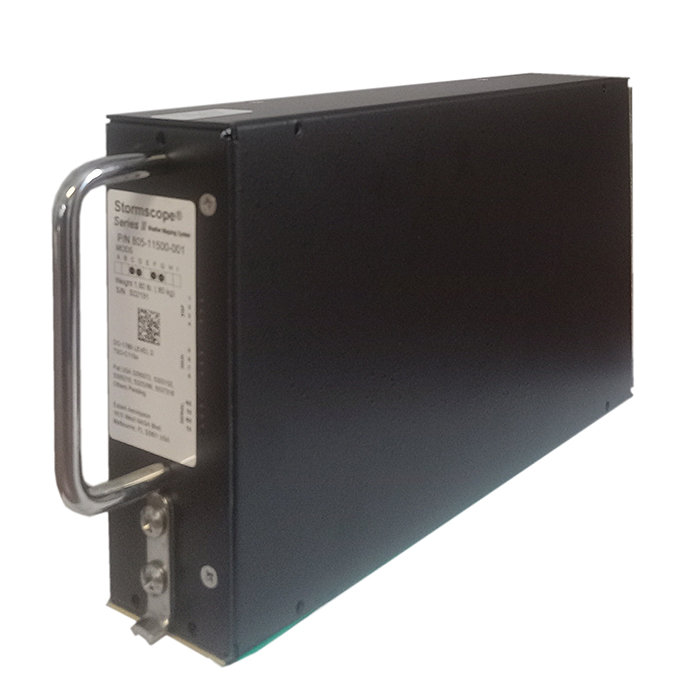

Picture of product WX-500

Part #: 805-11500-001

Model: WX-500

NSN:

5999-01-533-8554

OEM:

Extant Aerospace

Desc:

Stormscope Processor

Part Number :



Part Number: Description:
805-11500-001 Stormscope Processor





Serial # S02381
Condition NEW
Mods -
Tag Date 08/30/23
Shop Extant Aerospace
Warranty 1 Year
805-11500-001
- Stormscope Processor

NSN: 5999-01-533-8554

Price Condition Status
$17,750.00 NEW OUTRIGHT 1 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Because Stormscope weather mapping systems detect electrical discharge activity, antenna placement relative to other active electrical components is critical. The antenna must be placed at a location that is free from excessive electrical interference. The ideal location varies for aircraft to aircraft. To ensure an interference-free antenna location, every aircraft must be skinmapped prior to installation of the Stormscope antenna. The skinmap must be done with the engines and all electrical systems operating. The Stormscope requirement for an antenna ground plane and a noise free environment complicates installation in aircraft with wood, fabric, or composite construction. Each aircraft needs to be analyzed individually for best antenna location. Avoid mounting the antenna near active electrical components whenever possible. General clearance guidelines are: - Strobe lamps and power supplies 5 ft. (1.5 meters) - Pitch trim servos and amplifiers 3 ft. (1 meter) - Fluorescent lamps and ballasts 5 ft. (1.5 meters) - Heater ignitors 5 ft (1.5 meters) - Air conditioner and heater blowers - DME/Transponder/TCAS antennas 4 ft. minimum (1.2 meters) - Inflight telephone antennas 4 ft (1.2 meters) - VHF comm antennas 1 ft. (.3 meters) - ADF antennas 1 ft. (.3 meters) - Any current carrying cable 2 ft. (0.6 meters) Stormscope sensors are adversely affected by the build up of static charges. Do not mount the antenna near any composite materials (e.g. plastic covers, radomes, fiberglass housings, windows, etc.) as these devices can build up static charges. Avoid mounting the antenna in the ground return current path between the battery and alternator, and the battery and blower motors of other heavy current carrying equipment. Aircraft skin currents may cause antenna interference.
Under certain conditions, the Garmin 400W/500W series units will not provide serial heading information to the L3 WX-500 Stormscope. Even if the WX-500 unit is wired for synchro heading, there may be issues with the WX-500, GDL-69 datalink, and crossfill between two Garmin units. Also, some issues have been encountered with the COM flip/flop key not switching between the active and standby frequencies. As of 8/20/07, Garmin plans to resolve these issue with the next software release. The software upgrade should be able to be completed at your local Garmin authorized facility.
The WX-SM Skinmapper and WX-PA Portable Analyzer are required to properly install the WX-500.

The WX-SM Skinmapper is required to verify the ideal location for the WX-500 antenna. The antenna must be installed in a location on the aircraft that is free from electrical interference. The ideal location varies on each aircraft. The skinmapping must be performed with all engines and electrical systems operating.

The WX-PA Portable Analyzer is required to test the system after installation. The WX-PA analyzes the accuracy of strike and heading information for the stormscope system.
No, the flight manual supplement from the manufacturer of the display being used to display the Stormscope information is used instead.
