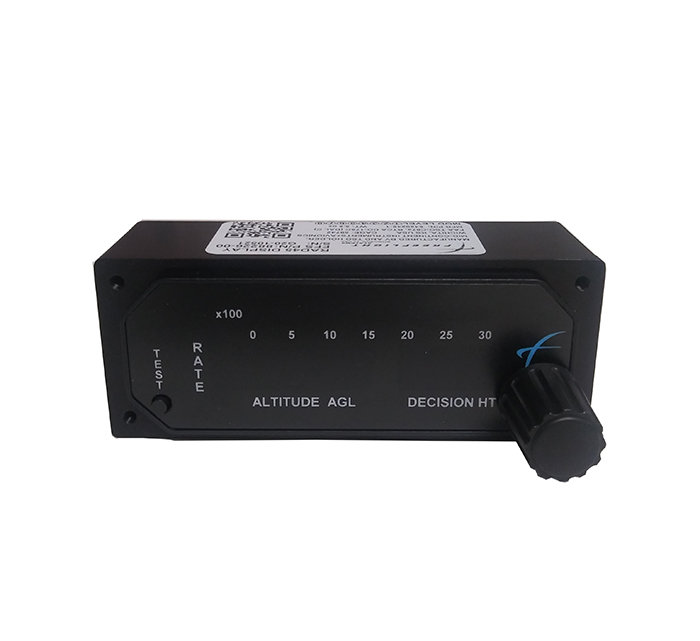

product image

Part #:

Model: RAD-45

OEM:

FreeFlight

Desc:

Radar Altimeter Display

Part Number :





RAD-45





FEATURES

  • Provides critical inflight information to the pilot important when there are no visual clues to the landscape surrounding the airport or the flight path
  • Panel-mount display; programmable via USB or micro SD card
  • Compatible with the complete line of FreeFlight Systems’ Radar Altimeters: the RA-4000, RA-4500, and FRA-5500
  • The pilot is able to set a decision height (DH), and when the preset altitude is reached, a DH LED is illuminated a DH output is set
  • Activate five trip-point discrete outputs (100-1000 ft.)
  • RAD-45 is available as night vision goggle (NVG) compatible display
  • TSO-C87
  • ETSO-C87
  • DO-160G
  • RS-485/422
  • ARINC 429
  • AGL Readout
  • Trend Indicator Readout





SPECIFICATIONS

DIMENSIONS: Width 3.5", Depth 2.3", Height 1.4" WEIGHT: 0.6 lbs.
power requirements: 9-36 VDC, 0.5 A at 28 VDC operating temperature: -20°C to +55 °C
dh alert: Internal DH LED and external discrete output self test: Lights al "8s" for LEDs and activates the DH LED
service calling: 50,000 ft. decision height selection: 10 ft. increments up to 200 ft, 50 ft. increments from 200 ft. to 950 ft.

Part Number: Description:
88226-00 Radar Altimeter Display, White Lighting
88226-10 Radar Altimeter Display, NVIS B Lighting









88226-00
- 6420245-1 Radar Altimeter Indicator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
88226-10
- 6420245-2 Radar Altimeter Display (NVIS B)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
