Model: G7534

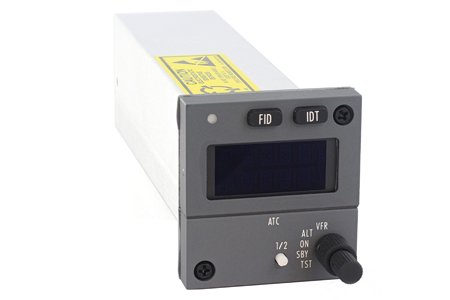

Gables - MODE S TRANSPONDER CONTROL HEAD
Part Number :



G7534



FEATURES

  • ATC/TCAS with FID Control Panel (Mode S / ADS-B Control)
  • Designed specifically to replace the Honeywell KFS-578 Control Panel
  • Provides control of TCAS computer(s), transponder(s) and Flight ID computer(s)
  • Tuning of the TCAS & Flight ID is accomplished via a dedicated low speed digital data bus conforming to ARINC 429 specs
  • Electrical interface for the system interface consists of two low-speed ARINC 429 receivers and one low-speed SRINC 429 transmitter with various input/output (I/O) discretes
  • An Emergency mode is provided which is enabled through a rear connector discrete
  • Panel is equipped with a built-in test function
  • Located in the front panel display window are annunciators "ATC", "1", "2", "FID" and "RPLY"
  • Back-lighting of the front panel display and the panel lighting can be adjusted and controlled through software control via the dimming buses or a light sensor located on the front panel
  • Three pushbuttons are located on the front panel labelled "1/2", "MODE" and "IDT"



SPECIFICATIONS

Dimensions: 2.094" W x 2.5" H x 5.50" L  Weight: 1.1 lbs
power requirements: Control Panel, Annunciators, LCD 28 VDC @ 7 Watts (maximum), Backlighting, Light Plate Panel Lighting: GEI Lighting Spec. Document A40810
temperature: Operating: -20°C to +70°C, Storage: -55°C to +85°C mounting: 2 modified round head phillip screws, washers and hex nuts
TSO: C112, C118, C119b, ETSO-2C112a, ETSO-C118, ETSO-C119b
Part Number: Description:
G7534-1005 Mode S/ADS-B Control Head, Gray
G7534-1006 Mode S/ADS-B Control Head, Black




G7534-1005
- Mode S/ADS-B Control, Gray
