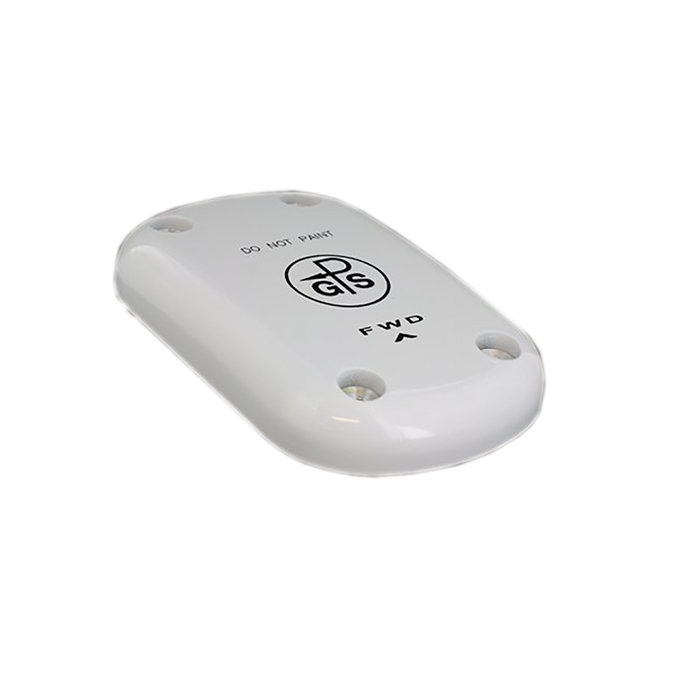

Part #: 013-00244-00

Model: GA-36

NSN:

5985-01-569-6671

OEM:

Garmin

Desc:

GPS/WAAS Antenna

Part Number :


GA 36
FEATURES
  • GPS/WAAS Antenna
  • Frequency Range: 1575 + 10 MHz
  • ARINC 743 footprint



SPECIFICATIONS
Weight: 0.47 lbs Frequency Range: 1575 + 10 MHz
Gain: 27 + 0.5 dB @ +25°C nominal and + 2.0 dB over temperature with respect to nominal Noise Figure: 2.5 dB max over temperature
Nominal Output Impedance: 50 ohms Supply Voltage: 4.5 VDC + 0.5 VDC
Supply Current: 60 mA max Output Connector: TNCF
Environmental: TSO575-93G Certification: TSO C144
Part Number: Description:
013-00244-00 GPS/WAAS Antenna





TSO C144
Serial # 26716
Condition NEW
Mods -
Tag Date 12/09/22
Shop Garmin
Warranty 1 Year
Serial # 22208
Condition NEW
Mods -
Tag Date 01/27/20
Shop Garmin
Warranty 1 Year
013-00244-00
- GPS/WAAS Antenna

NSN: 5985-01-569-6671

Price Condition Status
$420.00 NEW OUTRIGHT 2 IN STOCK
