Part #: 011-04048-00

Model: GCU-479

Garmin

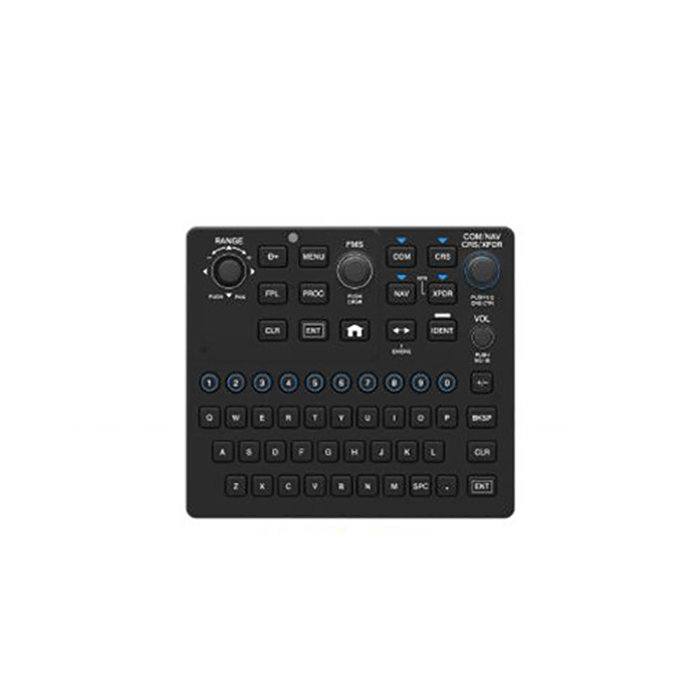

product image
Part Number :

GCU-479 FMS

FEATURES
  • GCU275/47X/485 refers to the Garmin Flight Management System (FMS) Controller used in a Garmin Integrated Flicght Deck
  • Provides heading, altitude, barometric pressure, indicated airspeed, , and AFCS intergration fuctions
  • The GCU-479 provides course and volume controls
  • COM/NAV tunning capabilities
  • The GCU-479 mounts flush to the aircraft instrument panel using two pawl latches
SPECIFICATIONS
WIDTH: 6.25 inches (158.8 mm) DEPTH W/CONNECTOR KIT: 3.18 inches (80.7 mm)
HEIGHT: 5.55 inches (141.0 mm) UNIT WEIGHT W/OUT CONNECTOR KIT: 1.2 lbs (0.54 kg)
UNIT WEIGHT WITH CONNECTOR KIT: 0.7 lbs (0.32 kg) MOUNTING HARDWARE: N/A
Power consumption: 172 mA @ 14V, 88 mA @ 28V OPERATING TEMPERATURE RANGE: -45° to +70°
humidity: 95% non-condensing ALTITUDE RANGE: -1,500 ft. to 55,000 ft.
Part Number Description
011-04048-00 FMS Controller





011-04048-00
- FMS Controller
Price Condition Status
REQUEST SV EXCHANGE REQUEST
