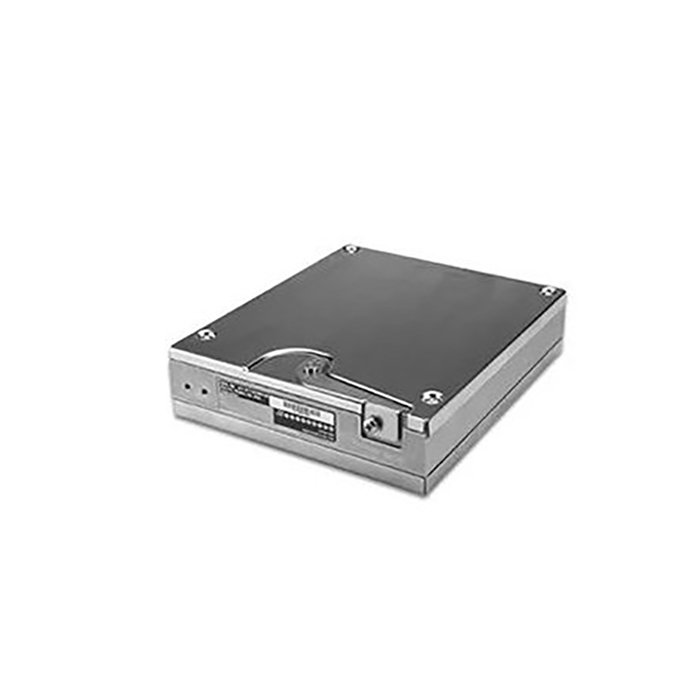

Picture of product GDL-88DH

Part #:

Model: GDL-88DH

OEM:

Garmin

Desc:

Datalink Transceiver

Part Number :



GDL-88DH



FEATURES

  • Remote Mounted unit including 978 MHz UAT, 1090 MHz receiver and 1030 MHz transmitter
  • Transmits ADS-B data via UAT data link
  • Receives data from other UAT and 1090ES equipped aircraft and outputs to display
  • Utilizes RS-232, RS-422, ARINC 429, Garmin HSDB and discrete inputs/outputs to communicate with other LRUs and systems on aircraft
  • Antenna diversity (D) model
  • Ruggedized design for high vibration environment



SPECIFICATIONS

Weight:  4.10 lbs. Dimensions: 6.55” H x 1.75” W x 7.65” D
Operating Temp:  -45C to 70C altitude: 55000 ft (max)
Input Voltage:  9-33 VDC  CHANNELS: 12 GPS, 3 GPS/SBAS



Part Number: Description:
010-00861-E0     Standard Kit Part Number
011-02371-10     ADS-B Data Link System w/ Diversity
011-02372-10 ADS-B Data Link System w/ Diversity, with GPS/SBAS







010-00861-E0
- ADS-B UAT Data Link Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-02371-10
- Datalink Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-02372-10
- Datalink Transceiver
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
