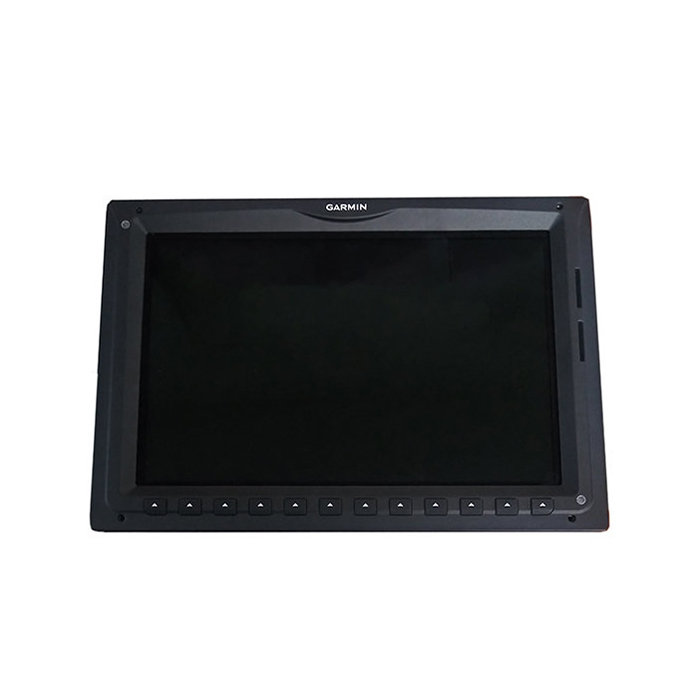

product image

Part #: 011-02333-00

Model: GDU-1200W

OEM:

Garmin

Desc:

Multi-Function/Primary Flight Display

Part Number :





GDU-1200W





FEATURES

  • RCentral display and user interface for the Garmin Integrated Flight Deck
  • Flush mounted flush to the aircraft instrument panel using four pawl latch fasteners
  • Can be configured as either a Multi-Function Display (MFD) or Primary Flight Display (PFD)
  • Contains High Bright LED backlight with a wide aspect ratio display format and WXGA resolution (1280x800)
  • Uses two BNC connectors to connect analog video inputs
  • Designed as open architecture system using typical ARINC 429, RS-232, and Ethernet communications interfaces
  • Provides Display of attitude (pitch and roll), rate of turn, slip/skid, heading, airspeed, altitude, and vertical speed information (PFD or reversionary modes only)
  • Provides display of engine and airframe instrumentation (MFD or reversionary modes only)
  • Provides display of the AFCS flight director command bars and modes (PFD or reversionary modes only)
  • Provides display of position and ground speed, control and display of HSI, selected Heading, selected Course (PFD or reversionary modes only)
  • Provides display of Barometric  altitude Vertical Navigation
  • Provides control and display of dual communications transceivers operating in the 118.00 to 136.975 MHz range in 8.33 kHz or 25 kHz frequency spacing
  • Provides control and display of dual VOR/ILS receivers tuning from 108.00 to 117.95 MHz in 50 kHz increments
  • Provides control and display of transponders, GFC 700 autopilot, GDL 69/69A data link, GWX 68 Weather Radar




SPECIFICATIONS

WIDTH: 12.71 inches (322.8 mm) height: 8.71 inches (221.3 mm)
LEGNth: 6.48 inches (16.46 cm)  weight: 8.3 lbs. (3.76 kg)
DEPTH with connector KIT: 4.95 inches (125.8 mm) Encoder w/Knob Weight: 0.08 lbs. (0.04 kg)
unit Software: RTCA/DO-178B levels A, B, C, D, and E Connector Kit Weight: 0.2 lbs. (0.09 kg)
Humidity: 95% non-condensing Altitude Range: -1,500 ft to 55,000 ft
OPERATING Temperature RANGE : -40°C to +55°C Aircraft Mach Range: <1.00 Mach
Hardware Compliance: RTCA/DO-254 Level A Environmental Compliance: RTCA/DO-160E
Part Number: Description:
011-02333-00  Multi-Function/Primary Flight Display













Serial # 1ZC000655
Condition SV
Mods 1-3
Tag Date 01/21/21
Shop Garmin
Warranty 6 Months
011-02333-00
- Multi-Function/Primary Flight Display
Price Condition Status
$4,750.00 SV OUTRIGHT 1 IN STOCK
$3,400.00 SV EXCHANGE 1 IN STOCK
