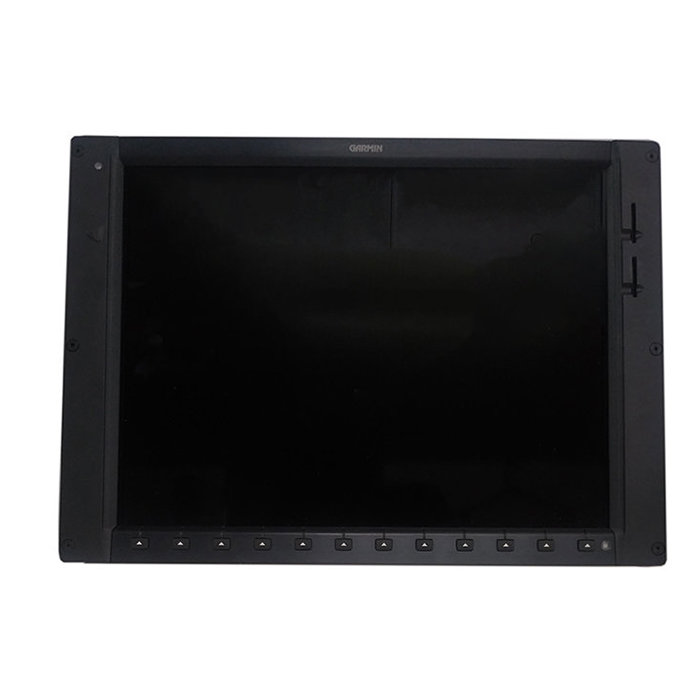

Part #: 011-01108-10

Model: GDU-1500

NSN:

7025-01-592-5983

OEM:

Garmin

Desc:

S3100-531 Display Unit

Part Number :



GDU-1500


DESCRIPTION

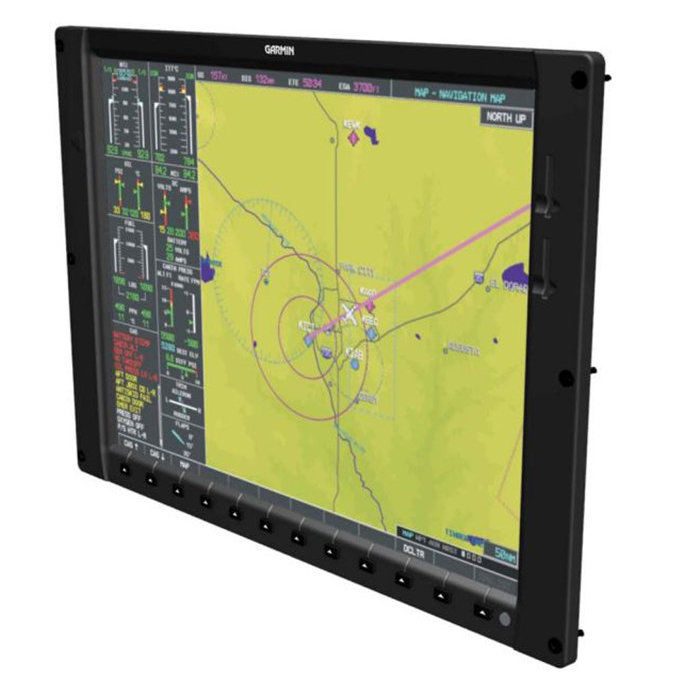

  • Provides a central display and user interface for the Garmin Integrated Flight Deck
  • Utilized in Cessna Citation Mustang and non-NXI G1000 King Airs
  • Mounted flush to the aircraft instrument panel using six ¼ turn fasteners
  • Can be configured as either a Multi Function Display (MFD) or Primary Flight Display


SPECIFICATIONS
width: 14.90 inches (378.5 mm)  height: 10.74 inches (272.8 mm)
depth from front panel to connector: 4.45 inches (113.0 mm) unit weight w/out connector kit: 8.40 lbs. (3.8 kg)
unit weight with connector kit: 8.61 lbs. (3.9 kg) operating temperature range: -40°C to +55°C
humidity: 95% non-condensing altitude range: -1,500 ft to 55,000 ft
software compliance: RTCA/DO-178B levels A, B, C, D, E* hardware COMPLIANCE: RTCA/DO-254 Level A
ENIRONMENTAL cOMPLIANCE: RTCA/DO-160E
Part Number: Description:
011-01108-00 MFD/PFD Base Unit
011-01108-10

Same as -00 but include HTT Video capable of receiving two baseband analog video inputs from external sources

Cessna Textron Part Number S3100-531





Serial # 43225916
Condition SV
Mods 1
Tag Date 01/26/22
Shop Garmin
Warranty 6 Months
011-01108-00
- Display Unit
Price Condition Status
$5,250.00 SV OUTRIGHT 1 IN STOCK
$2,750.00 SV EXCHANGE 1 IN STOCK
011-01108-10
- S3100-531 Display Unit

NSN: 7025-01-592-5983

Price Condition Status
$3,250.00 SV OUTRIGHT 1 IN STOCK
$2,750.00 SV EXCHANGE 1 IN STOCK
