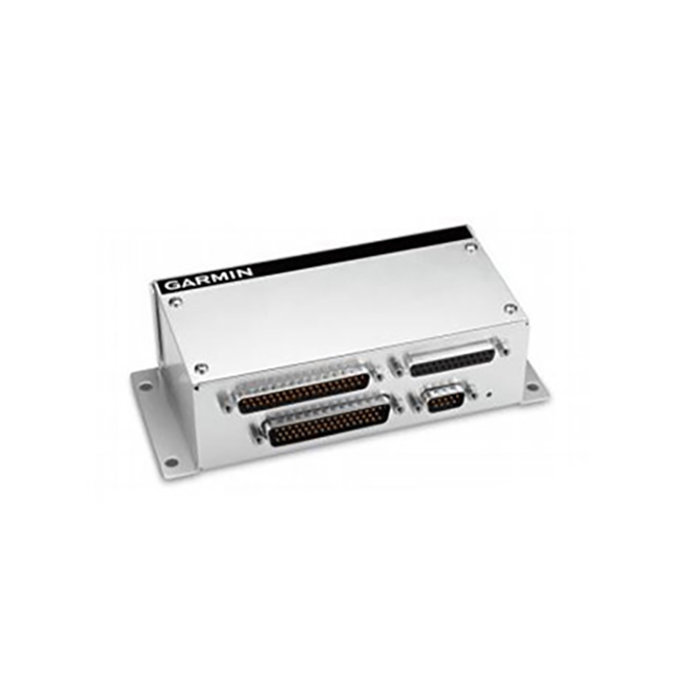

Picture of product GEA-24B

Part #: 010-02770-00

Model: GEA-24B

OEM:

Garmin

Desc:

Engine Adapter

Part Number :



GEA-24B
FEATURES
  • New installs of the GEA 24B will not require in-line resistors to be installed in the fuel probe wiring harness
  • Engine adapter utilized with GI-275 MFD Indicator
  • This configurable engine interface module converts engine sensor information to a digtial format that can be displayed on G3X or G3X Touch (experimental and certified) displays
  • Uses inputs from engine sensors to display primary engine information allowing for the removal of outdated analog gauges
  • Accommodates various engine, fuel and electrical gauges with easy-to-interpret color bands, supporting most popular Lycoming or Continental 4- to 6-cylinder engines
  • Offers a fuel computer, lean assist mode, and pilot alerts/advisories
  • The EIS data can also be logged to an SD card in the display and later uploaded
  • Can support piston engines of up to 6 cylinders as well as turbine applications



SPECIFICATIONS
OPERATING TEMPERATURE RANGE: -45°C to +70°C INPUT/OUTPUT: Configure analog, digital, and discrete I/O capability ◦ Output digital measurement of analog input resistive sensors ◦ Output digital measurement of analog input voltages ◦ Output digital state of discrete input sources ◦ Output frequency measurement of digital input sources ◦ Control of discrete annunciator outputs
cooling system: No cooling air is required for the GEA 24B DIMENSIONS: Width 6.5 inches (165.1 cm), Height 1.9 inches (48.3 mm), Depth 3.0 inches (76.2 mm) with connectors 5.0 inches (127.0 mm), Unit weight 0.71 lbs (0.322 kg)
Power requirements: 14 Vdc 0.43 A max (typical external sensor loading), 28 Vdc 0.21 A max (typical external sensor loadiing) Mounting requirements: The GEA 24B will mount remotely
Part Number: Description:
010-02770-00 Engine Adapter





010-02770-00
- Engine Adapter
Price Condition Status
$895.00 NEW OUTRIGHT REQUEST LEAD TIME
