Part #:

Model: GMA-1347D

OEM:

Garmin

Desc:

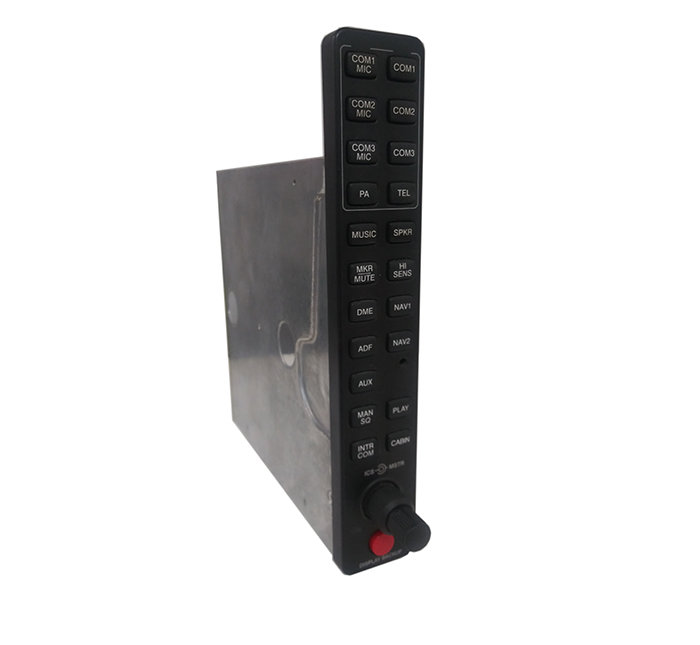

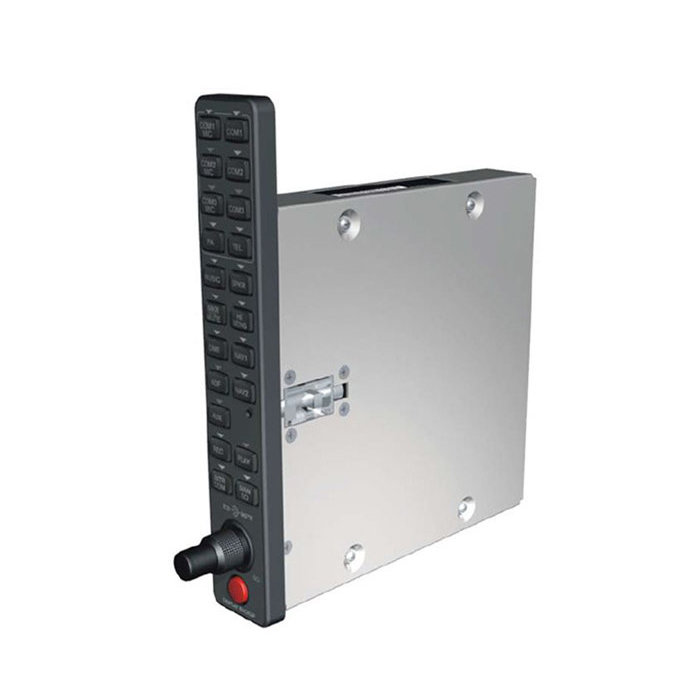

Audio Control Panel

Part Number :


GMA-1347D



FEATURES

  • Audio Panel & Marker Beacon System for the Garmin Integrated Flight Deck
  • Vertically oriented panel mounted
  • LED-illuminated push buttons
  • NAV, COM, DME, ADF, MKR, TEL, AUX buttons
  • Failsafe circuit connects to pilot’s headset and microphone directly to ON-SIDE COM in event power is interrupted or unit turned off
  • Five-position intercom with electronic cabin noise de-emphasis and 2 stereo music inputs
  • Dual installation extends numbers of ICS positions to 10
  • Configurable passenger volume and pilot adjustable master & ICS volume
  • Digital audio input/output capability to external radios
  • Digital recorder with playback capability
  • -20 version includes CABIN button for cabin to cockpit communications



SPECIFICATIONS

bezel height: 7.70" (196 mm) bezel Width: 1.35" (34 mm)
Operating Temperature: -40°C to +70°C rack height: 6.30" (160 mm)
Altitude: 55,000 feet rack width: 1.325" (34" mm)
hardware compliance: RTCA/DO-254 level B Environmental Compliance: RTCA/DO-160D
depth behind panel w/ Connectors: 7.79" (198 mm) gma 1347d unit weight: 1.7 lbs. (0.8kg)
gma 1347d unit weight (installed w/ rack and connectors) 2.6 lbs. (1.2 kg) power requirements: Supply Voltage, 28 VDC
UNIT SOFTWARE: RTCA/DO-178B Level C CLD (CUSTOM LOGIC DEVICES) cOMPIANCE: RTCA/DO-254 Level C





Part Number: Description:
010-00465-00    Catalog P/N
010-00465-20 Catalog P/N w/ Cabin button
011-01257-00 Unit Only P/N
011-01257-20 Unit Only P/N w/ Cabin Button



011-01257-20
- Audio Control Panel

NSN: 6610-01-592-7097

Price Condition Status
$2,250.00 SV OUTRIGHT 1 IN STOCK
$1,150.00 SV EXCHANGE 1 IN STOCK
011-01257-00
- Audio Control Panel
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
