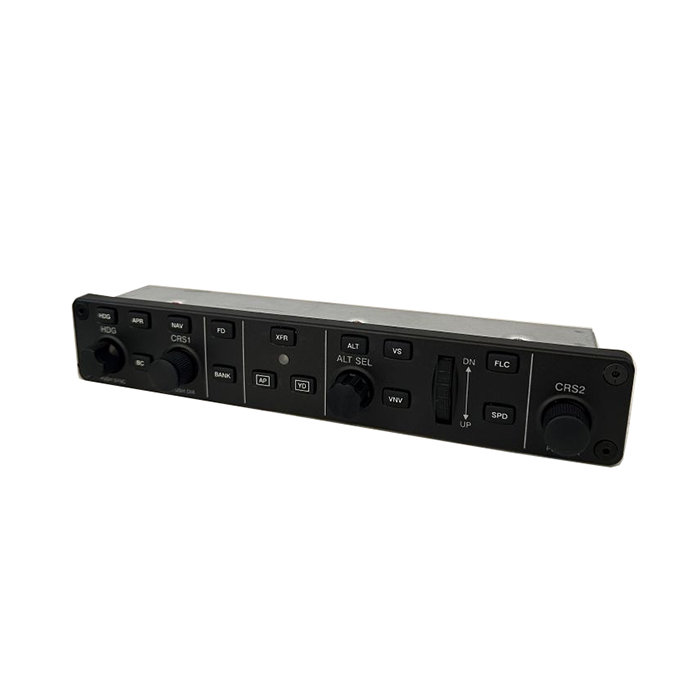

product image

Part #:

Model: GMC-710

OEM:

Garmin

Desc:

Mode Controller

Part Number :



GMC-710



FEATURES

  • Automatic Flight System (AFCS) Mode Controller used in Garmin Integrated Flight Deck

  • Mounts flush to aircraft instrument panel

  • Interfaces with GFC-700 through PFD via RS-232 digital interface

  • Provides user interface to a Flight Director (-20 version)



SPECIFICATIONS
WIDTH: 9.50 inches (241.3 mm) height: 1.65 inches (41.9 mm)
depth w/connector kit: 3.20 inches (81.3 mm) unit weight w/out connector kit: 0.8 lbs. (0.35 kg)
operating temperature range: -45°C to +70°C HUMIDITY: 95% non-condensing
altitude range: -1500 ft to 55,000 ft power consumption (gmc 710 & gmc 715): 310 mA @ 14V, 160 mA @ 28V
Part Number:  Description:
010-00347-00     AFCS Mode Controller, Catalog PN
010-00347-10     AFCS Mode Controller, Catalog PN
010-00347-20     AFCS Mode Controller, Catalog PN
011-01020-00     AFCS Mode Controller, Unit PN
011-01020-10     AFCS Mode Controller, Unit PN
011-01020-20     AFCS Mode Controller, Unit PN





011-01020-00
- Mode Controller
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-01020-10
- Mode Controller

NSN: 5895-01-600-4687

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
