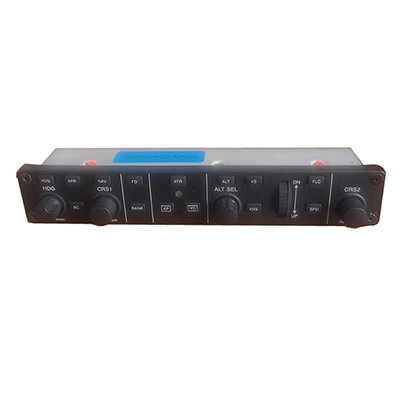

Picture of product GMC-710

Part #: 011-01020-10

Model: GMC-710

NSN:

5895-01-600-4687

OEM:

Garmin

Desc:

Mode Controller

Part Number :



GMC-710



FEATURES

  • Automatic Flight System (AFCS) Mode Controller used in Garmin Integrated Flight Deck

  • Mounts flush to aircraft instrument panel

  • Interfaces with GFC-700 through PFD via RS-232 digital interface

  • Provides user interface to a Flight Director (-20 version)



SPECIFICATIONS
WIDTH: 9.50 inches (241.3 mm) height: 1.65 inches (41.9 mm)
depth w/connector kit: 3.20 inches (81.3 mm) unit weight w/out connector kit: 0.8 lbs. (0.35 kg)
operating temperature range: -45°C to +70°C HUMIDITY: 95% non-condensing
altitude range: -1500 ft to 55,000 ft power consumption (gmc 710 & gmc 715): 310 mA @ 14V, 160 mA @ 28V
Part Number:  Description:
010-00347-00     AFCS Mode Controller, Catalog PN
010-00347-10     AFCS Mode Controller, Catalog PN
010-00347-20     AFCS Mode Controller, Catalog PN
011-01020-00     AFCS Mode Controller, Unit PN
011-01020-10     AFCS Mode Controller, Unit PN
011-01020-20     AFCS Mode Controller, Unit PN





Serial # 22005253
Condition SV
Mods -
Tag Date 03/15/24
Shop Garmin
Warranty 6 Months
Serial # 22007209
Condition SV
Mods None
Tag Date 03/06/24
Shop Garmin
Warranty 6 Months
011-01020-10
- Mode Controller

NSN: 5895-01-600-4687

Price Condition Status
$1,750.00 SV EXCHANGE 2 IN STOCK
$3,450.00 SV OUTRIGHT 2 IN STOCK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-01020-00
- Mode Controller
Price Condition Status
$2,950.00 SV OUTRIGHT 1 IN STOCK
$1,450.00 SV EXCHANGE 1 IN STOCK
