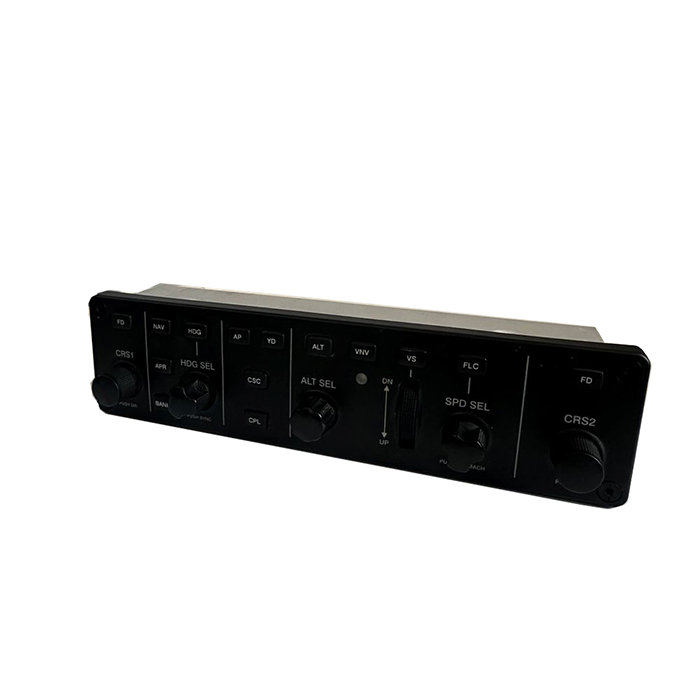

Model: GMC-715
Desc: Mode Controller
OEM: Garmin
Sched-B: 8537109090
Part Number :




FEATURES



  • Line Replaceable Unit (LRU) that provides user interface to the GFC 700 AFCS
  • Interfaces with the GFC 700 system through PFD(s) via RS-232 digital interface
  • Mounts flush to the aircraft instrument panel using (4) 1/4 turn fasteners



SPECIFICATIONS
Operating Temperature Range: -45°C to +70°C. For more details see Environmental Qualification Form Altitude: 55000 ft. (unpressurized)
Unit Weight w/out Connector Kit: 1.0 lbs. (0.45 kg) Width: 9.03 inches (22.94 cm)
Unit Weight with Connector Kit: 1.1 lbs. (0.50 kg) Height: 2.30 inches (5.84 cm)
Depth w/Connector Kit: 4.11 inches (10.44 cm) Mounting Hardware: 0.03 lbs. (0.01 kg)
Humidity: 95% non-condensing Altitude Range: -1,500 ft to 55,000 ft
Power Consumption: 310 mA @14V,  160 mA @ 28V



Part Number: Description:
010-00554-00

Catalog Part Number

010-00554-10 Catalog Part Number
010-00554-20 Catalog Part Number
011-01430-00 Unit Part Number
011-01430-10 Unit Part Number
011-01430-20 Unit Part Number



010-00554-00
- Mode Controller
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-01430-00
- Mode Controller
Price Condition Status
$4,750.00 SV OUTRIGHT REQUEST LEAD TIME
$1,750.00 SV EXCHANGE REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-01430-10
- Mode Controller
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-01430-20
- Mode Controller
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Southeast Aerospace has created a document that explains in detail the difference between the 010 vs. 011 part numbers.
Please see link: SEA-Garmin-010-and-011-FAQ.pdf


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
