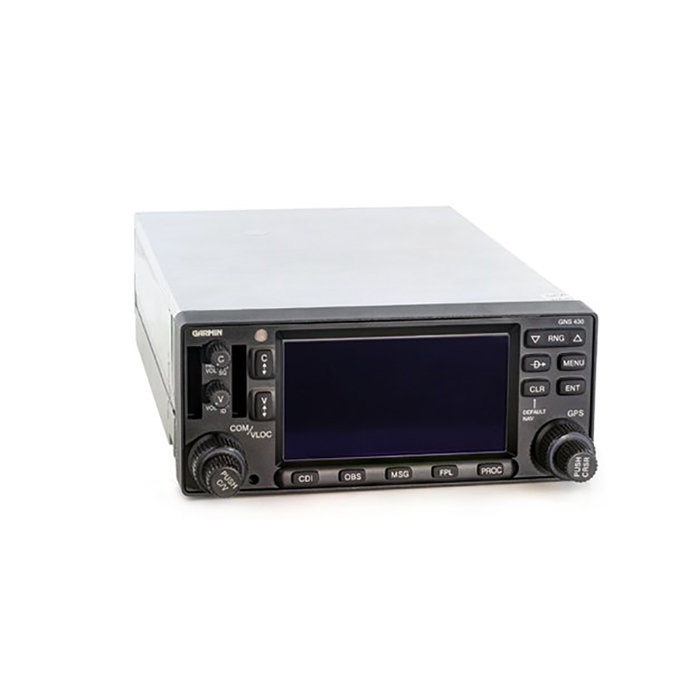

360 degree product image of GNS-430A
360
360 image holder for GNS-430A
360 degree product image thumbnail of GNS-430A
360

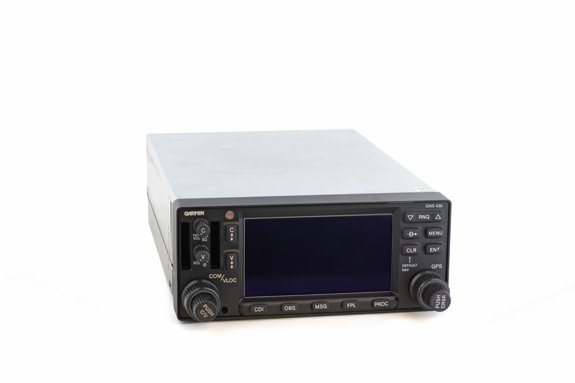

Thumbnail product image of GNS-430A

Part #:

Model: GNS-430A

OEM:

Garmin

Desc:

GPS/Nav/Comm
Part Number :


GNS 430A

FEATURES
  • Combines 16 watt VHF communications transceiver, VHF navigation and UHF glideslope receivers, 12-channel GPS receiver with color moving map
  • WAAS and LAAS compatible GPS receiver
  • 760 channel VHF comm with 25khz spacing; software configurable for 2280 channels (8.33 kHz spacing) for Europe
  • Provides both course deviation and optional roll steering outputs to aircraft flight guidance systems which will enable ARINC 424 lateral guidance procedures including IFR arrivals, departures and approaches
  • Automatically will nominate appropriate VOR and localizer frequencies for VHF navaid
  • Sends correct ATIS, approach, clearance, tower or ground control frequency to the comm radio at the touch of a button
  • 16-color, active-matrix LCD measuring approximately 2" high and 3" wide with a resolution of 128 by 240 pixels
  • Cartographic database displays geopolitical boundaries, federal interstate highways, state routes, major local thoroughfares, plus railroads, rivers, coastlines and lakes
  • Can be interfaced to main indicators such as KI-202/203/204/206/208/208A/209/209A
  • Can be interface to Bendix/King RMI units such as KI-229 and KNI-582
  • Can tune most panel mount DME and remote mount DME units
  • Interaces to ARINC 429 EFIS systems such as Sandel SN3308 and Bendix/King EFIS 40 & 50
  • RS-232 and RS-422 serial ports for interfacing
  • ARINC 429 digital output (GAMA standard) for left/right analog course deviation, ng, encoded or greycode altitude, and basic fuel flow sensor links
  • Fuel Flow page configurable to allow for simultaneous display of left and right engine fuel flows
  • ARINC 429 digital output compatible with some autopilots which can accept ARINC 429 roll-steering information
  • ARINC 429 output data can be used with digital to analog adapter such as Allied Signal KA-90 to produce roll-steering signal used by autopilots systems requiring analog signal
  • Accepts RS-232 fuel flow data from external sources
  • 28 Volt or 14 Volt operation
  • TSO'd
  • Interfaces to BF Goodrich WX-500 Weather Mapping Sensor and Skywatch Traffic Advisory System for combined moving map display with nav data and weather/traffic information
  • Interfaces to Ryan 9900B / 9900BX TCAD and Goodrich Skywatch to display traffic information
  • XM WX satellite weather service via GDL 69 available
  • Non-TAWS terrain advisory feature available
  • WAAS upgrade available via software/hardware upgrade

PLEASE NOTE: This item has been superseded by GNS-430AW



SPECIFICATIONS

Coverage: Americas or International Airports: Identifier, city/state, country, facility name, lat/long elevation, fuel service, control, approach information
VORs: Identifier, city/state, country, facility name, lat/long, frequency, co-located DME/TACAN, magnetic variation, weather broadcast NDBs: Identifer, city/state, country, facility name, lat/long, frequency, weather broadcast
Intersections: Identifier, country, lat/long, nearest VOR Frequencies: Approach, arrival, control area, departure, Class B, Class C, TMA, TRSA-with sector, altitude and text usage info, also, ASOS, ATIS, AWOS, center, clearance delivery, ground, pre-taxi, tower, unicom, localizer and ILS
Runways: Designation, length, width, surface, lighting, pilot-controlled lighting freq. FSS: Identifier, reference VOR, freq. usage
ARTCC: Identifier, freq. usage MSA: Minimum safe altitude along and in proximity to active flight plan
Approaches: Non-precision and precision approaches throughtout the database coverage SIDs/STARs: Contains all pilot-nav SIDs and STARs
Waypoints: 1000 user-defined Flight Plans: 20 reversible; up to 31 waypoints each
Emergency Search: 9 nearest airports, VOR's, NDB's, intersections, or user waypoints; 2 nearest FSS with frequncies; 2 nearest ARTCC frequencies Alarms: Arrival and CDI, timers, SUAs less than 10 min, 2NM and insude SUA
Receiver: PhaseTrac12, 12 parallel channel receiver, simultaneously tracks and uses up to 12 satellites Acquisition Time: 12 seconds (warm), 45 seconds (cold)
Update Rate: 1/second, continuous Accuracy: 15 meters (49 feet) RMS, 1.5 meters with differential corrections
Nav Features: Pilot-defined Course Selection and Waypoint Hold, Closest Point of Approach, Departure and Arrival Frequencies, Approach Navigation using published approach procedures stored on NavData card, Terminal Navigation using SIDs/STARs from NavData card Planning Features: True Airspeed, Density Altitude, Winds Aloft, RAIM Availability, Sunrise/Sunset Times, Trip and Fuel Planning, Vertical Navigation (VNAV)
Interfaces: ARINC 429, Aviation RS-232, CDI/HSI, RMI (digital: clock/data), Superflag Out, altitude (serial: Icarus, Shadin-Rosetta, encoded Gillham/Greycode), fuel sensor, fuel/air data Map Datums: 124 predefined, 1 user defined
VOR Freq. Range: 108.00 MHz to 117.95 MHz VOR/LOC Composite: 0.50Vrms/0.35Vrms
CDI Output: +-150mV Full Scale Centering Accuracy: +-2.0 deg.
Flag Sensitivity: -103.5 dBm DME Channeling: 2x5 available
Audio Sensitivity: -103.5 dBm for 6 dB S/N with 1 kHz 30% mod. VOR Audio Output: -103.5 mW minimum into 500 ohm load; external amplifier required
GS Freq. Range: 329.15 MHz to 335.00 MHz GS CDI Output: +-150mV Full Scale
LOC Freq. Range: 108.10 MHz to 111.95 MHz LOC CDI Output: +-150mV Full Scale
LOC Accuracy: LOC Flag Sens.: -103.5 dBm
Size: 6.25"W x 2.65H x 11.0"L Weight: 6.6 lbs.
Display: Color LCD Power: 14/28 VDC
Certification: GPS: TSO C129a, Class A1 (en route, terminal, and approach) VOR: TSO C40c LOC: TSO C36c GS: TSO C34e VHF COM: TSO C37d, Class 4 and 6 (transmit) and TSO C38d, Class C and E (receiver) VHF Frequency Range: 118.000 MHz to 136.976 MHz
Comm Transmit Power: 16 watts min. Comm Modulation: 70%
Receiver Sensitivity: 2.0 microvolts for 6dB S/N with 1 kHz 30% mod. Comm Channels: 760 (25 Khz spacing); configuration for 2280 channels (8.33 kHz spacing) also provided
Frequency Display: Upper left corner of active matrix LCD, 2-lines with active freq. above standby Squelch Sensitivity: 2.0 microvolts typical
Audio Output: 100mW min. into a 500 ohm load; external amp required Temperature: -20 to +55C operating
Humidity: 95% non-condensing Altitude Range: -1500 ft. to 50000 ft.
Part Number: Description:
010-00286-01 GPS/Nav/Comm, black face
010-00286-11 GPS/Nav/Comm, gray face



011-00836-00
- GPS/Nav/Comm
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-00836-10
- GPS Nav/Comm
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The hardware and software upgrade for WAAS to the classic GNS-400/500 series navigators adds FAA TSO C146a Gamma-3 certification. This upgrade and certification enables pilots to fly Lateral-Precision with Vertical guidance approaches and receive GPS navigation via the Wide Area Augmentation System.
No, Garmin does not offer an upgrade to incorporate the 16 watt comm. (i.e. "A" version) into the GNS-430/530 and GNS-430W/530W units.
Newly Overhauled parts obtained from Garmin are designated with an N in their part number. This usually follows the 010- in the part number. As with most Garmin 010 part numbers, the N part numbers are for ordering purposes only and do not actually appear on the dataplate of the unit.
The Garmin GNS400/500 series units require setup and configuration before proper function and use. The system does not utilize a configuration module to allow easy removal and replacement of units while retaining the programmed configuration information. Therefore, if you are exchanging units in an aircraft, then you must have record of the configuration parameters to reprogram into the replacement unit.
Yes, the Garmin GNS400/500 systems meet RNP5 airspace (BRNAV) requirements of AC 90-96 and in accordance with AC 20-138, and JAA AMJ 20X2 Leaflet 2 Revision 1, provided it is receiving usable navigation information from the GPS receiver.

For handheld GPS receivers, database updates can be ordered and downloaded directly through Garmin's Internet site.

For panel mount GPS receivers, all database cards and computer downloads (if applicable) must be ordered through Jeppesen. Contact Jeppesen at www.jeppesen.com for more information.

The WAAS upgrade for the GNS-400/500 series units is not a 'plug and play' upgrade. There are several installation, certification, and operational subjects that must be adhered to before a proper WAAS upgrade can be completed.

For aircraft with dual GNS-400/500 series units, both units must be upgraded for the crossfill function to operate. A WAAS upgraded 400/500 series unit will not crossfill to a non-WAAS 400/500 series unit.

One subject that many people upgrading to WAAS may overlook involves the GPS navigators distance from the pilot's primary field of view. The original GNS-400/500 series installation guidelines only provided general suggested guidelines for the distance of the unit from the pilot's primary view. Page 2- of the WAAS GNS-400/500 installation instructions is very specific in regards to the suggested guidelines for this distance. The left edge of the GNS unit should be no more than 11.8 inches from the centerline of the pilot's field of view. The 500 series units allow 12.1 inches. Vertically, the top of the GNS unit cannot be lower than the bottom edge of the primary flight instruments. If these measurements are exceeded then an additional annunciator may need to be installed near the pilot's primary field of view.

There are several wiring changes that need to be made to make the Bendix King KAP-140 / KFC-225 autopilots and original Sandel SN3308 EHSI completely compatible with the WAAS upgraded units. Certain features regarding proper navigation deviation will not function properly unless wiring changes are made in the aircraft. In addition, aircraft with more recent glass cockpit technology (e.g. EX5000 and G1000) have not been completely addressed for the WAAS upgrades.

In order to ensure that you receive the most accurate and realistic quotation for this WAAS upgrade, we strongly suggest that you contact our Installation Department for further assistance.

Yes, some are noticeable and some are minor. The WAAS upgrade to the GNS-400/500 series units WAAS upgrade includes a faster 5Htz update rate on the GPS signal. Therefore, the GPS receiver in the unit is extracting GPS information 5 times per second instead of 1 time per second as with original units.

If the terrain advisory feature is installed on the 400/500 series unit, then the terrain information will have a higher resolution.

When the GDL69 datalink is interfaced to the WAAS upgraded units, the weather will cover the entire USA instead of just 250 miles. METARS are included in the waypoint section making it easier to see weather information for a particular destination. Installations using the GDL69A with music will now be able to view the title and artist name on the GNS display.

Lastly, the WAAS upgrade provides the ability to fly curved flight paths with a roll steering autopilot for pilots who wish to utilize DME arcs or full approaches.

According to the Installation Manual, the following indicators are compatible with main switchable VOR/ILS/GPS Indicator output (Connector P4001) for the Garmin GNS-430 and GNS-530 GPS/Nav/Comms. GI-102 (no longer available), Garmin GI-102A, GI-106 (no longer available), GI-106A, S-Tec ST-180 HSI, King KI-202, KI-206, KI-208A, KI-209A, KI-525A, KPI-552, KPI-552B, KPI-553, KPI-553A, KPI-553B, Collins 331A-3G HSI, 331A-9G HSI, 331A-6P HSI, Bendix IN-831A, Century NSD-360, NSD-360A , NSD-1000 HSI, Sperry/Honeywell RD-550A, 650 HSI. The following indicators are compatible as well but not mentioned in the installation manual: King KNI-520, Collins/STec IND-350, IND-350A, IND-351, IND-351A, 331H-3G Basically, a non-converter type indicator is required for the VOR/ILS/GPS Indicator interface to the GNS-430/530 Note: The following indicators may be interfaced to the secondary VOR/ILS output of the GNS-430/530 (Connector P4006). This output only provides VOR/ILS information on the indicator not GPS deviation information. King KI-203, KI-204, KI-208 KI-209
The 400/500W units with WAAS capability offer many new features and enhancements over the classic models. Some enhancements include WAAS enable GPS antenna, receiver, and software. The 400W/500W series units comply with WAAS TSO C146a and include hardware upgrades with a faster micro-processor. A terrain database for terrain awareness is included a standard feature. Most importantly, the WAAS GPS receiver allows pilots to use the GNS-400W/500W units for primary navigation and vertical guidance for LPV, L/VNAV, and LNAV+V approaches.

For a complete summary of the feature changes and enhancements, click Here.
There are quite a few changes and issues that need to be addressed in reference to upgrading/modifying a GNS-400/500 series unit to include WAAS capability. It is strongly suggested that you go through an authorized Garmin dealer who has performed this modification/upgrade previously.

There are several installation and certification issues including review of the STC approval from Garmin. This STC includes appendices detailing the approved equipment that can be interfaced to the WAAS capable units as well as approved installation diagrams for these interfaces.

The upgrade from Garmin includes the necessary updating of the unit, WAAS antenna, and new IFR-W Jeppesen database. The existing GPS antenna is replaced with the WAAS antenna. This WAAS antenna utilizes the same mounting holes however it should be noted that it is physically larger than the original GA-56 GPS antenna that was included with all GNS-400/500 series units. Also, in regards to the antenna installation, RG-142B or RG-400 coaxial cable must be used.

As a dealer for an Original Equipment Manufacturer (OEM), it is required to commit to a dealership agreement. Garmin's dealer agreement states that certain TSO'd products must be installed by the dealer for the factory warranty to be valid. There are generally 2 reasons for this policy. First, the OEM wants to minimize their liability risk by assuring their equipment is installed by factory trained and knowledgeable technicians. Second, Garmin wishes to maintain their products integrity by making sure the product is installed and operating properly so the customer is satisfied with the performance. Avionics installations and interfacing can sometimes be very complex. It is very important that pilots, aircraft owners and operators ensure installations are performed by skilled, experienced technical personnel to provide the safest flying environment and experience.
Yes, the Bendix/King KPI-553A can display the distance information output from the Garmin GNS-430 BUT only with the use of the Garmin GAD-42 Adapter. The KPI-553A uses King Serial Data/Clock for its distance information format. The GNS-430 outputs ARINC 429 distance information. The GAD-42 is required with this interface to convert the ARINC 429 Distance Label to the KING Serial Data/Clock Distance information
Software Version 1.6 is required on the processor of the Goodrich Skywatch System to interface and display traffic information on the Garmin GNS-430 and GNS-530 GPS/Nav/Comms.
According to the Installation Manual, the following indicators are compatible with main switchable VOR/ILS/GPS Indicator output (Connector P4001) for the Garmin GNS-430 and GNS-530 GPS/Nav/Comms. GI-102 (no longer available), Garmin GI-102A, GI-106 (no longer available), GI-106A, S-Tec ST-180 HSI, King KI-202, KI-206, KI-208A, KI-209A, KI-525A, KPI-552, KPI-552B, KPI-553, KPI-553A, KPI-553B, Collins 331A-3G HSI, 331A-9G HSI, 331A-6P HSI, Bendix IN-831A, Century NSD-360, NSD-360A , NSD-1000 HSI, Sperry/Honeywell RD-550A, 650 HSI. The following indicators are compatible as well but not mentioned in the installation manual: King KNI-520, Collins/STec IND-350, IND-350A, IND-351, IND-351A, 331H-3G Basically, a non-converter type indicator is required for the VOR/ILS/GPS Indicator interface to the GNS-430/530 Note: The following indicators may be interfaced to the secondary VOR/ILS output of the GNS-430/530 (Connector P4006). This output only provides VOR/ILS information on the indicator not GPS deviation information. King KI-203, KI-204, KI-208 KI-209
The Garmin GNS-430 can channel a DME based on the tuned VLOC frequency. The GNS-430 outputs 2x5, BCD or slip parallel DME and King Serial DME channeling formats. There is a setup page in the GNS-430 where you can select which DME you will be channeling with the GNS-430.
The 14/28 Volt version of the GNS-430 units will work on either 14 or 28 volts. The wiring is the same with the only difference being that the 14 volt usage requires a 10 amp breaker instead of a 5 amp breaker on the comm power line.
Yes, the Bendix/King KPI-553A can display the distance information output from the Garmin GNS-430 BUT only with the use of the Garmin GAD-42 Adapter. The KPI-553A uses King Serial Data/Clock for its distance information format. The GNS-430 outputs ARINC 429 distance information. The GAD-42 is required with this interface to convert the ARINC 429 Distance Label to the KING Serial Data/Clock Distance information
