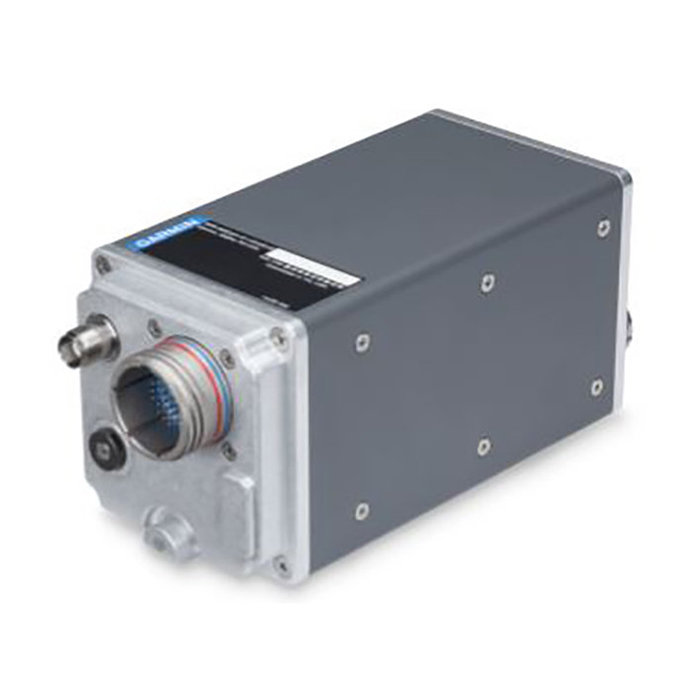

Picture of product GPS-3000

Part #: 010-01852-00

Model: GPS-3000

OEM:

Garmin

Part Number :

GPS-3000 High-integrity GPS Position Sensor

DESCRIPTION

  • GPS 3000 is a compact, remote-mount 15-channel GPS receiver (capable of 5 position updates per second) that uses enhanced WAAS/SBAS GPS satellite signals to provide ultra-precise
  • Remote GPS SBAS/WAAS position source with ruggedized design meets requirements for commercial air transport, military, regional and business aircraft
  • Compatible with select flight management system (FMS) interfaces to support GPS guidance for terminal, en route and approach navigation
  • Meets applicable ADS-B high-integrity position source standards, including DO-160, TSO-C145d Class 3 and DO-178B
  • It provides an ARINC 743A-5 GNSS interface over an industry-standard ARINC 429 data bus for those who wish to integrate GPS 3000 with existing avionics systems
  • The GPS 3000 sensor can provide position source information to the FMS
  • Will also support compatible TAWS, ADS-B and TCAS interfaces

SPECIFICATIONS

UNIT SIZE: 3.04"W x 3.56"H x 9.04"D (77.2 x 91.4 x 229.4 mm)
ELECTRICAL: 14 or 28 VDC aircraft power
WEIGHT: 1.9 lbs (0.86 kg), unit
ENVIRONMENTAL: DO-160F
SOFTWARE: DO-178B Level B
TSO: TSO-C145d
NUMBER OF GPS CHANNEL: 15 (12 GPS and 3 GPS/SBAS)
OPERATING TEMPERATURE: -55°C to +70°C
MAXIMUM ALTITUDE: 55,000 feet
POSITION UPDATE INTERVAL: 0.2 sec (5 Hz)





010-01852-00
- WAAS/SBAS GPS Sensor
