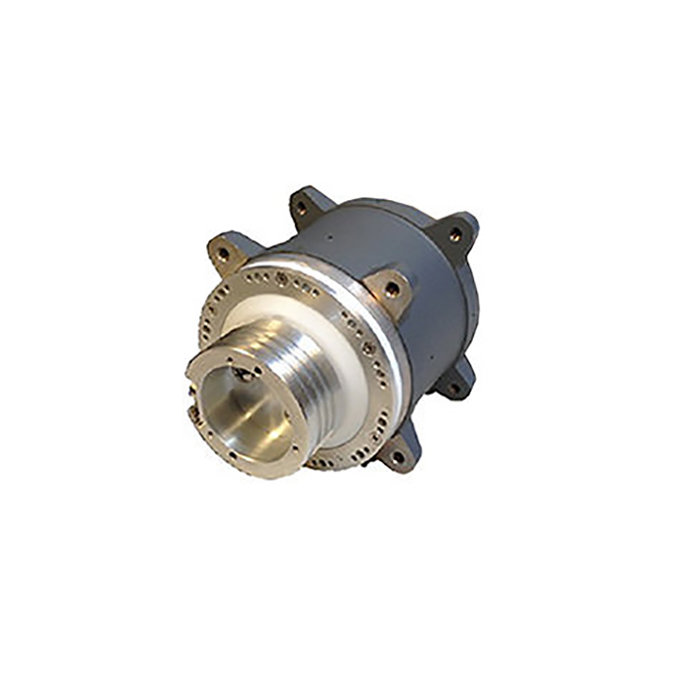

Picture of product GSM-9100

Part #:

Model: GSM-9100

OEM:

Garmin

Desc:

Servo Gearbox

Part Number :



GSM-9100



FEATURES

  • GSM 9100 Autopilot Servo Gearbox is part of the GFC 700 autopilot system
  • Drives a single flight control axis of the plane or associated trim
  • Contains an engage clutch and gear pass for gear reduction between output splineon the GSA 9000, which couples to the aircraft





SPECIFICATIONS

input voltage range: 28 VDC (80 V surge)some degradation of torque /speed capability will occur when operated below 27.5 VDC weight: (Unit Weight 011-02213-00, 2.06 lbs. 0.93 kg), ( HIRF, Unit Weight 011-02213-10, 2.12 lbs. 0.96 kg ) (Right Angle Backshell Connector Kit Weight 011-02306-00, 0.11 lbs. 0.05 kg)
operating temperature: -55°C to +70°C POWER CONSUMPTION: 161 W maximum, at 32.5 RPM and 250 in-lbs
ALTITUDE rANGE: -15,000 ft to 55,000 ft gsa 9000 software: RTCA/DO-178B Level A
SPEED & TORQUE (011-02213-00): Max no load Speed 50 rpms, Max torque 250-in lbs.
Part Number: Description:
011-02214-00 Servo Mount, 2 ball, 3/32 cable, 3.62 lbs (1.64 kg)
011-02214-02 Servo Mount, 2 ball, 1/8 cable, 3.82 lbs (1.73 kg)
011-02214-03 Servo Mount, center ball, 3/32 cable, 3.62 lbs (1.64 kg)
011-02214-11 Servo Mount, 2 ball, 1/8 cable, 3.92 lbs (1.78 kg)
011-02214-12 Servo Mount, centerball, 3/32 cable, 3.72 lbs (1.69 kg)
011-02214-13 Servo Mount, 2 ball, 3/32 cable, large diameter, 3.93 lbs (1.78 kg)



011-02214-00
- Servo Gearbox
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-02214-02
- Servo Gearbox
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-02214-03
- Servo Gearbox
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-02214-11
- Servo Gearbox
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-02214-12
- Servo Gearbox
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-02214-13
- Servo Gearbox
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
