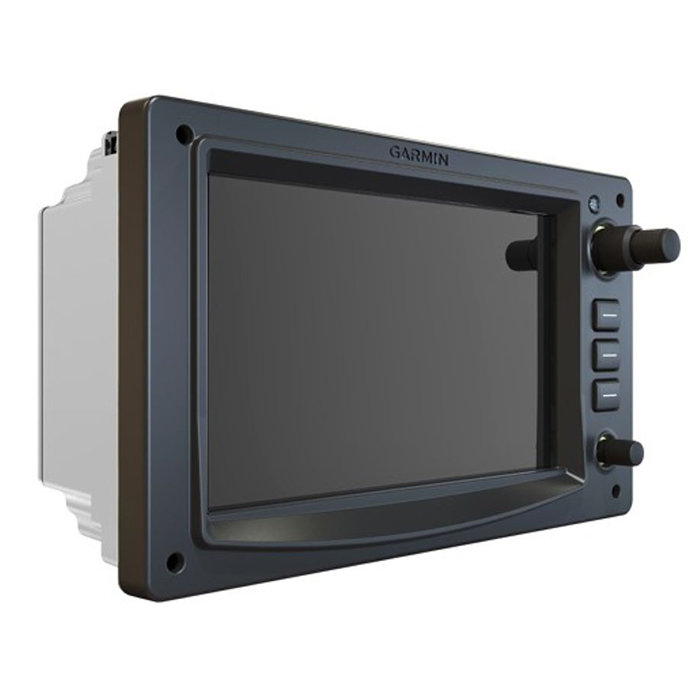

Picture of product GTC-585
Part #: 010-01767-00
Model: GTC-585
OEM: Garmin
Part Number :



FEATURES
  • Touchscreen controller providing primary point of data entry for G2000/G3000/G5000 systems
  • 5.8” WXGA color display
  • Controls include radio tuning and control and simplified navigation on the MFD
  • Communicates with GDU 1200W/1250W/1400W/1450W, GMA 36/36B, GIA 63W/64, Standby ADC/AHRS





SPECIFICATIONS

Size:     7.38” W x 4.47” H x 3.12” D Weight:

3.60 lbs.

Temperature:   -40C to +70C Altitude:          -1500 to 55000 ft.
Software:  DO-170B Levels A-E Hardware: DO025 Level A
Part Number: Description:
010-01767-00              Shipping/Catalog Part Number
010-01767-50              Shipping/Catalog Part Number, NVIS
011-04313-00              Unit Part Number
010-04313-50              Unit Part Number, NVIS





010-01767-00
- Touchscreen Controller
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-04313-00
- Touchscreen Controller
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
