Part #:

Model: GTN-625Xi

Garmin - Touchscreen WAAS GPS (GPS Only version) w/MFD Capabilities

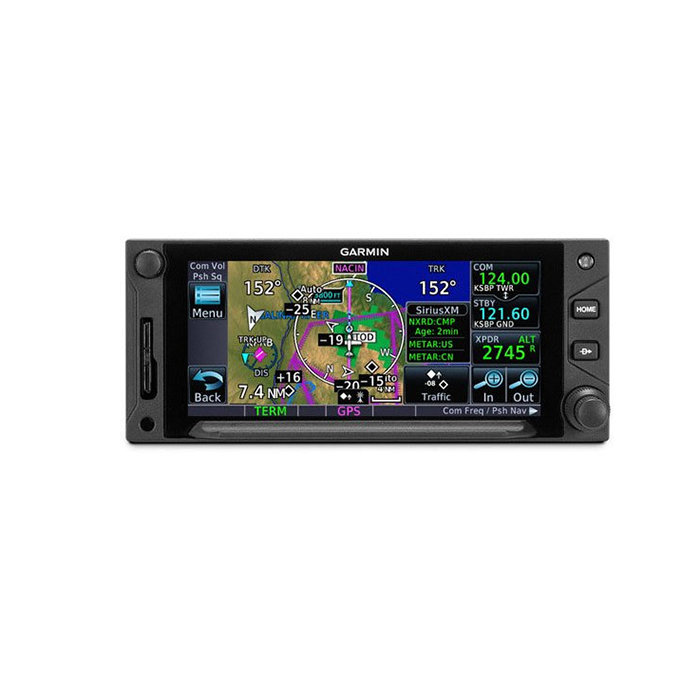

product image
Part Number :


GTN 625Xi
FEATURES
  • Touchscreen WAAS GPS (GPS Only version) with Multifunction Display capabilities

  • Designed as a direct slide-in upgrade to the original GTN625 display, with the following upgraded features:
    • Do-it-all touchscreen - Intuitive touchscreen interface provides quick access to navigation, radio tuning, multifunction display features and more
    • Lightning-fast response - Powerful dual-core processors boost the GTN Xi series graphical display capabilities - with faster zooming, panning and map rendering on the display
    • High-resolution display - With almost double the pixel count of its predecessor, the GTN Xi series features wider viewing angles and one of the highest-resolution displays ever offered in this class of avionics

  • Multifunction display - Supporting multiple inputs, the 6.9” display can put moving maps, terrain, traffic*, weather*, airport diagrams and more at your fingertips

  • Easy data entry - Use the on-screen QWERTY keyboard or traditional concentric knobs to enter frequencies, waypoint identifiers, routings and more

  • Tell it, tune it - Available Telligence™ voice control technology helps reduce pilot workload by responding to hundreds of spoken commands with the press of a button on the yoke*

  • Pinch, swipe gestures - A quick finger swipe lets you pan across the map display. Or use a smartphone-like pinch-to-zoom motion to scale up or down on any map, traffic or terrain page

  • See the full picture - Graphical routing on the display lets you visualize your entire flight plan, including departures, arrivals, visual/instrument approaches, holding procedures and more

  • Fast find - As soon as you start typing, the GTN Xi FastFind feature uses quick predictive logic to suggest airport and waypoint entries by using current GPS position

  • Airways, your way - Victor airways and high-altitude jet routes can be overlaid on the map. For easy IFR routings, view airway segments available from a waypoint and corresponding exit options

  • "Rubber Band" reroutes - This handy feature lets you grab a flight plan leg on the screen, and then stretch or move it to adjust for a deviation or ATC amendment to your flight plan

  • Virtual map topography - By referencing built-in terrain, mapping and obstacles databases, GTN 625Xi shows detailed surface features, cities, airports, SUAs and more on the dynamic map display

  • Terrain alerting - A built-in database provides color-coded display overlays to warn when potential terrain conflicts loom ahead. Class A or B TAWS alerting is optionally available

  • Direct connect - A Direct-to key on the bezel lets you quickly enter a direct course for any selected waypoint. A menu of nearest airports and flight plan waypoints makes for easy entry

  • More approach options - The WAAS/SBAS-certified GPS receiver expands your landing options, enabling GPS-guided LPV glidepath approaches down to ILS-comparable minimums as low as 200’

  • Cleared for the visual - GTN Xi can give advisory visual approach guidance based on a published glidepath or a 3-degree slope from the runway threshold (with terrain/obstacle clearance)

  • Autopilot interface - Precise course deviation and roll steering outputs can be coupled to select autopilots, enabling virtually all IFR flight procedures to be flown automatically

  • Holding patterns - IFR pattern entries can be tricky. GTN 625Xi lets you easily create and execute holding patterns over a published or user-defined waypoint

  • Search and rescue - For aerial surveillance, common search pattern types — including orbit, parallel line, expanding square and sector search — can be loaded into your flight plan on the GTN 625Xi navigator*

  • Supports VNAV and more - With our GFC™ 500 and GFC 600, GTN 625Xi supports advanced modes and features such as vertical navigation profiles, radius-to-fix legs, missed approaches and more

  • Safetaxi® database - Upon landing, georeferenced SafeTaxi diagrams on the display automatically help track your location on hundreds of airports

  • ADS-B data links - With available Garmin ADS-B “In” equipage solutions, GTN 625Xi can display up to 60 ADS-B traffic targets as well as subscription-free U.S. weather data

  • TargetTrend™ display - ADS-B based TargetTrend relative motion tracking on the GTN Xi display gives pilots a faster, more intuitive way of judging traffic closure rates and trajectories

  • TerminalTraffic™ display - Providing a dynamic display of ADS-B-equipped aircraft and ground vehicles, this technology helps pilots avoid traffic conflicts within the airport environment

  • Active traffic solutions - For more advanced traffic surveillance capability, GTN Xi can integrate with select TAS or TCAS/ACAS systems, including our GTS™ family of ADS-B enhanced products

  • SiriusXM® service - When paired with an optional GDL® 69 datalink receiver, GTN Xi can incorporate SiriusXM satellite weather coverage — plus audio entertainment features (sold separately)

  • Worlwide communications - Want global weather, radar imagery and two-way text/voice communications from the air? Connect your GTN 625Xi with our optional GSR 56 satellite link (sold separately)

  • Connected Cockpit - between GTN Xi and compatible Garmin portables or mobile devices running the Garmin Pilot™ or FltPlan Go apps (sold separately)

  • Flight plan transfer - Save time by creating your flight plan on your mobile device at home, then use Connext* to wirelessly upload the data into your GTN Xi during preflight at the airport

  • Flight stream - In addition to GPS data, a compatible Connext wireless gateway (sold separately) can stream ADS-B traffic, weather and backup attitude data to your mobile device in real time*

  • Database sync - A Flight Stream 510 Connext gateway (sold separately) adds Database Concierge to your GTN Xi navigator. Upload databases from your tablet in minutes — then let automatic sync with your avionics do the rest

*Optional feature; additional hardware may be required

SPECIFICATIONS
Dimensions: 6.25"W x 2.65"H x 11.25"D Display Size: 4.9" diagonal
Display Resolution: 834 pixels W x 370 pixels H Weight: 4.1 lbs
input voltage range: 11 VDC - 33 VDC Operating Temperature range: -20°C to 55°C
Number of GPS Channels: 15 (12 GPS and 3 GPS/WAAS/SBAS) LAT/LON position accuracy: <1.25 meter RMS horizontal
<2 meter vertical, with WAAS
Maximum velocity: 1,166 knots Position update interval: 0.2 secs (5 Hz)
TSO Applicability: C74d Class A; C112e; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C194; C195b Class B1, B3, B5, B7; C209
Part Number Touchscreen navigator Description:
010-01997-03 Black, Unit Only with Info Kit



010-01997-01
- Touchscreen GPS (Black)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
010-01997-03
- Touchscreen GPS (Black, Unit Only)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
011-04629-00
- GPS Navigator
Price Condition Status
REQUEST SV EXCHANGE REQUEST
