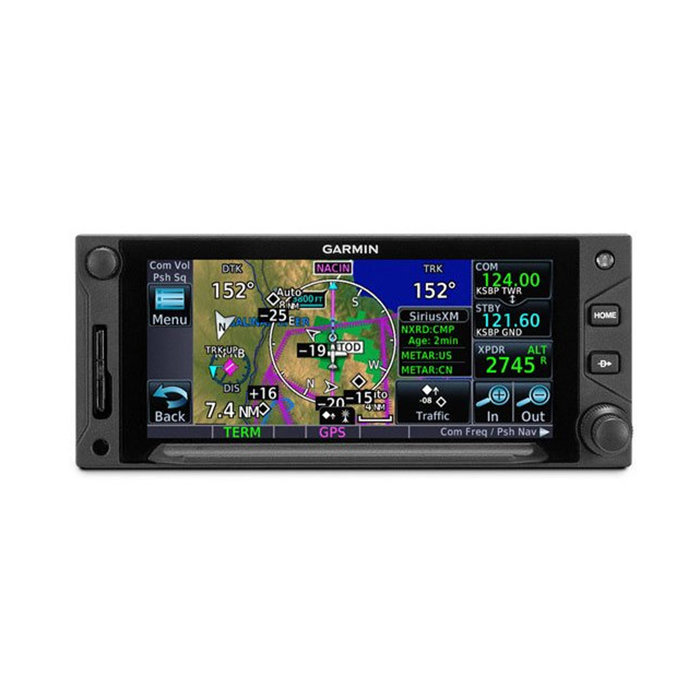

Picture of product GTN-650HXi

Part #:

Model: GTN-650HXi

OEM:

Garmin

Desc:

Touchscreen WAAS GPS/Nav/Comm

Part Number :
Garmin Logo





GTN 650Xi (Helicopter NVG)



FEATURES

  • Multifunction display - Supporting multiple inputs, the 6.9” display can put moving maps, terrain, traffic*, weather*, airport diagrams and more at your fingertips
  • Database sync - A Flight Stream 510 Connext gateway (sold separately) adds Database Concierge to your GTN Xi navigator. Upload databases from your tablet in minutes — then let automatic sync with your avionics do the rest
  • Easy data entry - Use the on-screen QWERTY keyboard or traditional concentric knobs to enter frequencies, waypoint identifiers, routings and more
  • Tell it, tune it - Available Telligence voice control technology helps reduce pilot workload by responding to hundreds of spoken commands with the press of a button on the yoke*
  • Pinch, swipe gestures - A quick finger swipe lets you pan across the map display. Or use a smartphone-like pinch-to-zoom motion to scale up or down on any map, traffic or terrain page
  • See the full picture - Graphical routing on the display lets you visualize your entire flight plan, including departures, arrivals, visual/instrument approaches, holding procedures and more
  • Fast find - As soon as you start typing, the GTN Xi FastFind feature uses quick predictive logic to suggest airport and waypoint entries by using current GPS position
  • Airways, your way - Victor airways and high-altitude jet routes can be overlaid on the map. For easy IFR routings, view airway segments available from a waypoint and corresponding exit options
  • "Rubber Band" reroutes - This handy feature lets you grab a flight plan leg on the screen, and then stretch or move it to adjust for a deviation or ATC amendment to your flight plan
  • Virtual map topography - By referencing built-in terrain, mapping and obstacles databases, GTN 650Xi shows detailed surface features, cities, airports, SUAs and more on the dynamic map display
  • Terrain alerting - A built-in database provides color-coded display overlays to warn when potential terrain conflicts loom ahead. Class A or B TAWS alerting is optionally available
  • Direct connect - A Direct-to key on the bezel lets you quickly enter a direct course for any selected waypoint. A menu of nearest airports and flight plan waypoints makes for easy entry
  • More approach options - The WAAS/SBAS-certified GPS receiver expands your landing options, enabling GPS-guided LPV glidepath approaches down to ILS-comparable minimums as low as 200’
  • VHF NAVAID capability - In addition to GPS guidance, full VHF navigation capabilities offer complete airspace system access, including VOR/ILS with localizer and glideslope
  • Auto-assist entry - When loading procedures, the GTN Xi series will pre-enter NAV frequencies to standby position for quick access. It also auto-selects the VHF NAV source for ILS approaches
  • Cleared for the visual - GTN Xi can give advisory visual approach guidance based on a published glidepath or a 3-degree slope from the runway threshold (with terrain/obstacle clearance)
  • Autopilot interface - Precise course deviation and roll steering outputs can be coupled to select autopilots, enabling virtually all IFR flight procedures to be flown automatically
  • Holding patterns - IFR pattern entries can be tricky. GTN 650Xi lets you easily create and execute holding patterns over a published or user-defined waypoint
  • Search and rescue - For aerial surveillance, common search pattern types — including orbit, parallel line, expanding square and sector search — can be loaded into your flight plan on the GTN 650Xi navigator*
  • Supports VNAV and more - With our GFC 500 and GFC 600, GTN 650Xi supports advanced modes and features such as vertical navigation profiles, radius-to-fix legs, missed approaches and more
  • Safetaxi database - Upon landing, georeferenced SafeTaxi diagrams on the display automatically help track your location on hundreds of airports
  • Built-in COMM Transceiver - A 2,280-channel capable VHF Comm radio gives GTN 650Xi a standard 10 watts (or optional 16 watts) of talking power with pilot-selectable 25 kHz or 8.33 kHz channel spacing
  • Find a frequency - A work-saving lookup function lets you enter any navaid or airport identifier and have the GTN Xi navigator look up the frequencies for that location (tower, ground, ATIS, clearance delivery, etc.)
  • Instant recall - GTN Xi database technology allows you to quickly recall your most frequently or recently used frequencies. Plus, holding down the volume knob will dial up the emergency frequency
  • Station confirmation - If you’re given a frequency by ATC, our GTN Xi lookup function will automatically provide the station identifier right below it. So you’ll know you’re making the right call
  • ADS-B data links - With available Garmin ADS-B “In” equipage solutions, GTN 650Xi can display up to 60 ADS-B traffic targets as well as subscription-free U.S. weather data
  • TargetTrend™ display - ADS-B based TargetTrend relative motion tracking on the GTN Xi display gives pilots a faster, more intuitive way of judging traffic closure rates and trajectories
  • TerminalTraffic™ display - Providing a dynamic display of ADS-B-equipped aircraft and ground vehicles, this technology helps pilots avoid traffic conflicts within the airport environment
  • Active traffic solutions - For more advanced traffic surveillance capability, GTN Xi can integrate with select TAS or TCAS/ACAS systems, including our GTS™ family of ADS-B enhanced products
  • SiriusXM service - When paired with an optional GDL® 69 datalink receiver, GTN Xi can incorporate SiriusXM satellite weather coverage — plus audio entertainment features (sold separately)
  • Worlwide communications - Want global weather, radar imagery and two-way text/voice communications from the air? Connect your GTN 650Xi with our optional GSR 56 satellite link (sold separately)
  • Connected Cockpit - between GTN Xi and compatible Garmin portables or mobile devices running the Garmin Pilot™ or FltPlan Go apps (sold separately)
  • Flight plan transfer - Save time by creating your flight plan on your mobile device at home, then use Connext* to wirelessly upload the data into your GTN Xi during preflight at the airport
  • Flight stream - In addition to GPS data, a compatible Connext wireless gateway (sold separately) can stream ADS-B traffic, weather and backup attitude data to your mobile device in real time*T
  • Designed as a direct slide-in upgrade to the original GTN650 display, with the following upgraded features:
    • Do-it-all touchscreen - Intuitive touchscreen interface provides quick access to navigation, radio tuning, multifunction display features and more
    • Lightning-fast response - Powerful dual-core processors boost the GTN Xi series graphical display capabilities - with faster zooming, panning and map rendering on the display
    • High-resolution display - With almost double the pixel count of its predecessor, the GTN Xi series features wider viewing angles and one of the highest-resolution displays ever offered in this class of avionics

  • Opt for helicopter specific GTN Xi capabilities:
    • NVG compatible display with some 200,000 more low-altitude obstaces in the database
    • Power line data - database includes more than 700,000 miles of power lines
    • Wireaware™ technology
    • HTAWS alerting - audible altering & five-color map shading, with voice callouts on descent below 500'
    • Radar Altimeter - when paired with a GRA 55
    • On-Scene Mode

*Optional feature; additional hardware may be required

SPECIFICATIONS
Dimensions: 6.25"W x 2.65"H x 11.25"D Display Size: 4.9" diagonal
Display Resolution: 834 pixels W x 370 pixels H Weight: 5.5 lbs
input voltage range: 11 VDC - 33 VDC Operating Temperature range: -20°C to 55°C
Number of GPS Channels: 15 (12 GPS and 3 GPS/WAAS/SBAS) LAT/LON position accuracy: <1.25 meter RMS horizontal
<2 meter vertical, with WAAS
Maximum velocity: 1,166 knots Position update interval: 0.2 secs (5 Hz)
TSO Applicability: C34e; 2C34f; C36e Class A; 2C36f Class A; C40c; 2C40c; C74d Class A; C112e; C128a; 2C128; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C169a Class C, E, 3, 4, 5, 6; 2C169a Class C, E, H2, 3, 4, 5, 6; C194; C195b Class B1, B3, B5, B7; C209
Part Number: Description:
010-01999-62 WAAS GPS/Nav/Comm (Helicopter NVG)



010-01999-62
- Touchscreen GPS/Nav/Com (Black
Price Condition Status
REQUEST NEW INSTALL ONLY
010-01999-66
- Touchscreen GPS/Nav/Comm (Black)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
