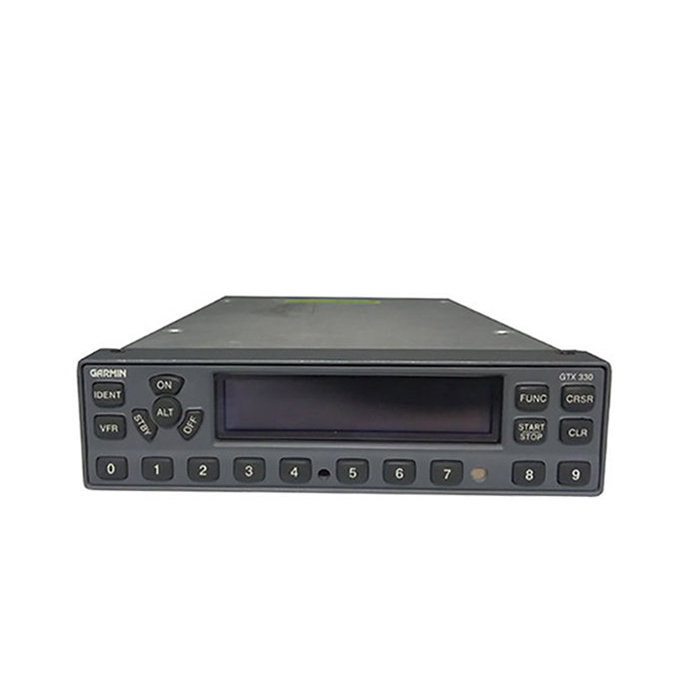

Picture of product GTX-330DES

Part #: 011-00455-90

Model: GTX-330DES

OEM:

Garmin

Desc:

Mode S Transponder w/ Diversity, Extended Squitter

Part Number :





GTX-330DES



FEATURES

  • Same as GTX-330D but includes Extended Squitter capability for ADS-B Out Compliance
  • Solid-state Mode S digital transponder with Level 2 datalink
  • Solid-state transmitter provides 200 watts nominal power output
  • Low power consumption, low heat emission, no warm up time
  • Easy-reading DSTN Liquid Crystal Display reverses yellow numbers out of black for optimal viewing
  • Dedicated VFR button allows for quick and easy 1200/VFR squawking
  • Offers timing functions such as flight time and count-up/down times
  • Outside air temperature (OAT) display (temp input required)
  • Density altitude computations (temp input required)
  • Altitude monitor with voice audio alert
  • Datalink provides Traffic Information Services (TIS) which receive traffic advisories and warnings from ATC to be displayed on MFD or GPS 400, GNC 420, GNS 430, GPS 500, and GNS 530
  • Available with black or gray face
  • Extended Squitter "ES" versions available for ADS-B Out capability (See PN Chart for details)



SPECIFICATIONS

TSO Compliance: C112, C112d, ETSO-C112D Temperature Range: -20C to +55C
Weight: 4.2 lbs installed w/rack & connectors Power Requirements: 11.0 to 33.0 VDC; Max power input: 27 watts
Altitude: 55,000 feet Transmitter Frequency: 1090 MHz
Transmitter Power: 250 watts nominal Receiver Frequency: 1030 MHz
Receiver Sensitivity: -74 dm nominal for 90% replies Mode A Capability: 4096 ident codes
Mode S Capability: 25 foot increments from -1000 to 62,700 feet Dimensions: 6.25"W x 1.65"H x 11.25"D



Part Number: Description:
011-00455-70 With Antenna Diversity, Extended Squitter, Black bezel
011-00455-90 With Antenna Diversity, Extended Squitter, Gray bezel



Serial # 84405514
Condition SVC
Mods 1,3
Tag Date 12/16/22
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 84406504
Condition SVC
Mods 1-3
Tag Date 12/09/22
Shop Southeast Aerospace Inc.
Warranty 6 Months
011-00455-70
- Mode S Transponder,Diversity, Ext Squitter (Black)
Price Condition Status
$3,775.00 SV OUTRIGHT 2 IN STOCK
$1,490.00 SV EXCHANGE 2 IN STOCK
011-00455-90
- Mode S Transponder, Diversity, Ext Squitter (Gray)
Price Condition Status
$3,750.00 SV OUTRIGHT 2 IN STOCK
$1,495.00 SV EXCHANGE 2 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
