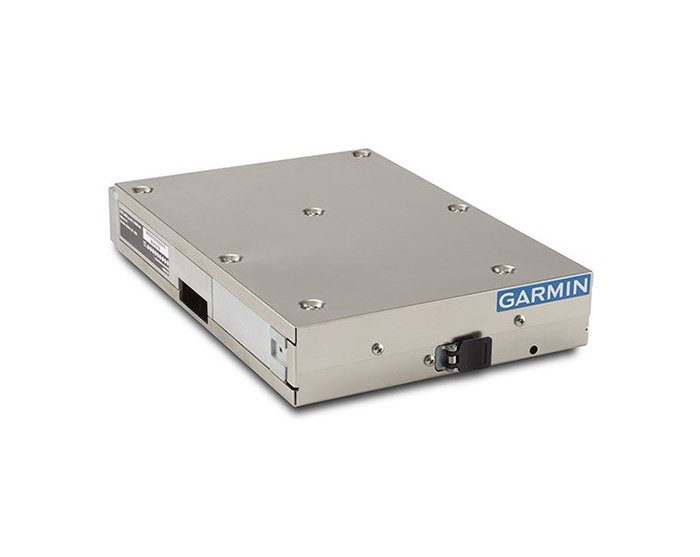

product image

Part #: 010-01756-01

Model: GTX-35R

OEM:

Garmin

Desc:

GTX-35R Remote Mount

Part Number :


GTX-35R



FEATURES

  • The GTX 35R ADS-B transponder integrates with Garmin G3X and G3X Touch to provides the ADS-B "Out" capability to control through your flight display
  • Uses the GSU 25 Air Data Attitude Heading Reference System (ADAHRS) for IFR altitude-encoding information
  • Integrates with G3X series flight displays for fingertip control and squawk code entry
  • Satisfies NextGen requirement for ADS-B “Out” when paired with a GPS position source
  • Provides 1090 MHz ES (Extended Squitter) output for operations at any altitude, in airspace around the world
  • Simplifies installation with remote-mount design that saves panel space
  • Offers low power consumption and enhanced reliability



SPECIFICATIONS

DIMENSIONS  (unit, rack, connectors): 1.65” x 6.30” x 9.9” (42 x 160 x 224 mm) Weight (unit, rack, connectors):  2.5/2.6 lbs (1.13/1.18 kg)
Voltage range:  14/28 VDC (15/17 W Max) Transmit power:  200 W minimum
Tempertaure:   -45°C to +70°C Operating altitude: 55,000 ft (16,800 m)
Cooling input: Not required Environmental Compliance (TSO Approved):  DO-160G
Software compliance (TSO Approved): DO-178 Levels B, C, D Squawk code selection: Remote entry
Hardware compliance (TSO Approved): DO-254 Level C; TSO compliance (Approved); TSO-C88b (w/opt. alt. encoder); TSO-C112e (Class 1, Level 2els); TSO-C145d (Class B2); TSO-C166b (Class B1S)” Mount type: Remote
Traffic Information Services (TIS) alerts compatible: Yes Transponder type: Mode A/C, S and ES
Solid state transmitter (more efficient, longer life): Yes (Transponder) Automatic ALT/GND mode: Yes (Transponder)
Aural alerts:  Yes (Transponder) 1090 MHz ADS-B Out: Yes (Transponder)
Part Number: Description:
010-01756-01 GTX-35R Remote Mount





TSO C144
010-01756-01
- Remote Mount Transponder
Price Condition Status
$2,199.00 NEW OUTRIGHT REQUEST LEAD TIME
