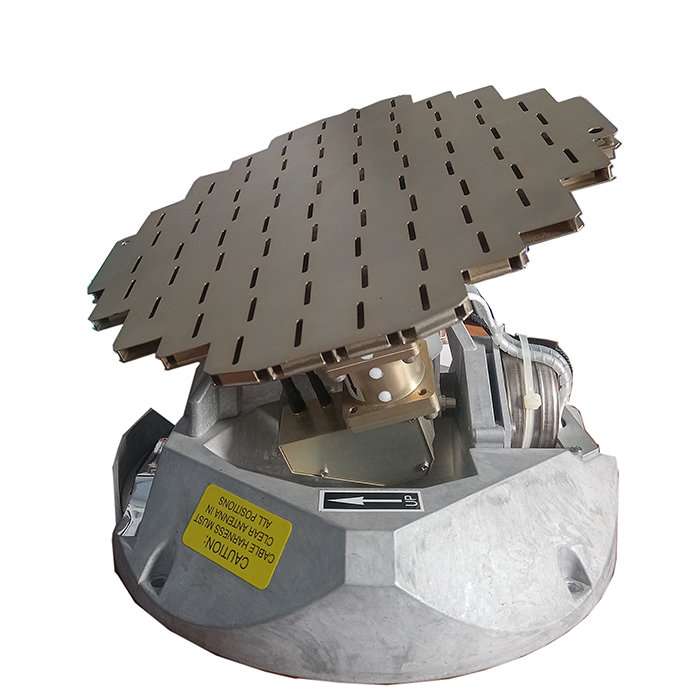

Picture of product GWX-68

Part #: 011-00883-20

Model: GWX-68

NSN:

5841-01-592-5958

OEM:

Garmin

Desc:

Weather Radar Sensor

Part Number :



GWX 68

FEATURES
  • Digital radar sensor available with 10 or 12 inch phased array antenna
  • Combines 320 nm range and adjustable scanning profiles with high-definition target display
  • Full radar stabilization to 30 degrees of pitch and roll (when interfaced to aircraft vertical gyro or AHRS system)
  • Pilot-adjustable horizontal scan angles of 20, 40, 60 or 90 degrees
  • Vertical scanning function for analyzing storm tops, gradients and cell buildup activity at various altitudes
  • Extended Sensitivity Time Control (STC) logic automatically correlates target distance with intensity
  • Garmin WATCH (Weather Attenuated Color Highlight) feature minimizes the "shadowing" effects of short-range cell activity
  • Automatic Target Alert feature looks ahead for intense cell activity in the 80-320 nm range
  • 6,500 watts magnetron power



SPECIFICATIONS

Ranges: 2.5, 5, 10, 20, 40, 60, 80, 100, 120, 160, 240 and 320 nm Vertical Scan Angle: 60 degrees
Altitude: 50000 ft. Input Voltage: 9-33 VDC, 56W max
Weight: 10"=9.0 lbs; 12"=9.1 lbs. Temperature: -55 to 70C
Display Colors: 4 Colors Interface: Garmin HSDB/ARINC 429/ARINC 453
Avoidance Range: 305nm w/ 12"; 270nm w/ 10" Performance Index: 213dB w/ 12"; 210dB w/ 10"
Part Number:  Description:
010-00299-01 Original Catalog PN, With 10" Antenna
010-00299-21 Original Catalog PN, With 12" Antenna
011-00883-00 Actual Unit PN, With 10" Antenna
011-00883-20 Actual Unit PN, With 12" Antenna



Serial # 47203980
Condition SV
Mods -
Tag Date 02/01/24
Shop Garmin
Warranty 6 Months
Serial # 47204479
Condition SV
Mods 1
Tag Date 01/23/24
Shop Garmin
Warranty 6 Months
011-00883-20
- Weather Radar (12")
Price Condition Status
$17,500.00 SV OUTRIGHT 2 IN STOCK
$5,250.00 SV EXCHANGE 2 IN STOCK
011-00883-00
- Weather Radar (10")

NSN: 5841-01-592-5958

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Southeast Aerospace recommends the Honeywell ART-2000 system for the following reasons:

- Cost - Aftermarket availability
- Installation flexibility
- Post-installation support

Most MFD, integrated avionics systems of glass cockpit systems that accept a weather radar input are compatible with the ART-2000. The Garmin GWX68 is not readily available on the used aftermarket and is higher in cost than the ART-2000 ($20995 vs. $18215 List Price). Furthermore, the Garmin GWX68 can only be serviced by the Garmin factory. Both systems offer most of the same desired features such as high power out, 90 degree scan, vertical profile scanning, and 10 or 12 inch antenna arrays
PLEASE NOTE - Publications are for Reference Only
