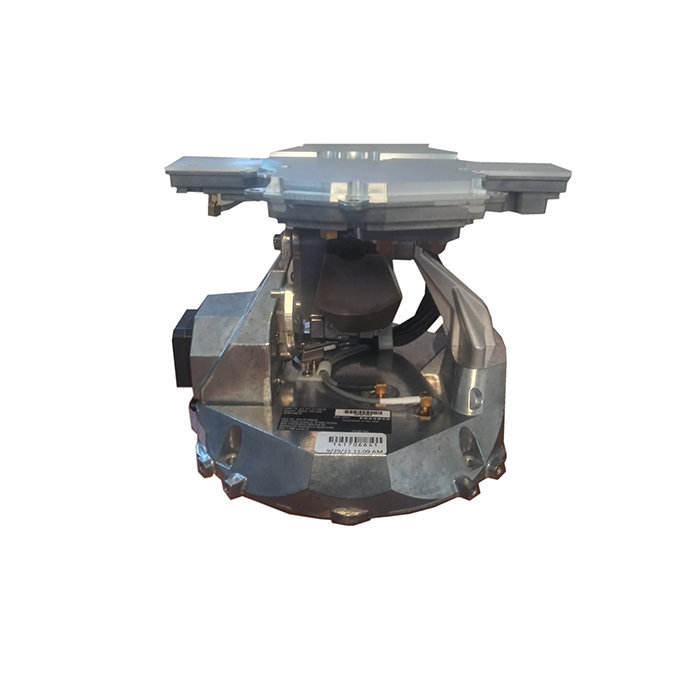

Picture of product GWX-70

Part #: 011-01768-00

Model: GWX-70

NSN:

5841-01-668-0709

OEM:

Garmin

Desc:

Weather Radar Receiver/Transmitter

Part Number :



GWX 70



FEATURES

  • Doppler Weather Radar
  • Advanced solid-state transmitter
  • All in one antenna/receiver/transmitter design
  • Available with various antenna sizes - see PN chart below for details
  • Collects real-time precipitation intensity
  • Horizontal scan angles of up to 120°, focus scanning on certain areas
  • Vertical scanning
  • Weather Attenuated Color Highlight (WATCH™) can identify areas beyond the radar's capability that may contain hazardous areas of precipitation
  • In most installations, the GWX70 is a direct replacement for the GWX68
  • Compatible with most Garmin Displays, including GTN 750/725, G1000, GMX200, MX20, G600/G500/G500H
  • When integrated with the aircraft's analog gyro or AHRS system, the GWX70 offers full radar stabilization to 30° of pitch and roll.
  • Ground mapping mode provides a real-time depiction of the terrain below you
  • Uses 40W of power
  • Additional software upgrades enable turbulence detection



SPECIFICATIONS
OPERATIONAL MODE: Weather (WX): green, yellow, read (Magenta is reserved for display of the optional turbulence detection function); Ground Mapping (MAP): Cyan, Yellow, Magenta, Blue  Display Ranges: 2.5, 5, 10, 20, 40, 80, 160 & 320 nm (MX20; GMX200); Selectable 2.5, 5, 10, 20, 40, 60, 80, 100, 120, 160, 240 & 320 nm (G1000, G600/500, GTN750 series)
Performance Index: 18" Antenna: 227 dB 12" Antenna: 221 dB 10" Antenna: 218 dB  Weather Avoidance: 18" Antenna: 320 nm max 12" Antenna: 320 nm max 10" Antenna: 285 nm max
RX sensitivity:  -126 dBm MDS  Manual gain: +12 to -64 dB (G1000; G600/G500; GTN 750 series); +3.5 to -28 db (MX20; GMX200)
Antenna bandwidth: 18" Antenna: 5.3° 12" Antenna: 7.8° 10" Antenna: 9.0°  Horizontal scan angle: Pilot adjustable: 20, 40, 60 or 120° (G1000; G600/G500; GTN750 series); 20 or 120° (MX20; GMX200)
Scan centerline: Pilot adjustable  Scan rate: 12 looks per minute
Manual tilt: ±15° Vertical scan angle: 60° (G1000; G600/500; GTN750 series); 10 - 60° (MX20; GMX200)
Mechanical Size: Width 8" Diameter Base Depth 6.3" Weight: with 18" antenna: 12.7 lbs with 12" antenna: 9.5 lbs with 10" antenna: 9.3 lbs
Operating temperature range: -55°C to +70°C Humidity: 95% non-condensing
Altitude Range: -1500 feet to 55000 feet TSO Compliance: C63d, Class 7
Environment Category: RTCA DO-160F Power Requirements: 14/28 Vdc; 2.0 amps
Transmitter Power: 40 Watts nom, 36 Watts max Output Frequency Range: X-Band (9.3 to 9.5 GHz)
Pulse Width: 1.6, 3.2, 6.4 or 13.6 Microseconds Pulse Width: 1.6, 3.2, 6.4 or 13.6 Microseconds
STC Logic: Effective to 80 nm Extended STC: 80 nm to 320 nm
Stabilization: ±30° combined pitch, roll and manual tilt Max Altitude: 55000 feet (unpressurized)
Target Alert: G1000, G600/G500 and GTN750 series only) Annunciates targets (between 80 and 320 nm) that are beyond displayed range on radar screen Interface: Garmin HSDB (G1000, G600/G500 and GTN750 install); ARINC 429/453 (MX20, GMX2000 install)




Part Number: Description:
010-00676-00 GWX70 with 10" Antenna & Install Kit
010-00676-01 GWX70 with 12" Antenna & Install Kit
010-00676-02 GWX70 with 18" Antenna & Install Kit
010-00676-03 GWX70 with 10" Antenna (Unit Only)
010-00676-04 GWX70 with 12" Antenna (Unit Only)
010-00676-05 GWX70 with 18" Antenna (Unit Only)
117-00254-00 10" Antenna Replacement
117-00254-01 12" Antenna Replacement
117-00254-02 18" Antenna Replacement



Serial # 1DP008193
Condition SV
Mods 1-2
Tag Date 10/09/23
Shop Garmin
Warranty 6 Months
011-01768-00
- Weather Radar Receiver/Transmitter

NSN: 5841-01-668-0709

Price Condition Status
$21,500.00 SV OUTRIGHT 1 IN STOCK
$6,500.00 SV EXCHANGE 1 IN STOCK
010-00676-03
- GWX70 w/10" Antenna (unit only)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-00676-04
- GWX70 w/12" Antenna (unit only)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-00676-05
- GWX70 w/18" Antenna (unit only)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The all-in-one antenna/receiver/transmitter unit is available in 10", 12" and 18" antenna arrays. This allows it to be easily installed on a wide variety of aircraft configurations.

The GWX-70 does not have a Pilot's Guide itself, information on the operation of the GWX-70 Radar system can be found in the GTN Pilot's Guide.

Ground Clutter Suppression reduces the amount of returns due to highly reflective objects on the ground, such as buildings or cities, while maintaining the intensity and size of weather returns. This feature requires an unlock that must be purchased to be displayed on the GTN-7XX series units.

Turbulence Detection activates a feature that detects and displays severe turbulence. This feature requires an unlock that must be purchased to be displayed on the GTN-7XX series units. Turbulence Detection is inactive at ranges greater that 160 NM. If Turbulence Detection is enabled and available, Turbulence Detection will be reported as Inactive in any of the following conditions:

• Scan orientation is not Horizontal
• Scan range is greater than 160 NM
• Radar mode is not Weather

Altitude Compensated Tilt (ALT) automatically adjusts the tilt of the radar to compensate for altitude changes as you climb and descend.

PLEASE NOTE - Publications are for Reference Only
