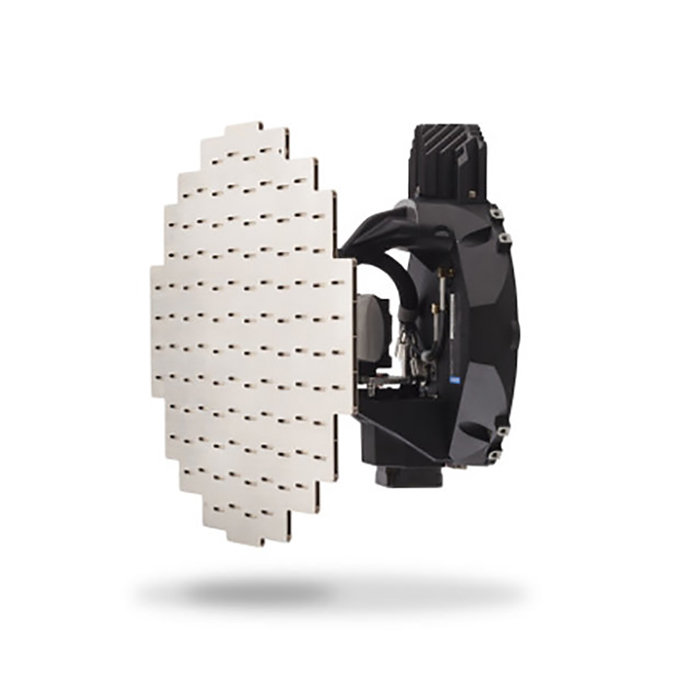

Picture of product GWX-75

Part #:

Model: GWX-75

OEM:

Garmin

Desc:

Weather Radar Transceiver

Part Number :


GWX-75
FEATURES
  • All-digital Garmin radar features high-definition color palette with up to 4 times more colors than traditional radars for more detailed contouring of storm cells
  • Combines full antenna stabilization¹ with horizontal scan angles up to 120 degrees
  • Optional Doppler-enabled turbulence detection and ground clutter suppression enable more precise weather interpretation
  • Ground mapping mode provides a real-time depiction of geographical features to aid in visual navigation
  • Fits a variety of aircraft radomes with 10" or 12" antenna sizes



SPECIFICATIONS

TSO COMPLIANCE: C63e, Class C ENVIRONMENTAL COMPLIANCE: RTCA/DO-160F
WIDTH: 11.7 in (29.7 cm) max. diameter at base WEIGHT: Unit with 10-Inch Antenna: 9.9 lb (4.52 kg), Unit with 12-Inch Antenna: 10.1 lb (4.59 kg)
ALTITUDE RANGE: -1,500 ft to 55,000 ft HUMIDITY: 95% non-condensing
ANTENNA: 10-Inch or 12-Inch in diameter flat plate INPUT VOLTAGE: 14/28 Vdc
INPUT CURRENT: 2.5 A @ 28v, maximum PERFORMANCE INDEX: 10-Inch Antenna: 218 dB, V
MANUAL GAIN: +12dB to -28dB VERTICAL SCAN ANGLE: 60 degrees
SCAN CENTERLINE: Pilot adjustable HORIZONTAL SCAN RATE: 12 looks/minute
SENSITIVITY TIMING CONTROL (STC): At all ranges WEATHER AVOIDANCE RANGE: 10-Inch Antenna: 285 nm max, 12-Inch Antenna: 320 nm max
DEPTH (WITH ANTENNA): 7.1 in (180 cm) PEAK POWER: 40 W nominal, 36 W minimum
TX FREQUENCY: 9300 MHz to 9500 MHz RX SENSITIVITY: -130 dBm MDS
HORIZONTAL SCAN ANGLE: 20, 40, 60, 90, or 120 degrees (Pilot adjustable) MANUAL TILT: +/- 15 degrees
Part Number: Description:
010-01589-00 Weather Radar Transceiver (10")
010-01589-01 Weather Radar Transceiver (12")
010-01589-10 Weather Radar Transceiver (10") Helicopter
010-01589-11 Weather Radar Transceiver (12") Helicopter



010-01589-00
- Weather Radar Transceiver (10")
Price Condition Status
REQUEST NEW INSTALL ONLY
010-01589-01
- Weather Radar Transceiver (12")
Price Condition Status
REQUEST NEW INSTALL ONLY
010-01590-20
- GWX Processor Receiver/Transmitter
Price Condition Status
REQUEST NEW INSTALL ONLY
