Part #:

Model: aera-760

OEM:

Garmin

Desc:

Portable Aviation GPS (North America)

Part Number :

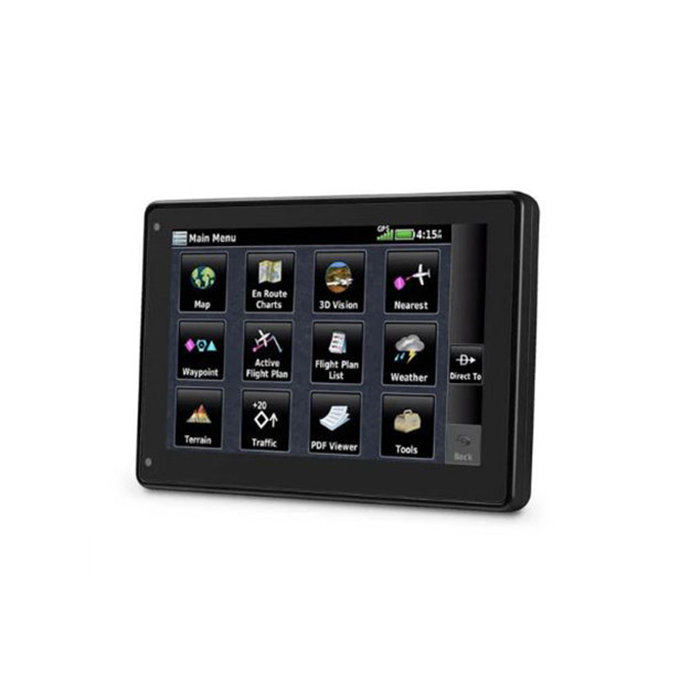

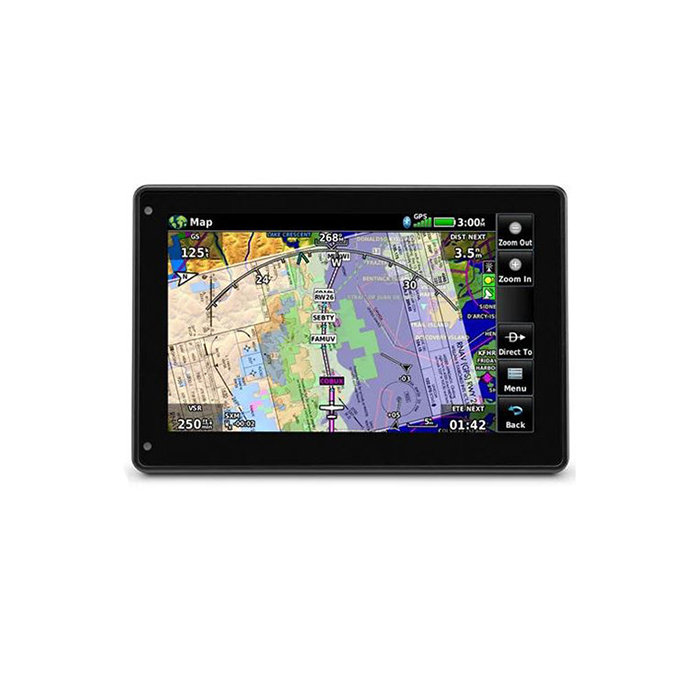

æra 760 Aviation Portable GPS
FEATURES
  • 7- inch bright, sunlight readable touchscreen display with comprehensive chart options in a compact and dedicated portable GPS
  • All in one aviation portable complete with built in GPS/GLONASS receiver that is optimized for the cockpit
  • Intuitive user interface
  • Capable of operating in harsh conditions, tested to meet stringent temperatures and vibration  standards
  • Pilot can load departures, arrivals and instrument procedures that can be tranferred wirelessly to a navigator in the cockpit
  • Built in WiFi and Bluetooth
  • 3D Vision technology display, Horizontal Situation Indicator (HSI)
  • The 760 provides fuel price information, an E6B flight computer and weight and balance calculators
  • Wire A ware wire-strike technology, overlays power line location



SPECIFICATIONS
Dimensions: 7.29”W x 4.85”H x 0.91”D (18.5 x 12.3x 2.3 cm) display Resolution:  WxH: 480 x 800; portrait and landscape orientation
DISPLAY SIZE:  7" diag (17.8 cm) Display type: touchscreen WVGA color TFT with white backlight
weight: 19.8 oz (561 g) battery:  Rechargeable lithium-ion
sbas/waas/glonass receiver:  high-sensitivity with WAAS position accuracy Battery life: Up to 4 hours during most daytime conditions, (80% backlight)
voltage range: 10-35 route data:  VFR/IFR
usb connection:  Yes (USB-C) EXPANDABLE MEMORY Yes (microSD™ cards)
Part Number: Description:
010-02303-00 Portable Aviation GPS, North America
010-02303-03 Portable Aviation GPS, South America





010-02303-00
- Portable Aviation GPS (North America)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-02303-03
- Portable Aviation GPS (South America)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
