Part #: 3614165-5512
Model: AA-5512B

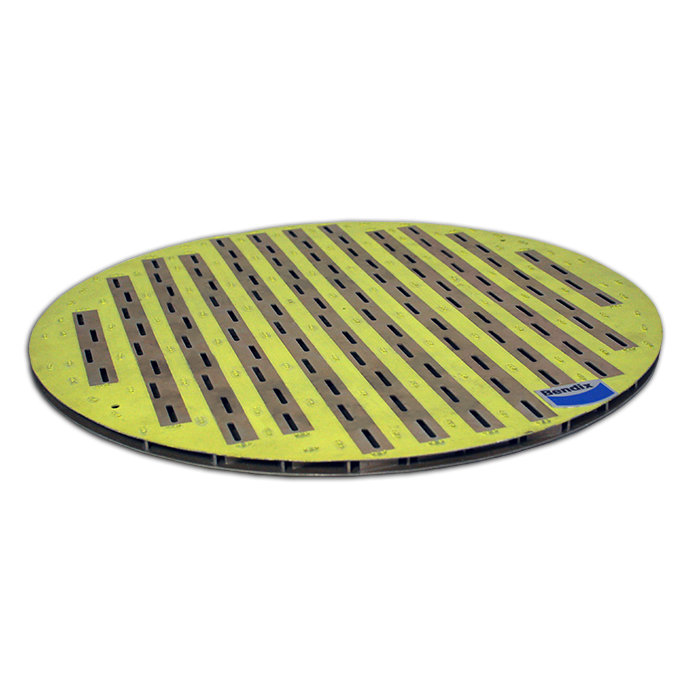

AA-5512B
FEATURES
- 12" phased array antenna
- Used on RDS-81/82/84/86 systems
- DO-173, DO-160A Env. Cat.
- F2A/JLY/XXXXXXXXXXX, C63c, Class 7
- King P/N 071-1317-00
SPECIFICATIONS
| D Max: | 12.05 | MIn gain: | 26.7 db |
| max beam width -3db: | 8.1° | max beam width -12db: | 15° |
| 1st sidelobe: | -22db Max | max input vswr: | 1.4 : 1 |
| power handling capability w/out pressurization: | 3KW at 55000 ft. | max weight: | 1.0 lbs |
| Part Number | array antenna Description: |
|---|---|
| 3614165-5512 | 12" Array Antenna / King PN: 071-1317-00 |
There are no Frequently Asked Questions at this time. Please contact us at questions@seaerospace.com if you have any questions for us to answer.
| Serial # | K3787 |
|---|---|
| Condition | SVC |
| Mods | - |
| Tag Date | 02/19/19 |
| Shop | Southeast Aerospace Inc. |
| Serial # | K3795 |
|---|---|
| Condition | SVC |
| Mods | - |
| Tag Date | 02/19/19 |
| Shop | Southeast Aerospace Inc. |
| Serial # | K2976 |
|---|---|
| Condition | SVC |
| Mods | None |
| Tag Date | 10/02/18 |
| Shop | Southeast Aerospace Inc. |
| Serial # | K1974 |
|---|---|
| Condition | SVC |
| Mods | NONE |
| Tag Date | 05/11/18 |
| Shop | Southeast Aerospace Inc. |
| Serial # | 89 |
|---|---|
| Condition | SVC |
| Mods | NONE |
| Tag Date | 03/19/18 |
| Shop | Southeast Aerospace Inc. |
| Serial # | K2645 |
|---|---|
| Condition | SVC |
| Mods | None |
| Tag Date | 10/06/17 |
| Shop | Southeast Aerospace Inc. |
| Serial # | K1975 |
|---|---|
| Condition | SVC |
| Mods | NONE |
| Tag Date | 01/13/17 |
| Shop | Southeast Aerospace Inc. |
| Serial # | K2135 |
|---|---|
| Condition | SVC |
| Mods | NONE |
| Tag Date | 07/27/16 |
| Shop | Southeast Aerospace Inc. |
| Serial # | K2866 |
|---|---|
| Condition | SVC |
| Mods | NONE |
| Tag Date | 07/27/16 |
| Shop | Southeast Aerospace Inc. |
| Serial # | K3147 |
|---|---|
| Condition | SVC |
| Mods | None |
| Tag Date | 02/12/16 |
| Shop | Southeast Aerospace Inc. |
| Serial # | K4354 |
|---|---|
| Condition | SVC |
| Mods | None |
| Tag Date | 01/07/16 |
| Shop | Southeast Aerospace Inc. |
| Serial # | K2457 |
|---|---|
| Condition | SVC |
| Mods | None |
| Tag Date | 12/10/15 |
| Shop | Southeast Aerospace Inc. |
| Serial # | K3471 |
|---|---|
| Condition | SVC |
| Mods | None |
| Tag Date | 10/14/15 |
| Shop | Southeast Aerospace Inc. |
| Serial # | K2878 |
|---|---|
| Condition | SVC |
| Mods | None |
| Tag Date | 09/23/15 |
| Shop | Southeast Aerospace Inc. |
| Serial # | K585 |
|---|---|
| Condition | SVC |
| Mods | none |
| Tag Date | 04/08/15 |
| Shop | Southeast Aerospace Inc. |
