Part #: MI-585202

Model: AP-4001

NSN:

5985-01-432-7739

OEM:

Honeywell

Desc:

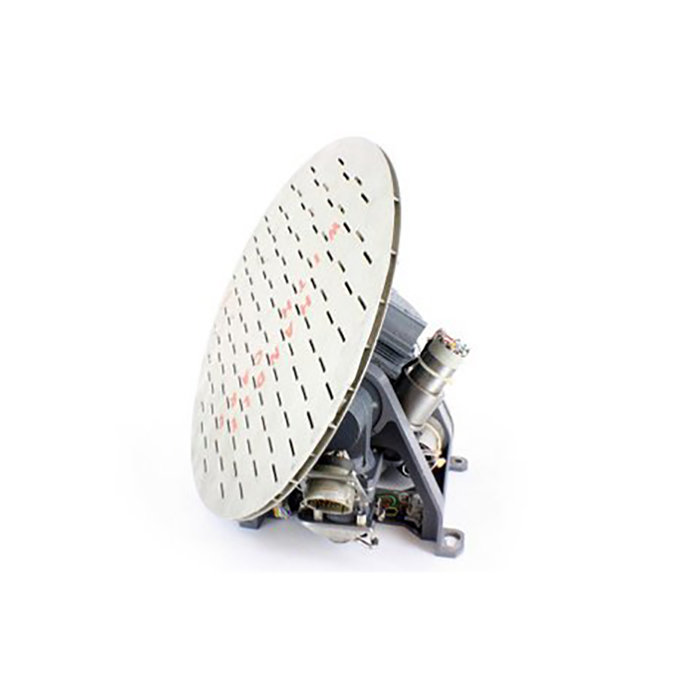

Radar Antenna

Part Number :


AP-4001
FEATURES
  • Radar antenna pedestal used in Primus 400 and Primus 400SL Radar Systems
  • Normally equipped with 12" flat-plate phased array but 18" flat-plate also available
  • Switch provided to stop antenna scanning during testing
  • Provides line-of-sight stabilization
  • Pedestal configuration available with waveguide mating flange and main connector on top of pedestal (see table below)
  • Pedestal available with flange and connector on bottom of pedestal (see table below)
  • Pedestal available with offset flange and connector on top of pedestal (see table below)
SPECIFICATIONS
Dimensions: 9.3"W x 8.27"H x 5.438"D (figures do not include flat plate) Weight: 7.8
TSO: Category D2AJXXXXXXXABBBB
Part NumberRadar Antenna Description:
MI-585202 Waveguide flange and mating connector on top of pedestal
MI-585202-1 Waveguide flange and mating connector on bottom of pedestal
MI-585202-4 Waveguide flange offset and mating connector on bottom



MI-585202
- Radar Antenna

NSN: 5985-01-432-7739

Price Condition Status
REQUEST RFQ REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

As of January 2010, the only Multi Function Displays that are compatible with the Primus 300 or Primus 400 radar systems are the Honeywell MFRD and the Universal MFD-640. For pricing and additional information on these MFDs, please submit an RFQ to SEA today.


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
