Part #: MI-585302

Model: AP-5001

Honeywell - Radar Antenna

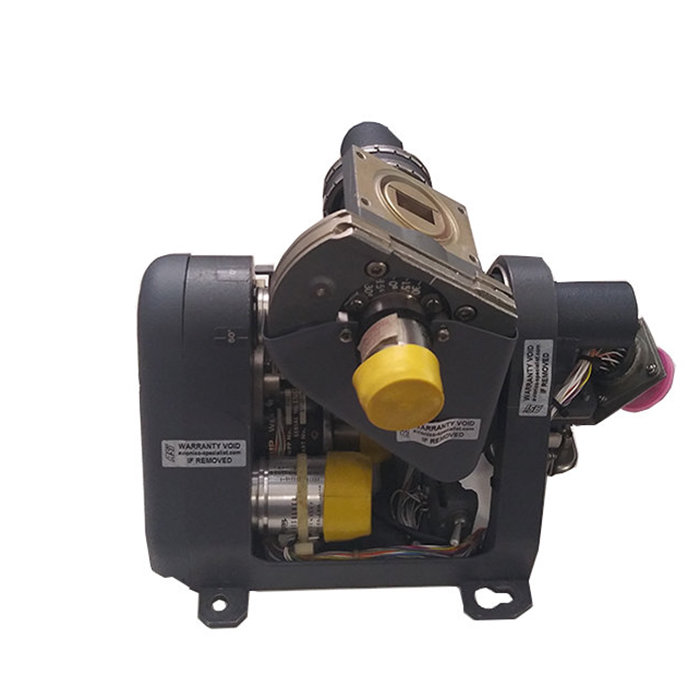

product image
Part Number :


AP-5001
FEATURES
  • Radar antenna pedestal used in Primus 500 Radar System
  • Normally equipped with 12" flat-plate phased array but 18" flat-plate also available
  • Switch provided to stop antenna scanning during testing
  • Provides line-of-sight stabilization
  • Pedestal configuration available with waveguide mating flange and main connector on top side of pedestal (see table below)
  • Pedestal available with flange and connector on bottom of pedestal (see table below)



SPECIFICATIONS
Dimensions: 9.3"W x 9.06"H x 5.438"D (figures do not include flat plate and are not exact) Weight: 7.8 lbs.
TSO: DO-138 - Category AA/JN/AAAXXXXXX DO-160A - Cat. D2AYXXXXXXA/BE/BBB
Part NumberRadar Antenna Description:
MI-585302 Waveguide up
MI-585302-1 Waveguide down



MI-585302
- Radar Antenna
Price Condition Delivery
$2,750.00 OH OUTRIGHT RFQ
$1,750.00 OH EXCHANGE RFQ

SEA Repair Capabilities: Yes

MI-585302-1
- Radar Antenna
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.
