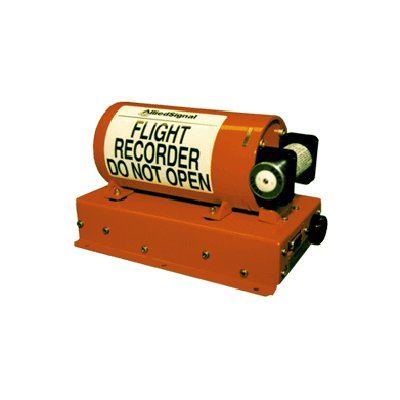

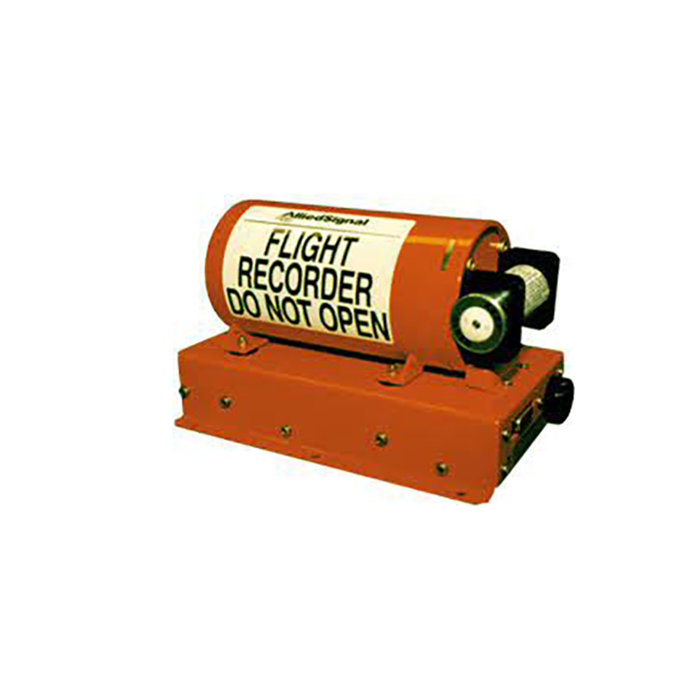

Picture of product AR-602C

Part #: 980-6021-032

Model: AR-602C

NSN:

6610-01-545-2822

OEM:

Honeywell

Desc:

Combination CVR/FDR

Part Number :



AR-602C
FEATURES
  • Advanced LIghtweight crash survivable Solid State Combination flight data and voice recorder
  • Non-ARINC form factor
  • Intended for installation in general aviation aircraft and helicopters
  • 60 minutes of voice recording
  • Capbale of recoding 2 crew channels and 1 area microphone channel
  • Records 10 hours of flight data information at rate of 128 words per second
  • Chassis consists of three easily replaceable (SRUs) - Controller board, Crash Survivable Memory Unit (CSMU) and Input and Power Supply board
  • 28 Volt
  • Underwater Locator Beacon (ULB)
  • Does not require installation rack since chassis has a flange that assists in attaching unit directly to airframe using 6 pan head screws P/N MS51958-63 or equivalent
  • Unit mates with KJ6F16N35S (Cannon #) or 440-0674-007 (Honeywell #) crimp connecor kit



SPECIFICATIONS

Temperature Range: -55 to 70 Altitude: 50000 ft.
Weight: 9.2 lbs. Dimensions: 4.88"W x 5.60"H x 9.15"L
Recording Rate: 128 words per second TSO: 124a/ED-56a
Part Number: Description:
980-6021-032 Avanced Combination CVR/FDR



980-6021-032
- Combination CVR/FDR

NSN: 6610-01-545-2822

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
