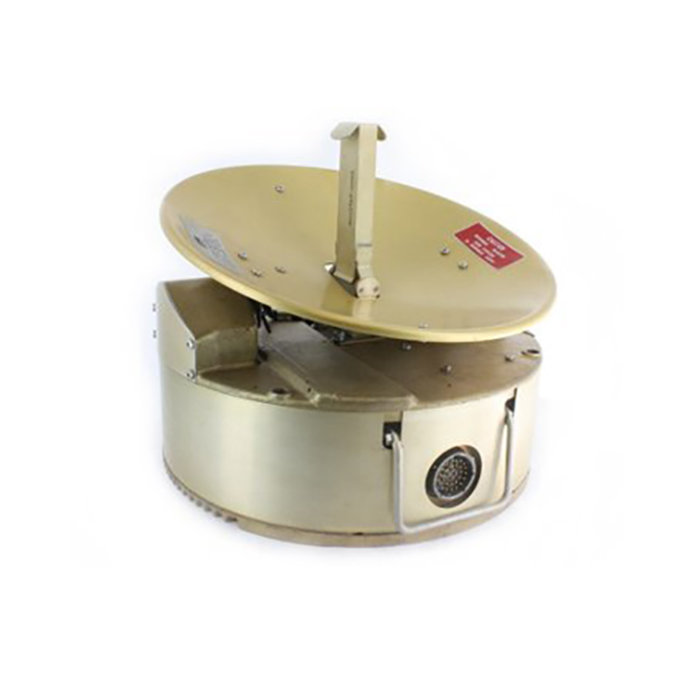

Model: ART-161A

Honeywell - Radar Antenna/RT
Part Number :


ART-161A
FEATURES
  • Combined Radar Antenna-Receiver-Transmitter unit used in color and monochrome RDR-160 Monochrome and RDR-160 Color radar systems
  • 10 or 12 inch radar parabolic reflector available (see table below)
  • Rear or side mounted connector available (see table below)
  • Models available that are monochrome system compatible only (see table below)
  • Models available that are monochrome and color system compatible (see table below)
  • 6 kW peak pulse power output (typical)
  • Ideal for radar interface to Avidyne EX500 Multi-Function Display
SPECIFICATIONS
RF Power Output: 6 kW peak power Power Source: 28VDC, capable of 3.5 amps continuous
Frequency: (X-Band) 9375 MHz +-35 MHz Pulse Width: 3.5 usec
Scan Angle: 90 deg. (electrical); 50 deg. (mechanical) Antenna Scan Rate: 22.5 deg/second
Pulse Repetition Frequency: 100 Hz (jittered) Noise Figure: 8.0 dB
STC: 20 miles with 10 and 12-inch antennas Iso-echo: Operates 16.0 dB above MDS
Antenna Sizes: 10 & 12" (parabolic) Antenna Gain: 12=26.5 dB; 10"=25.0dB
Elevation Angle: Manual tilt +-15 deg.
Part NumberRadar Antenna-Receiver-Transmitter Description:
4001018-6101 monochrome compatible, 10-inch antenna, rear mounted power/data connector
4001018-6102 monochrome compatible, 10-inch antenna, side mounted power/data connector
4001018-6103 monochrome compatible, 12-inch antenna, rear mounted power/data connector
4001018-6104 monochrome compatible, 12-inch antenna, side mounted power/data connector
4001018-6105 monochrome & color compatible, 10-inch antenna, rear mounted power/data connector
4001018-6106 monochrome & color compatible, 10-inch antenna, side mounted power/data connector
4001018-6107 monochrome & color compatible, 12-inch antenna, rear mounted power/data connector
4001018-6108 monochrome & color compatible, 12-inch antenna, side mounted power/data connector


PLEASE NOTE:
THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



4001018-6108
- Radar Transceiver
Price Condition Delivery
$4,700.00 SV OUTRIGHT IN STOCK

SEA Repair Capabilities: Yes

4001018-6101
- Radar Transceiver
Price Condition Delivery
CALL OR RFQ SV OUTRIGHT RFQ

SEA Repair Capabilities: Yes

4001018-6102
- Radar Transceiver (10")
Price Condition Delivery
CALL OR RFQ SV OUTRIGHT RFQ

SEA Repair Capabilities: Yes

4001018-6103
- Radar Transceiver
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

4001018-6104
- Radar Antenna/RT
Price Condition Delivery
CALL OR RFQ SV OUTRIGHT RFQ

SEA Repair Capabilities: Yes

4001018-6105
- Radar Transceiver
Price Condition Delivery
CALL OR RFQ SV OUTRIGHT RFQ

SEA Repair Capabilities: Yes

4001018-6106
- Radar Transceiver
Price Condition Delivery
CALL OR RFQ SV OUTRIGHT RFQ

SEA Repair Capabilities: Yes

4001018-6107
- Radar Transceiver
Price Condition Delivery
CALL OR RFQ SV OUTRIGHT RFQ

SEA Repair Capabilities: Yes

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Any version of the Bendix/King ART-161A is compatible with the EX500 Multi Function Display. The correct version of the EX500 MFD must be ordered from Avidyne compatible with the RDR-160 radar.
As part of our promise to provide the most honest, quality service to our customers, Southeast Aerospace adheres to strict guidelines for certification according to the FAA and Original Equipment Manufacturers (OEM). While most avionics components do not include a prescribed overhaul procedure in the Maintenance Manual, the FAA has set forth guidelines for the cleaning and inspecting of components as referenced in FAR Part 43.2. Therefore, if a component cannot meet the standards of this Federal Air Regulation in relation to inspection criteria and cleaning potential then it should not be deemed as Overhauled. Southeast Aerospace does not believe in simply providing words on a tag or maintenance release to represent the condition of a component. SEA stands behind the work and service followed through with each and every FAA 8130-3 maintenance release it provides.
The IN-132A and IN-152A monochrome indicators are compatible with all versions of the ART-161A. The IN-232A, IN-2026A, and IN-2028A color indicators are compatible with -6105 thru -6108 ART-161A versions. The IN-1102A, IN-1202A/B monochrome and IN-2021A, IN-2027A color indicators are also compatible for testing only with scan disabled.
Weather radar transceivers use a magnetron which is basically a cathode emission device. The magnetron is subject to deteriorization due to aging. Therefore, it is recommended to perform some type of periodic maintenance to detect and correct the effects of aging. This reduces the chance of an in-service failure.

An annual, routine test of the following parameters should made:

- Power output
- Transmitter frequency
- AFC voltage
- Sensitivity (MDS)

Ideally, the test should take place between December and March prior to the peak thunderstorm season.
Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.
