Model: C-14

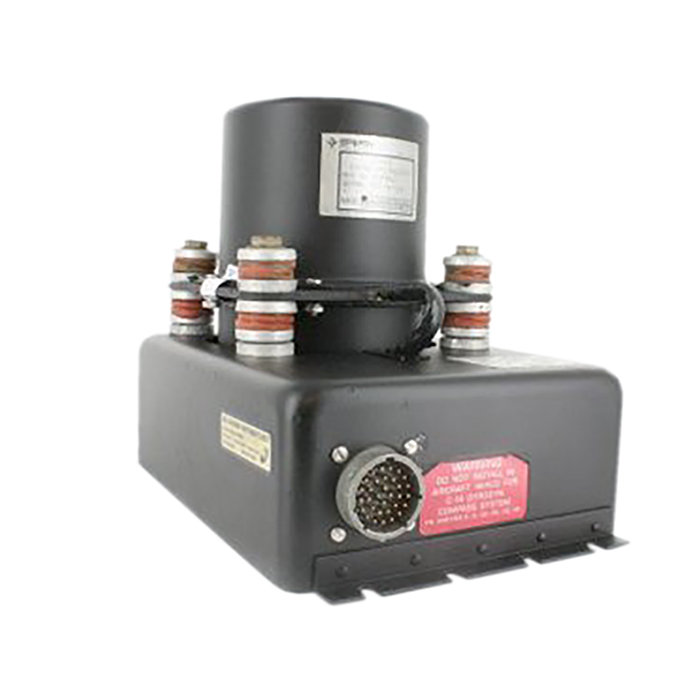

Honeywell - Directional Gyro
product image
Part Number :


C-14
FEATURES
  • Self-contained directional gyro and amplifier assembly that provides gyro-stabilized heading reference for compass system
  • Gyro and amplifier assembly contained in the cylindrical housing
  • Synchronizer assembly contained in the base
  • Electrically driven gyro
  • Can be operated in free gyro mode with connector pin modification
  • Versions available with and w/o flux valve control transformer incorporated to route output from flux valve (see table below)
  • Versions available with additional heading transmmitter to provide additional 3-wire (ARINC) heading info (see table below)
  • Versions available with clutched potentiometer to provide automatic pilot heading hold function (see table below)
  • Similar to C-14A gyro but has synchronizer located in base not cylindrical housing as C-14A is
SPECIFICATIONS
Dimensions: 7.219"H x 6.0"W x 9.032"L Weight: 5.5 lbs.
Power Requirements: 115V, 400Hz, 40VA starting, 30VA running Gimbal Vertical Axis Freedom: 360 deg.
Gimbal Horizontal Axis Freedom: +-85 deg. Slaved Accuracy: +-2 deg.
Gyro Free Drift: +-24 deg/hr Slaving Rate: 2.5-5.0 deg/min
Slew Rate: 30 deg/min
Part NumberDirectional Gyro Description:
2587193-1 One heading transmitter, flux valve control transformer
2587193-2 One heading transmitter, clutched potentiometer, flux valve control transformer
2587193-3 Two heading transmitters, flux valve control transformer
2587193-4 One heading transmitter
2587193-5 One heading transmitter, clutched potentiometer
2587193-6 Two heading transmitters
2587193-7 Two heading transmitters, flux valve control transformer
2587193-9 Two heading transmitters, flux valve control transformer
2587193-21 One heading transmitter, flux valve control transformer
2587193-22 One heading transmitter, clutched potentiometer, flux valve control transformer
2587193-23 Two heading transmitters, flux valve control transformer
2587193-24 One heading transmitter
2587193-25 One heading transmitter, clutched potentiometer
2587193-26 Two heading transmitters
2587193-33 Two heading transmitters, flux valve control transformer
2587193-36 Two heading transmitters



PLEASE NOTE:
THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET
