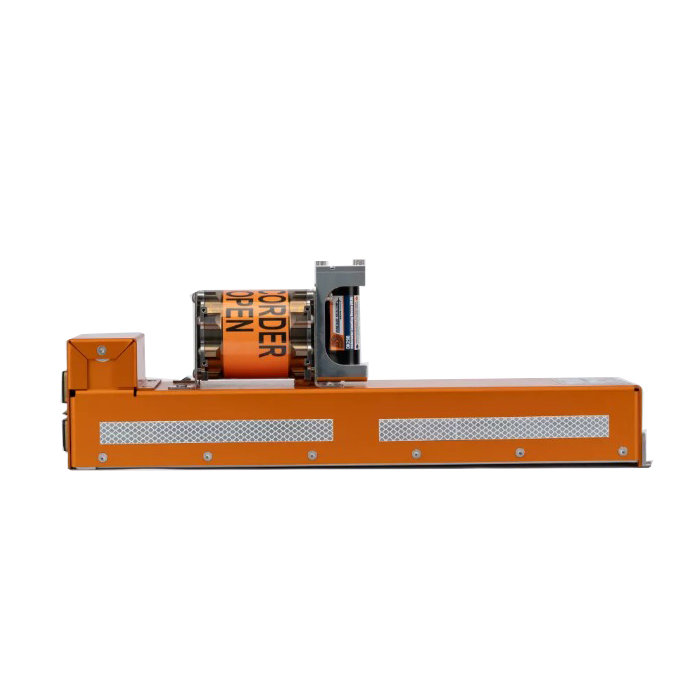

Picture of product HCR-25 CVR
Part #: 69004751-002
Model: HCR-25 CVR
OEM: Honeywell
Part Number :




HCR-25 CVR

FEATURES

  • Compatible with multiple Boeing aircraft models
  • Enables real-time data access for maintenance insights
  • Quick data access for emergency investigations
  • Continuous data access for proactive maintenance planning
  • Provides valuable insights into flight operations
  • Exceeds regulatory requirements for cockpit voice recording
  • Compatible with a wide range of aircraft models



SPECIFICATIONS

Dimensions:

506.2 x 124 x 178.2 mm

 Weight:

4.75 kg

Size ATR: 1/2 ATR long Recording Duration:   25 hours
Power Requirements:  115 VAC, 400Hz or +28 VDC Temperature Range:  Non-operating: -55°C to +85°C, Operating: -55°C to +70°C
Power Consumption: 13 Watts max Industry Standards: ARINC 717, ARINC 747
ARINC 429 Output:  1x OMS Ethernet: 100Mbit/s
Connector Types:  GSE (Front) D-sub 15pins, Main (Rear) DPX2-37065-108 ARINC 429 Input: 1x OMS
Ethernet:  100Mbit/s ARINC 717:  1x up to 4096wps
Digital Output: 2x (FDR Status, FDR Maint) milliampere Digital Input: 1x (FDR Inhibit)
(E)TSO Functions: ETSO-C121b (90-days ULB) ETSO-C124c Usually purchased With: 69001074-080, 952-0051-002




Part Number: Description:
69004751-002 CVR (25 Hours, 115VAC, 400Hz)







69004751-002
- CVR (25 Hours, 115VAC, 400Hz)
