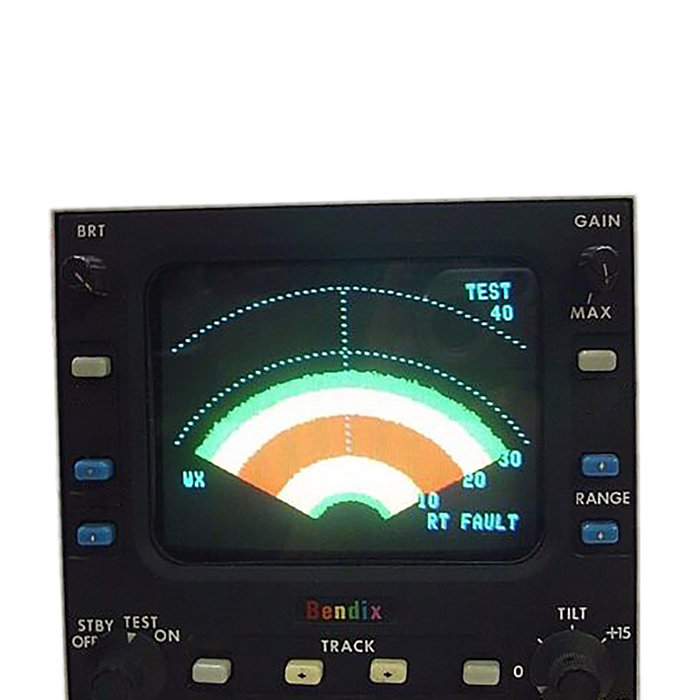

IN-1152A

FEATURES

• Bendix 4 color radar indicator used in RDR-1150HP system
• Low profile design
• Provides continuous color display of weather in addition to ground mappping
• Display Range/Range Marks of 5/1.25,10/2.5,20/5,40/10,80/20,160/40,320/80
• Utilizes digital memory storage
• Utilizes magnetic shield dust cover
• Available with 5 or 28 Volt panel lighting (see table below)
• Available with black or gray panel color (see table below)

SPECIFICATIONS

Dimensions:	6.25"W x 4.70"H x 12.06"L	Weight:	10 lbs.
TSO:	DO-160A Env. Cat./A1B1/A/PKS/XXXXXXABABA Class 7	Altitude:	20000 ft.

Part Number	Color Radar Indicator Description:
4001922-5201	Black panel, 28V panel lighting
4001922-5202	Gray panel, 28V panel lighting
4001922-5203	Black panel, 5V panel lighting
4001922-5204	Gray panel, 5V panel lighting

PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET
