Model: IN-1202A

Honeywell - Radar Indicator

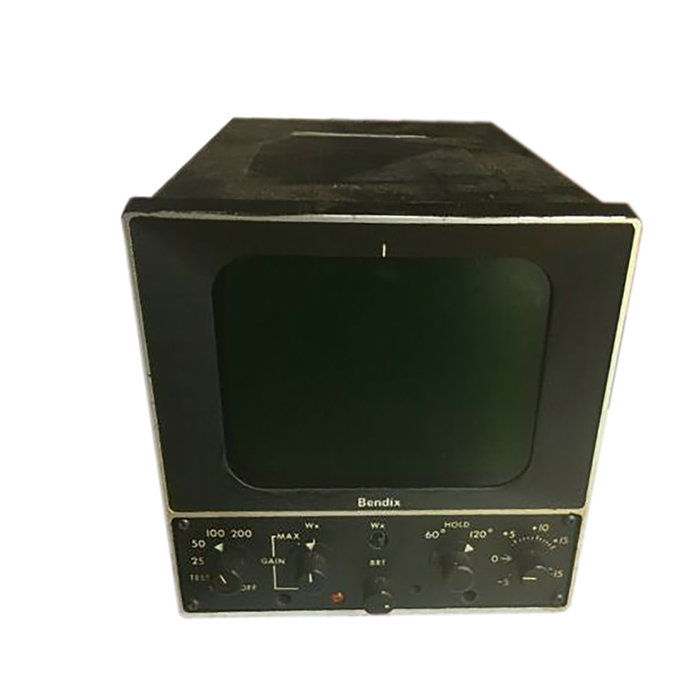

product image
Part Number :


IN-1202A
FEATURES
  • Monochrome Radar Indicator used in RDR-140 and RDR-1200 3-piece Bendix radar systems
  • Standard size design
  • Provides steady, non-fading display of weather and ground targets with digital memory storage
  • Contains front panel selections of power, range, tilt of antenna, receiver gain control, hold, self-test, and stab adjust
  • Models available with 5 and 28 Vdc panel lighting (see table below)
  • Model available with gray face and black knobs (see table below)
  • Models available with magnetic shield dust cover to shield unit from magnetic field interference (see table below)
  • Models available selectable range controls of [25,50,100, or 200 miles] OR [5,10,25,50,100 and 200 miles] - (see table below)
SPECIFICATIONS
Dimensions: 6.25" x 6.25" x 10.38" Weight: 7.8 lbs.
Pressurization: None required TSO: C63b DO-138 Env. Cat. CAKAAAXXXXXX
Part NumberMonochrome Radar Indicator Description:
4000503-0201 28V dc panel lighting, black knobs and face
4000503-0202 28V dc panel lighting, gray face
4000503-0203 5V dc panel lighting, black knobs and face
4000503-0204 5V dc panel lighting, gray face
4000503-0205 5V dc panel lighting, gray face, magnetic dust cover
4000503-0241 28V dc panel lighting, black face, RDR-140 version
4000503-0242 28V dc panel lighting, gray face, RDR-140 version
4000503-0251 28V dc panel lighting, black face, selectable ranges of 5,10,25,50,100 and 200
4000503-0252 5V dc panel lighting, black face, selectable ranges of 5,10,25,50,100 and 200
4000503-0253 Special panel lighting for Beechcraft, black face


PLEASE NOTE:
THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



4000503-0201
- Radar Indicator

NSN: 5895-01-01-3518

Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

4000503-0203
- Radar Indicator

NSN: 5841-01-381-4565

Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

4000503-0204
- Radar Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

4000503-0205
- Radar Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

4000503-0206
- Radar Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

4000503-0241
- Radar Indicator
Price Condition Delivery
$995.00 SV OUTRIGHT RFQ

SEA Repair Capabilities: Yes

4000503-0251
- Radar Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes

4000503-0253
- Radar Indicator
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: Yes
