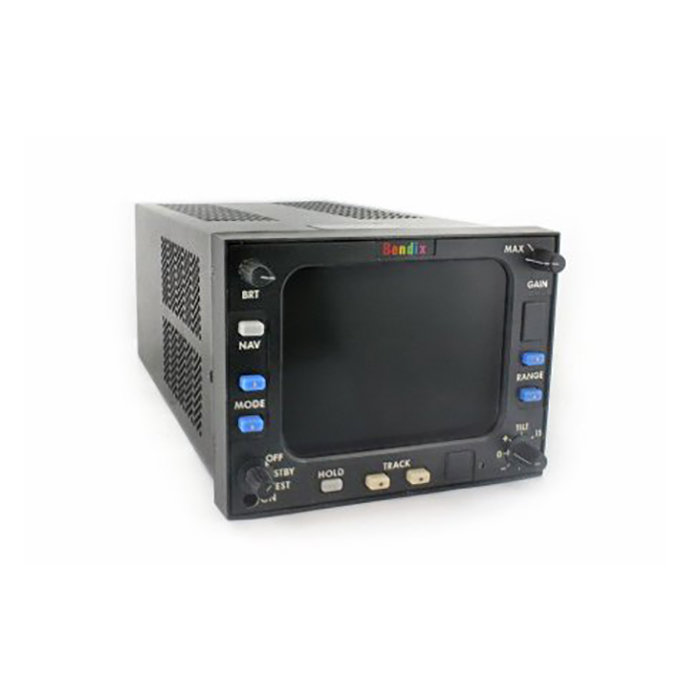

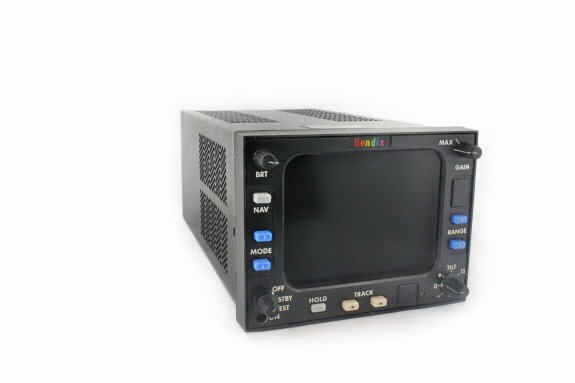

IN-2026A

FEATURES

• Bendix 3 color radar indicator used in 2 and 3 piece systems
• Low profile design
• Provides continuous color display of weather in addition to ground mappping
• Display Range/Range Marks of 10/2.5, 20/5, 40/10, 80/20, 160/40
• Utilizes digital memory storage
• Utilizes magnetic shield dust cover
• Available with 14 or 28 Volt panel lighting (see table below)

SPECIFICATIONS

Dimensions:	6.25"W x 4.70"H x 12.06"L	Weight:	10 lbs.
Pressurization:	None required	TSO:	DO-160 Env. Cat. /A1B1/A/MOP/XXXXXXABABA

Part Number	Color Radar Indicator Description:
4001294-2601	Black panel, 28V panel lighting, with System I/O Board
4001294-2602	Black panel, 14V panel lighting, with System I/O Board
4001294-2603	Black panel, 28V panel lighting, without System I/O Board
4001294-2604	Black panel, 14V panel lighting, without System I/O Board
4001294-2605	Black panel, 28V red panel lighting, with System I/O Board

PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET
