Model: IN-831A

Honeywell - HSI
product image
Part Number :


IN-831A
FEATURES

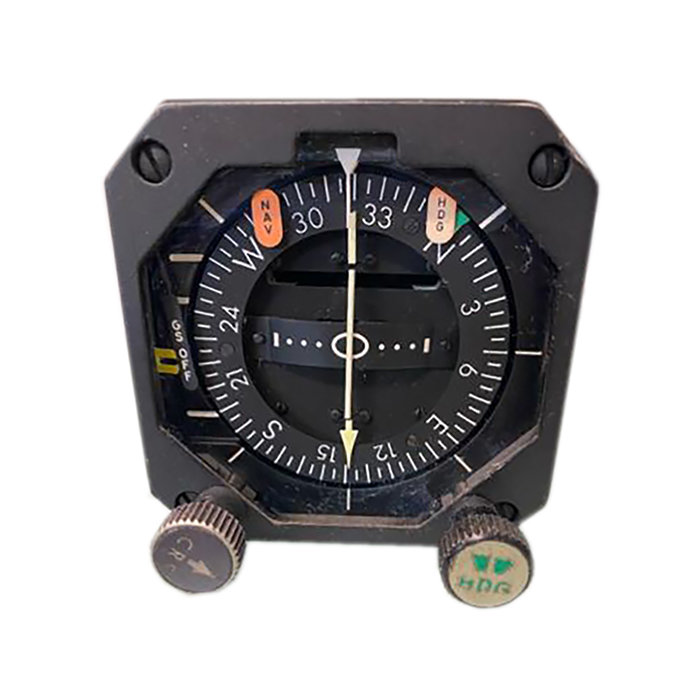

  • Horizontal Display Indicator used in Bendix HSD-830 Compass System
  • Provides heading displayed on servo-driven compass card which repeats any ARINC XYZ heading source
  • Heading select knob (HDG) used to set heading pointer with respect to compass card
  • Course select knob (CRS) orients course pointer and lateral deviation bar
  • Fixed aircraft symbol relates aircraft position to course deviation bar
  • Warning flags for glideslope display (GS OFF), heading source (HDG), and VOR/LOC navigation source (NAV)
  • TO-FROM indication (white arrows in center of display)
  • Internal lighting
  • Models available with course datum synchro and heading select synchro for autopilot use (see table below)
  • Models available with bootstrap transmitter synchro to supply standard ARINC XYZ heading information to other systems (see table below)
  • Models available with deviation needle and CRS knob lettering in white instead of yellow (see table below)
  • Model available that is wired for Mitchell autopilot (see table below)
SPECIFICATIONS
Power Requirements: 26VAC 400Hz sine wave, 17VA slewing. 8VA normal Weight: 3.2 lbs. (normal)
Meter Movement: (Left-Right) Standard ARINC deviation. 150-0-150uA 1000 ohm Meter Movement: (To-From flag) 200 ohm (200 +-40uA)
Meter Movement: (Warning Flag NAV) 1000 ohm (245uA +-10uA) Meter Movement: (Up-Down GS) Standard ARINC deviation 1000 ohm
Meter Movement: (Warning flag) 1000 ohm (245 +-10ua)
Part NumberHSI Description:
4000172-8501 Basic model with basic features listed above
4000172-8502 Same as -8502 but also includes synchros for autopilot use
4000172-8503 Includes synchros for autopilot use and bootstrap
4000172-8505 Same as -8503 but wired for Mitchell Autopilot
4000172-8512 Same as -8502 but has white lettering for dev. needle and CRS knob
4000172-8513 Same as -8503 but has white lettering for dev. needle and CRS knob
