Part #:

Model: RA-215

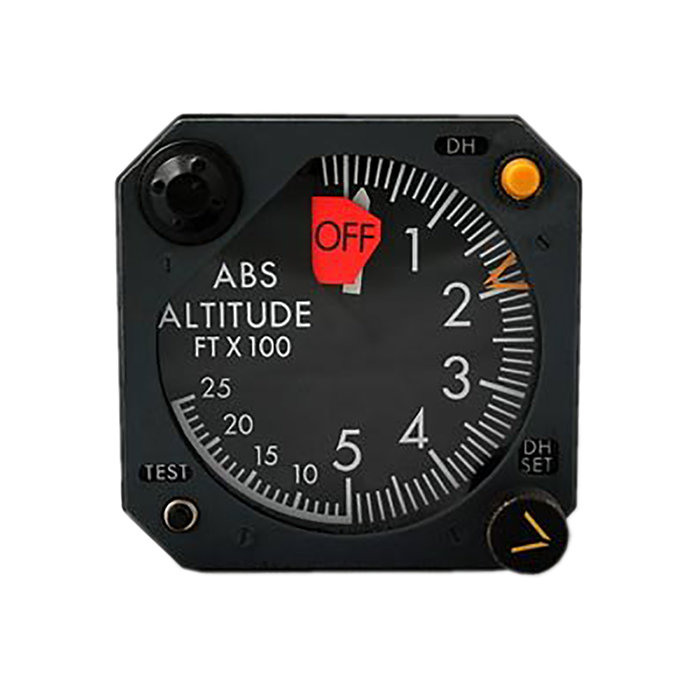

Honeywell - Radio Altimeter Indicator
product image
Part Number :
Bendix logo

RA-215
FEATURES
  • Radio altimeter indicator used in AA-200 Series Radio Altimeter System
  • Meter movement pointers
  • Competely interchangeable, physically & electrically with RA-2XX & RA-3XX indicators
  • Provides an absolute altitude display from 0 to 2500 ft, a red warning flag, an integral TEST button for confidence testing, decision height (DH) selection knob, and a DH warning annunciator
  • Once the aircraft has flown above the usable range of the indicator, the needle hides behind the mask and the OFF flag remains out of view
  • If a failure occurs at any time, the OFF flag appears
  • If the aircraft is less than the preselected DH, the DH annunciator will light



SPECIFICATIONS
Form Factor: 3" ATI, clamp mounted 4.5" long Weight: 2lbs
Operating Temperature: -15C to +55C Storage Temperature: -50C to +71C
Humidity: In excess of 95% Altitude: 15000 ft
Lighting Requirements: 28V @ 100ma max or 5V @ 250ma max Displayed Accuracy: 0-100ft: +/-5ft 100-500ft: +/-5% 500-2500ft: +/-7%
Decision Height: 0-2500ft continuous Certification: TSO C-87 Environmental Categories DCAAAX
Part NumberRadio Alimeter Indicator Description:
4014267-901 Black Bezel
4014267-903 Gray Bezel



4014267-901
- Radio Altimeter Indicator
Price Condition Delivery
CALL OR RFQ SV OUTRIGHT

SEA Repair Capabilities: Yes

4014267-903
- Radio Altimeter Indicator
Price Condition Delivery
CALL OR RFQ OH OUTRIGHT
CALL OR RFQ OH EXCHANGE

SEA Repair Capabilities: No

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.
