Model: RDR-1E

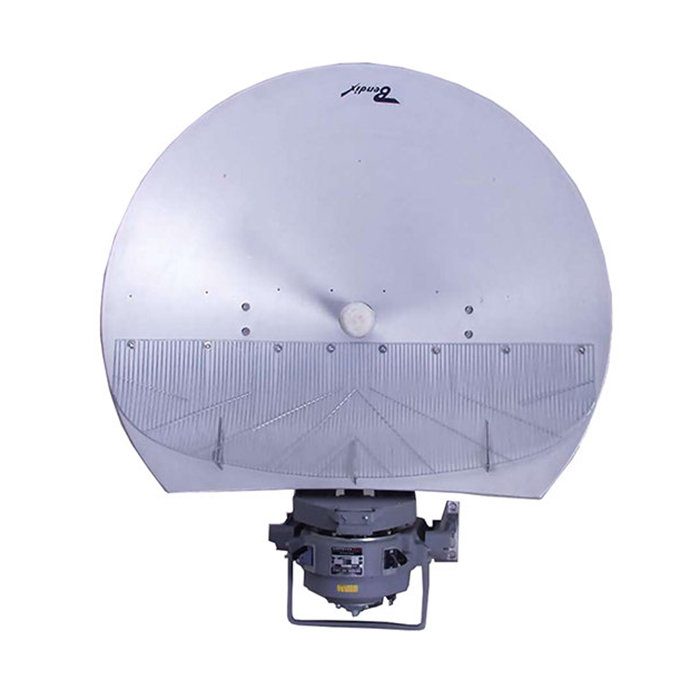

Honeywell - Radar Transceiver
product image
Part Number :

Honeywell Png 3 » PNG Image #1408432 - PNG Images - PNGio

RDR-1E



FEATURES

  • System is for a high-speed aircraft and has a range of 300 miles
  • Adjustable elevation angle (tilt) is part of the horizontal stabilization of the antenna
  • Diameter of 30 inches and uses a Cutler feed
  • The polarization is linear horizontal
  • Transmission frequency is specified (as was usual for weather radar at that time) only in the wavelength of 3.2 cm, which corresponds to 9.375 GHz
  • The electronic was transistorized, without the magnetron and the CRT



SPECIFICATIONS

PRF: 200 Hz (Pulse Repetition Frequency) Frequency: X-Band
Pulsewidth : (τ) 5.5 µs peak power: 50 kW
instrumented range: 300 NM (≙ 550 km) BEAMWIDTH:
antenna rotation: 15 min⁻¹
Part Number: Description:
2067157-0103 Radar Transceiver, X-Band Antenna
2067157-0153 Radar Transceiver, X-Band Antenna



2067157-0103
- Radar Receiver-Transmitter

NSN: 5840-00-110-6734

Price Condition Status
REQUEST OH OUTRIGHT REQUEST
2067157-0153
- Radar R/T
Price Condition Status
REQUEST REQUEST REQUEST
