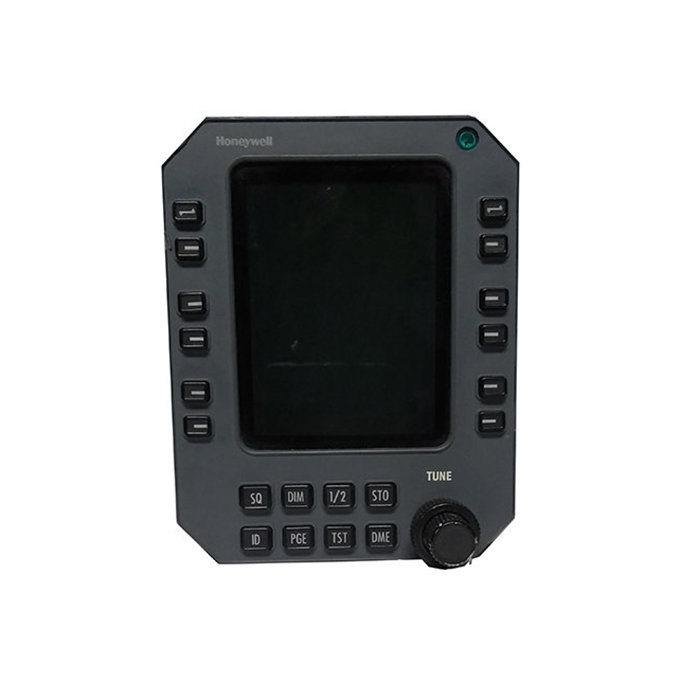

product image

Part #:

Model: RM-850

OEM:

Honeywell

Desc:

Radio Management Unit

Part Number :


RM-850
FEATURES
  • The RM-850 Radio Management Unit (RMU) is the central control unit for the entire radio system
  • RM-850 is a button labled PGE
  • Complete capability for controlling the operating mode, frequencies, and codes within all the units of the radio system
  • The capability to switch its operation from primary radio system to the cross-side system
  • RM-850 is a color cathode ray tube (CRT) based controller that can select a function by pushing a line select key adjacent to the parameter to be changed
  • Parameters can be changed by pushing the corresponding line key next to the displayed parameter and then rotating the controller tuning knob
  • RM-850 is the input to the radio system for external FMS tuning
  • Digital signals from the Flight management system come into the RM-850
  • Backup navigation data is provided to the RM-850 via the RSB from both remote NAV units, and/or via RS-422 data buses from whichever remote NAV unit is married to the CDH for emergency backup purposes
SPECIFICATIONS
Weight: 7.2 lbs height: 5.06 in
length: 11.10 in width:  4.06 in
nominal power:  +28V d, 33W  panel lighting: 5V ac/dc 0.025W





7012100-801
- Radio Management Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
7012100-805
- Radio Management Unit
Price Condition Status
$4,500.00 SV OUTRIGHT REQUEST LEAD TIME
7012100-811
- Radio Management Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
7012100-825
- Radio Management Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
7012100-826
- Radio Management Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
7012100-943
- Radio Management Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
7012100-983
- Radio Management Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
7012100-985
- Radio Management Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
