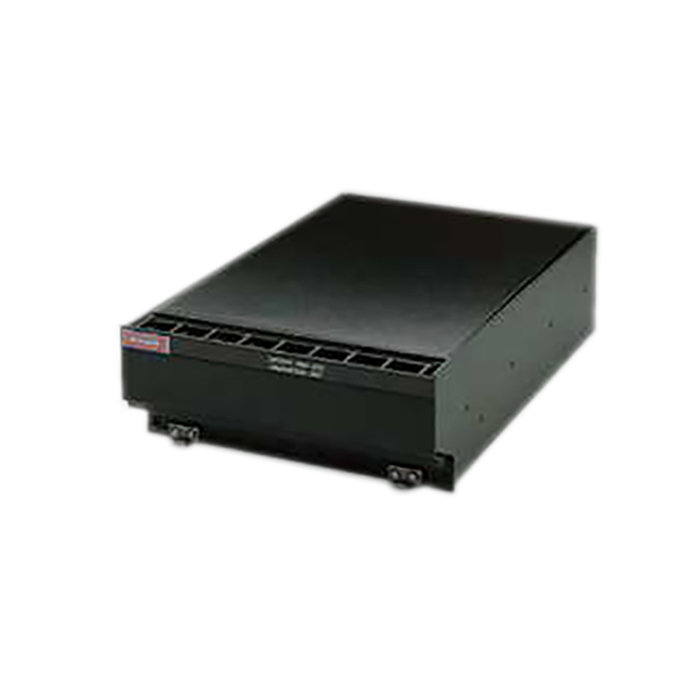

Picture of product RNZ-850B

Part #:

Model: RNZ-850B

OEM:

Honeywell

Desc:

Integrated Nav Unit

Part Number :



RNZ-850B
FEATURES
  • Integrated Navigation Unit
  • Part of the Primus II SRZ--85X Integrated Radio System
  • Contains the VOR, localizer, glideslope and marker scanning Distance Measurement Equipment (DME) module
  • Each module is self--contained within its own housing and connects to the cluster module through ribbon cable

A typical RNZ--85X Integrated Navigation Unit contains the modules that follow:

  • NV-850 NAV Receiver Module
  • DM-850 DME Interrogator Module
  • XN-850 NAV Cluster Module (RSB and Digitized Audio Interface)



GENERAL SPECIFICATIONS
Dimensions: 14.01" L x 8.90" W x 3.38" H Weight: 11.9 lbs
Power Requirements: 28 V dc, 55 Watts (nominal), 26 V, 400 Hz, 0.026 VA (maximum) TSO: C34d, C35d, C36d, C40b, C66b
Environmental: DO--160B Environmental Category /A2E1/B/JLMY/E1XXXXXZ/BZ/AZZ Operation Temperature: -55 to +70 degrees C
Altitude: 70,000 feet Decompression: 8,000 to 70,000 feet
Overpressure: -15,000 feet Vibration JLMY: Category J - Fuselage mount, fixed wing--turbojet, subsonic, and supersonic Category L - Fuselage mount, fixed wing--reciprocating and turbopropeller, multi--engine over 12,500 pounds Category M - Fuselage mount, fixed wing--reciprocating and turbopropeller, multi and single engine less than 12,500 pounds Category Y - Fuselage mount, helicopter, reciprocating, and turbojet engine
Mounting: P/N 7510124-910 (1/2" mounting screws) or 7510124-911 (3/4" mounting screws) Tuning and Data Bus  Radio System Bus (RSB)
Digital Audio Output Buses: 2



NV-850 NAV MODULE
Power Requirements: 28 V dc, 33 Watts nominal, 50 Watts at full rated loads and 26 V, 400 Hz, 0.026 Watts VOR Specifications: Frequency Range - 108.00 to 117.95 MHz Channel Spacing - 50 kHz Frequency Stability - 0.0025% VOR Bearing Accuracy (Digital) - ±0.75 degree Sensitivity (Aural) - Minimum: -100 dBm for 10 dB (S + N) / N  / Typical: -103 dBm for 10 dB (S + N) / N Sensitivity (Flag) - Minimum: -105 dBm for valid flag / Typical: -107 dBm for valid flag Selectivity - 6 dB at ± 15 kHz Minimum / 60 dB at ± 41 kHz Maximum Spurious Response - -80 dB Audio Output - 100 mW into 600 ohms
Localizer Specifications: Frequency Range - 108.10 to 111.95 MHz Channel Spacing - 50 kHz Deviation Centering - ± 0.0026 ddm Polarity - Positive ddm for 90 Hz > 150 Hz (Aircraft left of LOC Course) Sensitivity (Aural) - Minimum: -100 dBm for 10 dB (S + N) / N  / Typical: -103 dBm for 10 dB (S + N) / N Sensitivity (Flag) - Minimum: --105 dBm for valid flag / Typical: -107 dBm for valid flag Selectivity - 6 dB at ± 15 kHz minimum, 60 dB at ± 41 kHz maximum Spurious Response - -80 dB Audio Output - 100 MW into 600 ohms minimum Glideslope Specifications: Frequency Range - 329.15 to 335.00 MHz Channel Spacing - 150 kHz Deviation Centering - ±0.0058 ddm Polarity - Negative ddm for 90 Hz > 150 Hz (Aircraft above GS Course) Sensitivity (Flag) - Minimum: -99 dBm for valid flag / Typical: -102 dBm for valid flag Selectivity - 6 dB at ± 25.5 kHz minimum / 60 dB at ± 120 kHz maximum Spurious Response - -60 dB
Marker Beacon Specifications: Frequency - 75.0 MHz Sensitivity - Two preset levels adjustable between -61 dBm and -34 dBm. Normal factory settings are -61 dBm ± 6 dB for High Sense Mode and -47 dBm ± 6 dB for Lo Sense Mode Selectivity - 6 dB at ± 13 kHz minimum / 60 dB at ± 100 kHz maximum AGC Characteristics - Less than 9 dB variation in audio output level as RF input is varied from lamp threshold to -13 dBm Audio Output - 50 mW into 600 ohms minimum  Interfaces: NAV Data Output - RS-422 (GAMA CSDB 523--0772774), address 20, 21, 22 ILS Mode - Sinks up to 100 mA maximum with less than +3.0 V output level; +80 V dc maximum level VOR/LOC Audio - 100 mW minimum with -53 dBm RF input 30% modulated by 1000 Hz into a 600-ohm load impedance RNAV Video Signal - Accuracy is ±0.5 degree; nominally 0.5 Vrms of 9960 Hz and 30 Hz with -53 dBm RF input. The output has a -5 V dc offset (RNZ-850 units) or, +5 V dc offset (RNZ--851 units). The output impedance is 1k ohms Course Deviation Loads - Up to five 1k--ohm loads, 150 mA full scale (10°) VOR/LOC Super Flag - 26 V dc nominal, up to 0.25 amperes VOR/LOC Flag Loads - Up to five 1k--ohm loads TO/FROM Loads - Up to three 200-ohm loads RMI - Sine/Cosine OBI output; XYZ (11.8 V peak) two loads maximum Glideslope Deviation Loads - Up to five 1k-ohm loads; 150 uA full--scale deflection. Glideslope Flag Loads - Up to five 1k-ohm loads Glideslope Super Flag - 26 V dc nominal, up to 0.25 amperes RNAV Composite Loads - Up to four loads at 40k ohms input impedance.



DM-850 DME MODULE
Power Requirements: 28 V dc, 12 VA nominal Transmitter Output Power: Greater than 350 Watts peak, 400 Watts typical
Transmitter Stability: ±100 kHz, ± 40 kHz typical Channel Capability: 352 X, W, Y, Z Channels, MLS compatible, VOR or MLS paired
Transmitter Frequency Range: 1025 to 1150 MHz (L--Band) Receiver Frequency Range: 962 to 1213 MHz
Receiver Acquisition Sensitivity: -90 dBm minimum with station reply efficiency equal to 70% Receiver AGC Range: Minimum acquisition signal to 0 dBm
Range Accuracy: Digital - 0.05 nmi ± 0.1% of range Analog - 0.3 nmi ± 1% of range Range Capability - 0.0 to 300 nmi Range Tracking Rate - 0.0 to 1000 knots Velocity Accuracy - ±1% or ±1.0 knot Velocity Acquisition Time - Within 10% in 10 seconds Velocity Output Range - 0.0 to 999 knots Time-To-Station Capability - 0 to 999 minutes Time-To-Station Acquisition - Within 10% in 10 seconds Memory Time - 10 seconds Data Outputs: Digital - One Radio Communication Bus (RCB) output; two RS--422 outputs (GAMA CSDB 523--0772774), addresses 24, 25, 26, 27; and one ARINC 568 output Analog - 40 mV/nmi dc output, 300 nmi maximum range Audio IDENT Output - 16 V peak--to--peak (adjustable) into 600 ohms Lock-on Time - 2 seconds maximum for signals > to -83 dBm at 70% reply efficiency Power Output - 350 Watts minimum Suppression Pulse - Bidirectional, accepts +18 to +70 volt pulse input, provides a +28 volt nominal output Suppression Load - 300 to 2000 ohms with no more than 1850 pF shunt capacitance



Part Number: Description:
7510100-903 Original TSO release, Integrated Nav Unit
7510100-913 -903 with MLS compatibility added, Integrated Nav Unit
7510100-923 -913 with improved VOR/ILS receiver and IAC RSB compatible cluster, Integrated Nav Unit
7510100-933 -923 with VOR/ILS FM immunity improvements, Integrated Nav Unit
7510100-703 -903 with improved ILS approach, Integrated Nav Unit
7510100-713 -913 with improved ILS approach, Integrated Nav Unit
7510100-723 -923 with improved ILS approach, Integrated Nav Unit
7510100-733 -933 with improved ILS approach, Integrated Nav Unit



28 V dc, 55 Watts (nominal), 26 V, 400 Hz, 0.026 VA (maximum)
C34d, C35d, C36d, C40b, C66b
7510100-703
- Navigation Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
7510100-713
- Navigation Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
7510100-714
- Navigation Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
7510100-723
- Navigation Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
7510100-733
- Integrated Nav Unit
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
7510100-903
- Navigation Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
7510100-923
- Navigation Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
7510100-934
- Navigation Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
