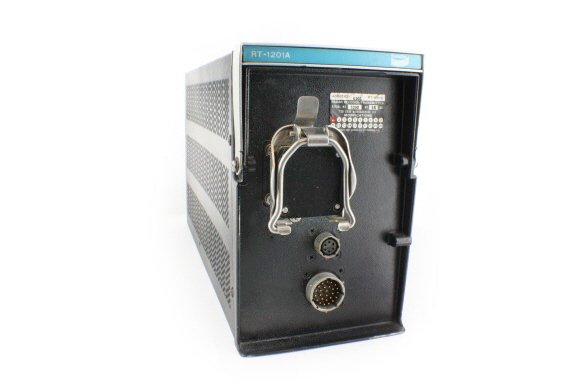

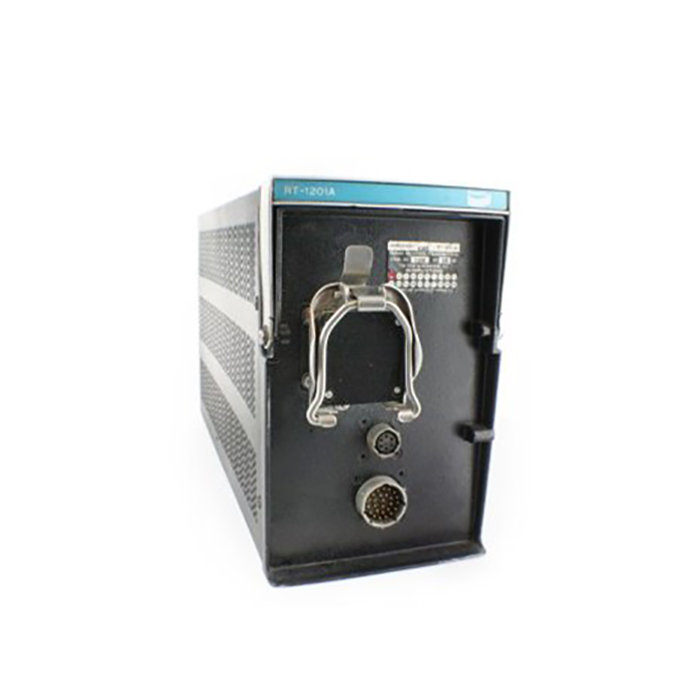

Part #: 4000502-0101

Model: RT-1201A






Radar Transceiver

Part Number :

  • Bendix Radar Receiver Transmitter used in various Bendix 3-piece color and monochrome radar systems
  • 10 kw peak power (typical)
  • Can be mounted vertically or horizontally
  • Pitch and roll gyro stabilization compatible
  • Solid-state



RF Power Output: 10 kW peak power Frequency: (X-Band) 9345 MHz +-30 MHz
Pulse Width: 3.5 usec Weight: 15.0 lbs.
Dimensions: 5.06"W x 7.87"H x 13.80"L TSO: C63b DO-138 Env. Cat. AAJAAAXXXXXX
Part Number: Description:
4000502-0101 Radar Transceiver


- Radar Transceiver

NSN: 5841-01-007-2213

Price Condition Status

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact

In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

As part of our promise to provide the most honest, quality service to our customers, Southeast Aerospace adheres to strict guidelines for certification according to the FAA and Original Equipment Manufacturers (OEM). While most avionics components do not include a prescribed overhaul procedure in the Maintenance Manual, the FAA has set forth guidelines for the cleaning and inspecting of components as referenced in FAR Part 43.2. Therefore, if a component cannot meet the standards of this Federal Air Regulation in relation to inspection criteria and cleaning potential then it should not be deemed as Overhauled. Southeast Aerospace does not believe in simply providing words on a tag or maintenance release to represent the condition of a component. SEA stands behind the work and service followed through with each and every FAA 8130-3 maintenance release it provides.
The IN-132A, IN-152A, IN-1102A, IN-1202A, IN-1202B monochrome and IN-232A, IN-2021A, IN-2026A, IN-2027A, IN-2028A color indicators are compatible with the RT-1201A. Please note that some system performance variations may occur if different antenna arrays are utilized in systems.
Weather radar transceivers use a magnetron which is basically a cathode emission device. The magnetron is subject to deteriorization due to aging. Therefore, it is recommended to perform some type of periodic maintenance to detect and correct the effects of aging. This reduces the chance of an in-service failure.

An annual, routine test of the following parameters should made:

- Power output
- Transmitter frequency
- AFC voltage
- Sensitivity (MDS)

Ideally, the test should take place between December and March prior to the peak thunderstorm season.
