Part #:

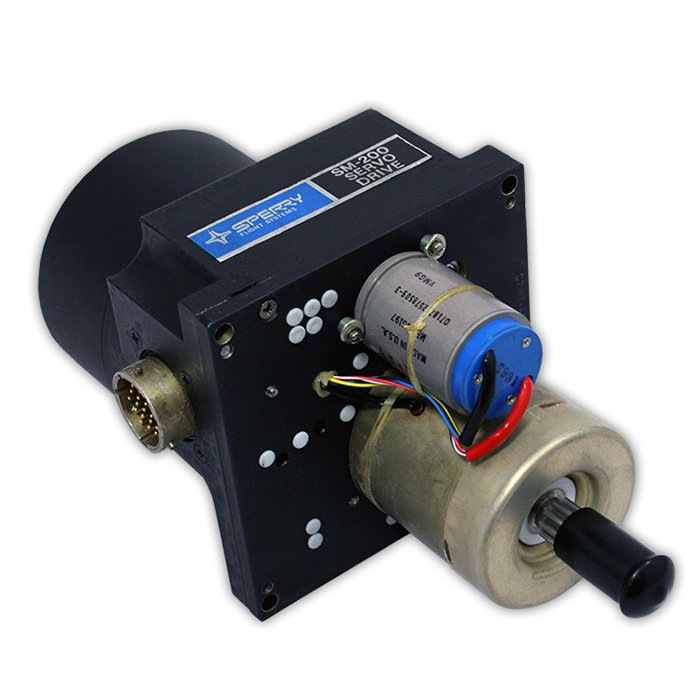

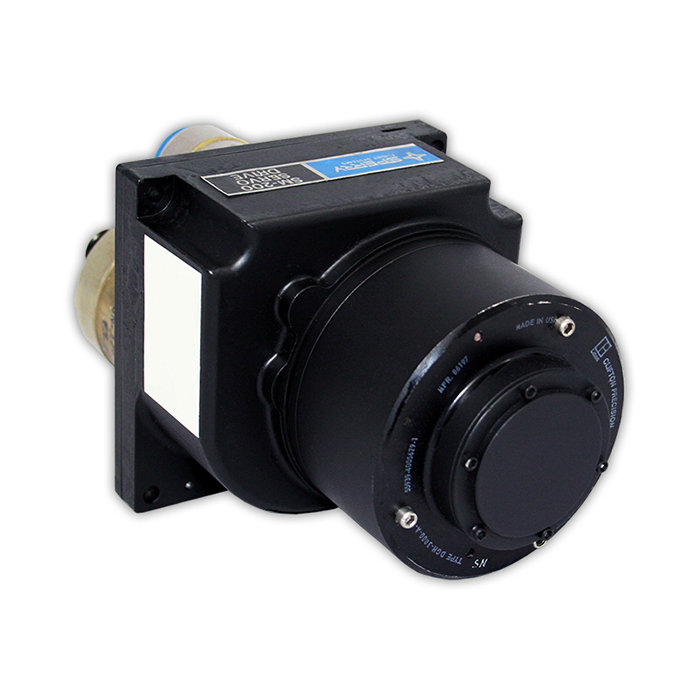

Model: SM-200A

Honeywell - Servo Drive
product image
product image
product image
Part Number :


SM-200A
FEATURES
  • Used to drive aircraft control sufaces - rudder, aileron, elevator
  • Color is flat black



SPECIFICATIONS
Dimensions: 7.55" L x 3.75" W x 3.80" H Weight: Without Mod D: 5.1 lbs With Mod D: 4.4 lbs
Input Voltage: 28 VDC Input Watts: Motor-Tech: 38W Synchro - 0.96 VA Clutch: 21W
Part Number Servo Drive Description:
4006719-903 see details above
4006719-904 see details above
4006719-906 see details above
4006719-908 see details above
4006719-910 see details above
4006719-952 see details above
4006719-954 see details above



Motor-Tech: 38W Synchro - 0.96 VA Clutch: 21W
4006719-903
- Servo Drive
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT

SEA Repair Capabilities: No

4006719-904
- Servo
Price Condition Delivery
$4,250.00 SV OUTRIGHT
$2,250.00 SV EXCHANGE

SEA Repair Capabilities: No

4006719-906
- Servo Drive

NSN: 6615-01-141-6344

Price Condition Delivery
CALL OR RFQ OH OUTRIGHT
CALL OR RFQ OH EXCHANGE

SEA Repair Capabilities: No

4006719-908
- Servo Drive
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT

SEA Repair Capabilities: No

4006719-910
- Servo Motor

NSN: 6615-01-141-6345

Price Condition Delivery
CALL OR RFQ OH OUTRIGHT

SEA Repair Capabilities: No

4006719-921
- Servo Drive
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

4006719-923
- Servo Drive
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

4006719-942
- Servo Drive
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

4006719-948
- Servo Drive
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT

SEA Repair Capabilities: No

4006719-952
- Servo Drive
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT

SEA Repair Capabilities: No

4006719-954
- Servo Drive
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT

SEA Repair Capabilities: No

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.
