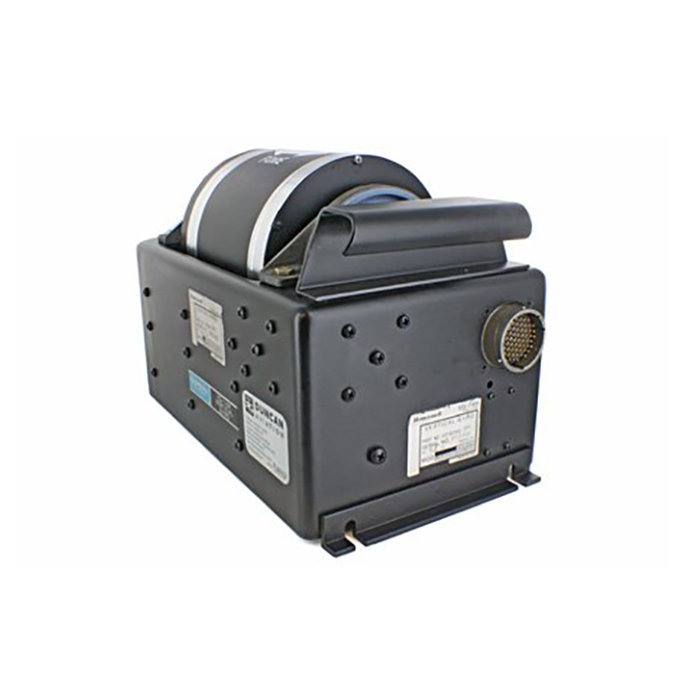

VG-14H 4019286-901

Honeywell - Vertical Gyro
Part Number :


VG-14H
FEATURES
  • Provides three-wire synchro output signals that are electrical analogs of the aircraft pitch and roll attitudes
  • Three-wire output signals used to drive flight instruments
  • Two-wire transformer isolated pitch and roll output signals can be used to supply attitude reference information for flight director, Helipilot, and radar stabilization
  • Gyro roll freedom is unlimited (+- 360 degrees)
  • Pitch gimbal freedom is +- 85 degrees
  • Gyro verticality is maintained by gravity-sensing accelerometers and torque motors
SPECIFICATIONS
Dimensions: 10.4"L x 6.53"W x 7.63"H (shock mounts extended) Weight: 9.4 lbs.
Power (Start): 115V, 400Hz, 80VA Power (Operate): 115V, 400Hz, 40VA
Rotor Speed: 22000 RPM Erection Time: 3 min
Verticality Error: 0.25 deg
Part NumberVertical Gyro Description:
4019286-901 Standard version, see details above
4019286-902 With additional three-wire inverted synchro output, see above



4019286-901
- Vertical Gyro

NSN: 6615-01-329-9596

Price Condition Delivery
$6,750.00 OH OUTRIGHT IN STOCK
$2,250.00 OH EXCHANGE IN STOCK

SEA Repair Capabilities: No

4019286-902
- Vertical Gyro
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

4019286-903
- Vertical Gyro
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com

Southeast Aerospace exchanges are based on the return of an undamaged, economically repairable core unit with identical part number as the unit shipped to the customer. An "economically repairable" core is defined as one where the cost to repair/overhaul (or Repair Cap) does not exceed 80% of the original SV/OH exchange price billed. Should the Repair Cap exceed 80%, the customer will be billed the additional amount. In the event this amount exceeds the Outright Price for the unit, the customer would only be billed the difference between the Outright Price and SV/OH Exchange Price with the core returned as-is to the customer.

Here is an example of such a transaction:

$1000 Exchange Price charged to customer
$1000 x .8 = $800 Maximum Allowable core repair charge or Repair Cap

$2000 Cost to repair core unit
- $800 Less Core repair cap
---------
$1200 Additional billing amount.

2200.00 Total Cost of transaction

Please Note:
SEA offers exchange on new items as well. However, repair cap as indicated above is still based on SV/OH exchange price.
