Part #:

Model: WI-880

OEM:

Honeywell

Desc:

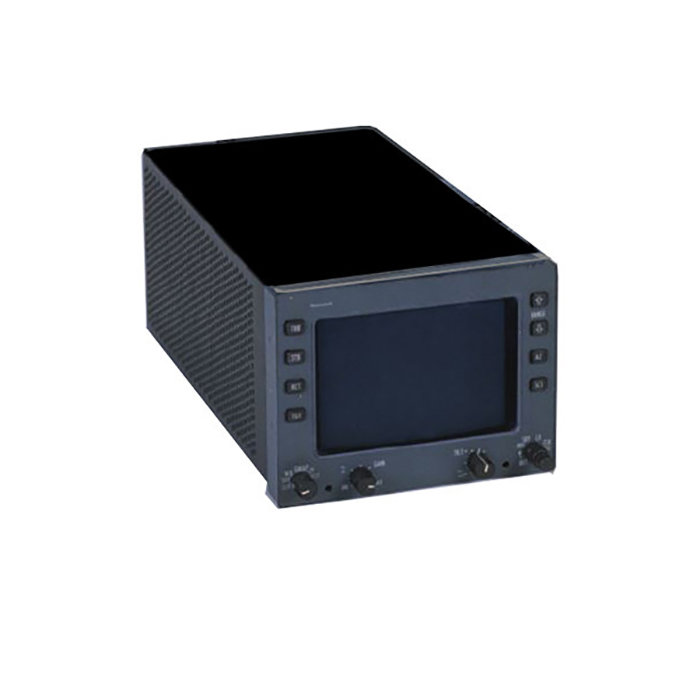

Radar Indicator

Part Number :


WI-880
FEATURES
  • Radar Indicator used with the Primus-880 digital weather radar system
  • Similar to WI-650 but includes turbulence display
  • Contains a complete set of system operating controls and is used in systems without controllers (i.e. WC-660 )
  • Available with gray or black bezel (see table below)
  • Available with or without control for Honeywell LSZ-850 and LSZ-860 Lightning Sensor System (LSS) (see table below)
  • Front panel lighting of 5 volt AC/DC or 27.5 volt DC is determined by wiring to the indicator

UDI port is supplied for displaying checklist, nav data and/or lightning information

  • 2.5, 5, 10, 25, 50, 100, 200, and 300 NM full scale WX/MAP display range
  • 2.5, 5, 10, 25, 50, 100, 200, 300, 500, and 1000 NM full scale flight plan display range
  • 5, 10, 25, 50 nm turbulence mode display range
  • Indicator Controls: Range (Up/Down), AZ, SCT Sector Scan, BRT Brightness, TILT/PULL ACT, GAIN/PULL VAR, Mode (OFF-SBY-WX-FP-TST), STAB, TRB, RCT, TGT Alert, LSS (-401,-402, -411, 412 versions)
  • 4.83" Height, 6.27" Width, 13.15" Length



SPECIFICATIONS
Weight: 12.5 lbs. (5.7 kg) Operating Voltage: 28VDC nominal (22-32 max)
Power Consumption: 36 watts max Current: 1.3A nominal (1.7A max)
Panel Illumination: 28VDC, 0.200 A, nominal or 5 V ac/dc, 0.750A nominal TSO: C63C Class 7 (DO-173), DO-160B Env. Cat. B1A/PKS/XXXXXXAAAAA
Part Number Radar Indicator Description:
7007700-401 Gray bezel, LSS Control
7007700-402 Black bezel,LSS Control
7007700-403 Gray bezel, No LSS Control
7007700-404 Black bezel, No LSS Control



7007700-401
- Radar Indicator
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
7007700-402
- Radar Indicator
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
7007700-411
- Radar Indicator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
7007700-412
- Radar Indicator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
7007700-413
- Radar Indicator
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
7007700-414
- Radar Indicator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
